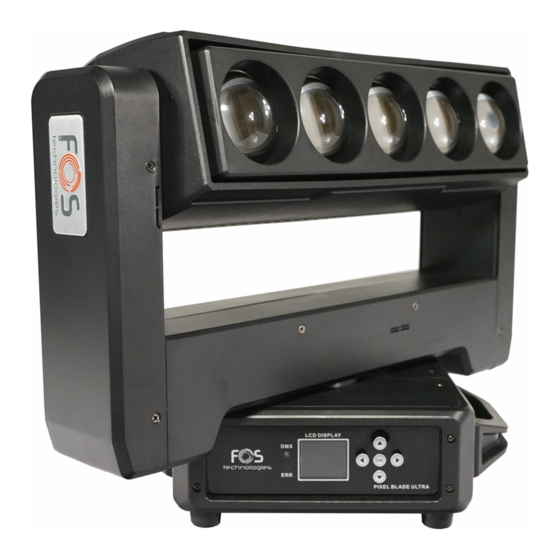

FOS Pixel Blade Ultra
This manual contains important information.
Please read before operating fixture.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pixel Blade Ultra and is the answer not in the manual?

Questions and answers

Related Manuals for FOS Technologies Pixel Blade Ultra

Summary of Contents for FOS Technologies Pixel Blade Ultra

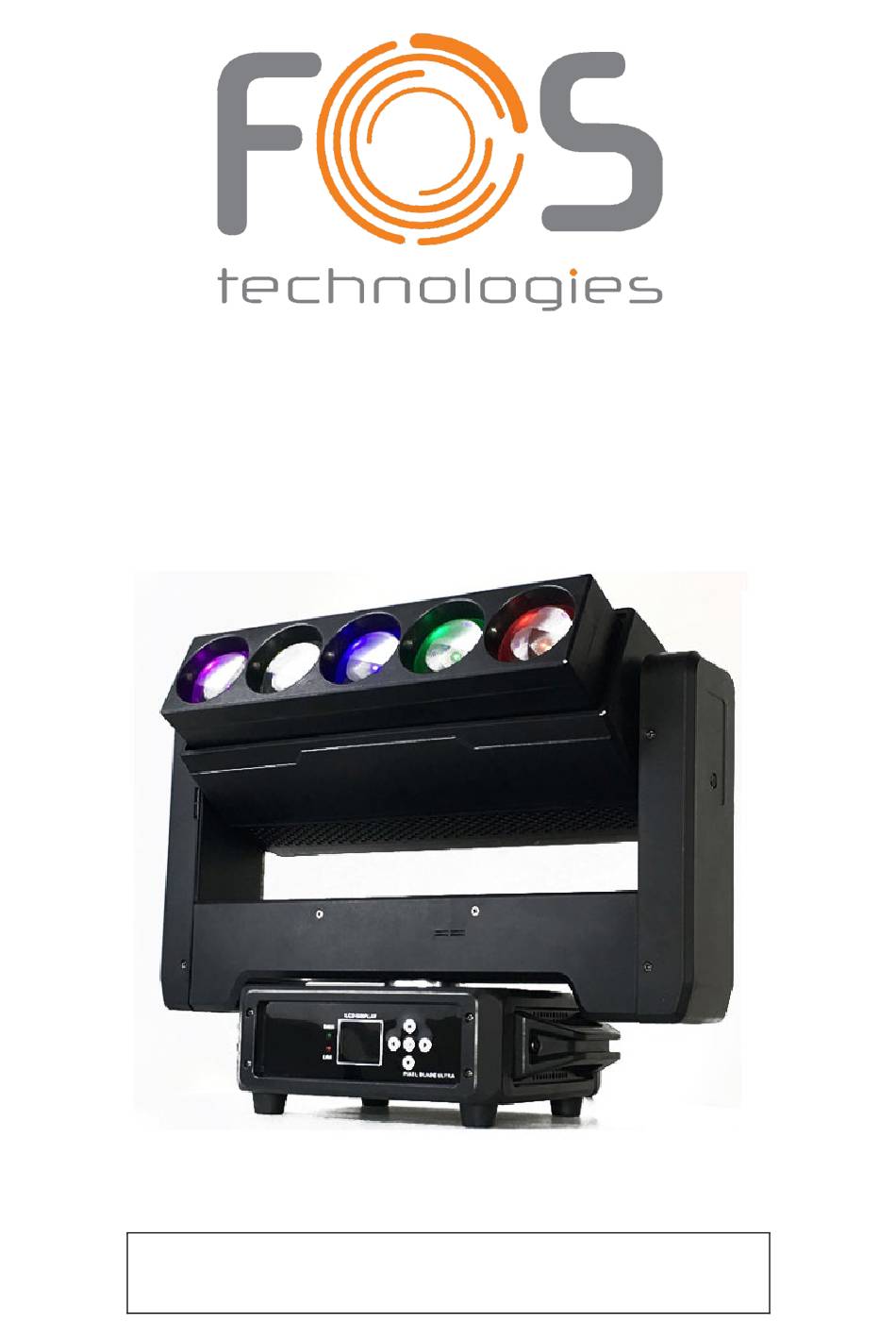

  • Page 1 FOS Pixel Blade Ultra This manual contains important information. Please read before operating fixture.

  • Page 2: Security Tips

    1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:  non-professionals, not to disassemble the light arbitrarily and lighting accessories inside.  rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected).
  • Page 3 2 TECHNOLOGY REFERENCE Input voltage range: 100-240 V, 50/60 Hz Power consumption: 500W LED Source: Front: 5x 60W RGBW 4in1 LED; Back :42x 3W White LED + 84x 0.3W RGB 3in1 LED LED Control Feature: Front side: 5pcs RGBW LED each Pixel control; Back side: 14 sections pixel control, each section 9pcs led.

  • Page 4: Dmx Channel Sheet

    TEST Display Signal Keep Slave English 否 INFO Version V1.11 000-255 Tilt 000-255 MANUAL …… …… …… …… Strobe 000-255 RESET 4 DMX CHANNEL SHEET 24CH 24CH Function DMX value Describe 0-255 Pan movement Pan fine 0-255 Pan fine Tilt 0-255 Tilt movement Tilt fine...
  • Page 5 24CH Function DMX value Describe 0-19 No function Strobe 20-255 Strobe from slow to fast 0-255 Red color 0-100% Green 0-255 Green color 0-100% Blue 0-255 Blue color 0-100% White 0-255 White color 0-100% 0-10 No Function Background Color 11-255 Background color select Background color Background color dimmer from...
  • Page 6 24CH Function DMX value Describe 161-175 Red+Green+White 176-190 Red+Blue+White 191-205 Green+Blue+White 206-255 Red+Green+Blue+White Back side 0-10 No function Background color 11-255 Background color select select Back side Back side Background color Background color 0-255 Dimmer from dark to bright Dimmer 0-10 No function 11-20...
  • Page 7 29CH Function DMX value Describe Tilt infinite rotation 0-255 Tilt infinite rotation Total dimmer 0-255 Total dimmer from dark to bright 0-19 No function Strobe 20-255 Strobe from slow to fast 0-255 Red color 0-100% Green 0-255 Green color 0-100% Blue 0-255 Blue color 0-100%...
  • Page 8 29CH Function DMX value Describe Back side Back side Background color Background color 0-255 Dimmer from dark to bright Dimmer 0-10 No function 11-20 Show 1 Back side Show …… …… 241-250 Show 24 251-255 Show 1-24 Back side show Back side show speed from fast 0-255 speed...
  • Page 9 105CH Function DMX value Describe Blue 0-255 Blue color 0-100% White 0-255 White color 0-100% 0-10 No Function Background Color 11-255 Background color select Background color Background color dimmer from 0-255 dimmer dark to bright 0-10 No Function 11-20 Show 1 Show ……...
  • Page 10 105CH Function DMX value Describe 241-250 Show 24 251-255 Show 1-24 Back side show Back side show speed from fast 0-255 speed to slow 0-244 No function Reset 245-255 Reset Red 1 0-255 Red 1 color 0-100% Green1 0-255 Green 1 color 0-100% ……...

  • Page 11: Fixed Equipment

    5 FIXED EQUIPMENT Please fasten the fixture clamp before hanging. The clamp can be fastened by the little hole in the middle of the bracket, then tie with a safety belt. The loading capacity of the safety belt should be 10 times than the weight of the fixture itself.

  • Page 12: Maintenance

    7 Maintenance Problems Check list Trouble Shooting The fixture 1. If your power as same as the input 1. Make sure the voltage. does not work of the machine. 2. Replace the same fuse. 2. If the fuse was broken. LED dimmed If your power us same as the input Make sure the voltage...
  • Page 13  Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
