Summary of Contents for FOS Technologies PAR COB 200W LED TW

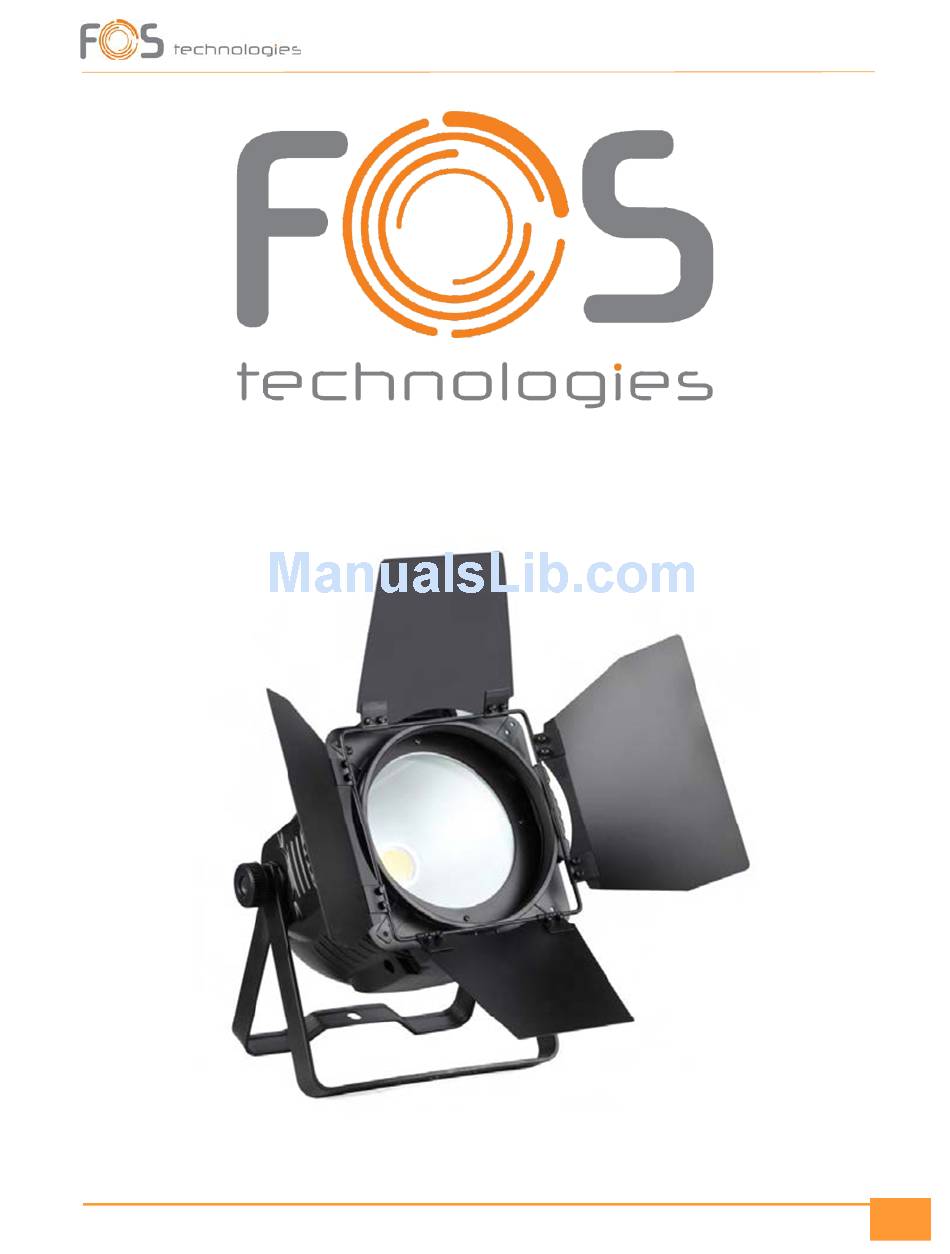

  • Page 1 FOS PAR COB 200W LED TW...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 90/250 Volt AC, 50/60 Hz. Power Consumption: 260 Watt. Light Source: COB LED 200 Watt, Cool and Warm White. Beam Angle: 60° Color Rendering Index: Ra≥90 Control: Auto, Music, DMX512, Master Slave. DMX Channels: Six modes with different layout for 2, 4 and 6 control channels. Protection Class: IP20 (suitable for indoor use only) Width: 290 mm Depth: 260 mm...
  • Page 3 PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. The first number characterizes the protection against harmful effects of solids, the second is rating the water protection.
  • Page 4 Up / Down buttons you’re moving through the sub menu’s options, with Enter, you are confirming your choice. The PAR COB 200W LED TW offers the following options: A001: Set the DMX address for the 4-channel control mode.
  • Page 5 o000: Dimmer for Cold Led (From 0 to 255). Channel Modes 2 Channels b2CH 1. Warm: linear dimming from 0 to 100% 2. Cold: linear dimming from 0 to 100% 2 Channels A2CH 1. Both Warm & Cold 0 – 255 linear dimming from 0 to 100%. 2.
  • Page 6 1. Master Dimmer: linear dimming to both colors from 0 to 100 %. 2. Warm: linear dimming from 0 to 100%. 3. Cold: linear dimming from 0 to 100%. 4. Strobe: • 0 – 4 Shutter Open 5 – 255 Gradual Strobe from slow to fast. •...

  • Page 7: General Information

    General Information Replacing a fuse: Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse, with the same type and rating. A fuse with different rating, can damage the fixture in case of failure. Risk of electric shock and / or fire: The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
