Page 1: User Manual

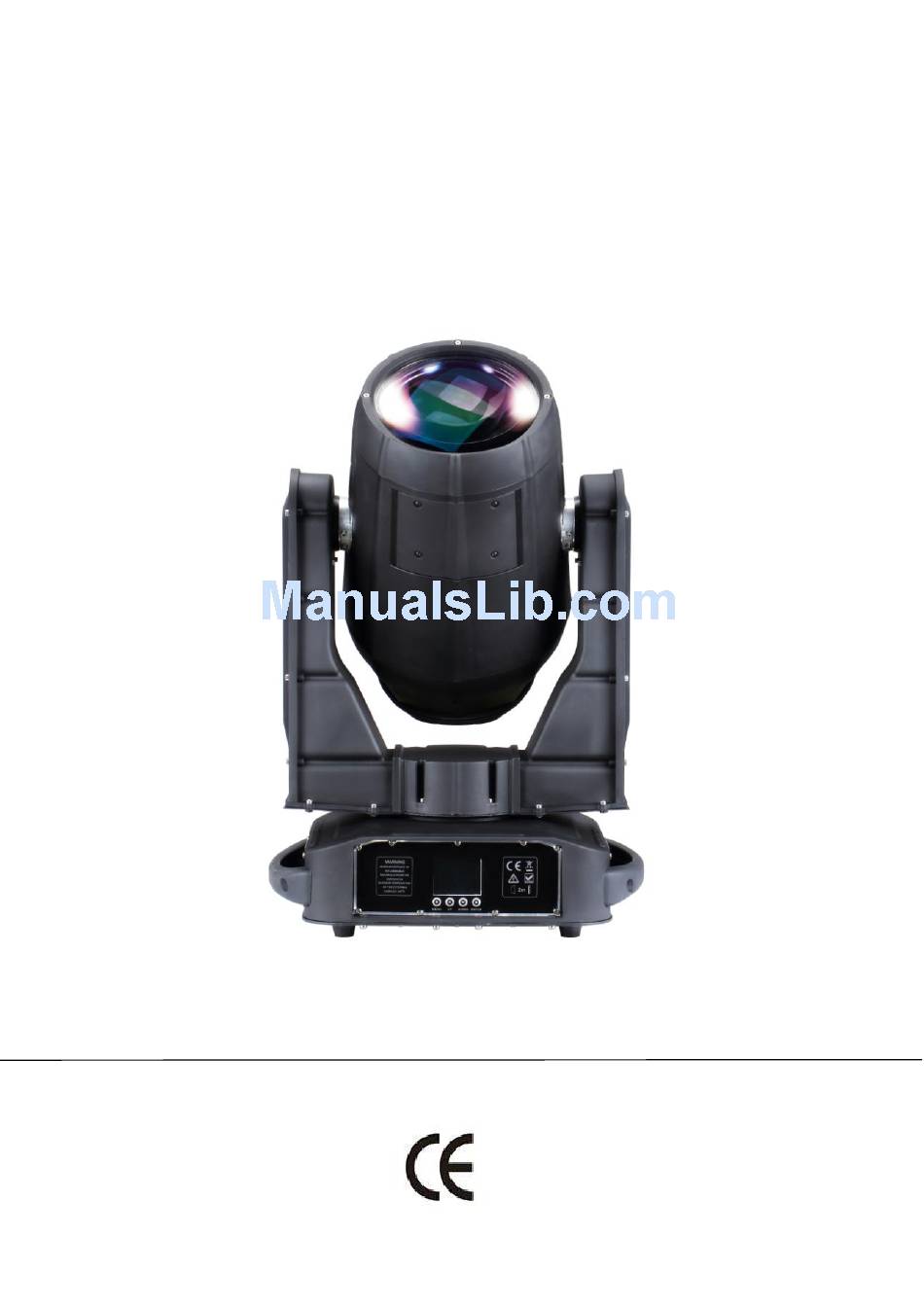

FOS Beam IP USER MANUAL Thanks for choosing our goods please read this manual carefully before your operating and keep this manual for future needs... -
Page 2: Table Of Contents
CATALOG 1、Attachment and body size ________________________________________________ 3 2、Installation and connecting _______________________________________________ 4 3、Safety Instructions _______________________________________________________ 6 4、Specifications ____________________________________________________________ 7 5、DMX channel _____________________________________________________________ 8 6、Cleaning and maintenances _____________________________________________ 11 7、Troubleshooting _________________________________________________________ 12 8、MAINTENANCE __________________________________________________________ 12... -
Page 3: Attachment And Body Size
1、Attachment and body size Body size... -
Page 4: Installation And Connecting
2、Installation and connecting The projector can be installed on the floor resting on special rubber feet ,on the truss or the wall. WARNING :With the exception of then the projector is positioned on the floor,the safety cable must be fitted. This must be securely fixed to the support of the projector and then connected to the fixing point at the center of the base. -
Page 5: Color
In DM X Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DM X terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. Th e DMX terminator is simply an XLR connector with a 90 - 12 0Ω (ohm) 1/4 watt res is to r connected across pins 2 and 3 o f a male XLR connector (DATA+ and DATA-). -
Page 6: Safety Instructions
3、Safety Instructions ★ This product guide contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. ★ When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. -
Page 7: Specifications
4、Specifications Voltage:AC90-245V 50-60Hz Lamp：YODN SIRIUS HRI 350W/440W Ballast：YODN MSD R17/S20 Power:500W/600W Average lifespan:1500-2000 hours Focus ：linear electronic focus Lamp temperature： 7500K IP Rate：IP55 Dimmer ：Super smooth dimmer Color temperature：2500K、3200K （special order） Strobe ：Independent strobe, 0.5 to 20 times/ seconds Color wheel：11 color filter wheel（can order with CMY) Beam angle:2°... -
Page 8: Dmx Channel
5、DMX channel Channel Value Function 0-255 0-100% PAN-FINE 0-255 ±1% TILT 0-255 0-100% TILT-FINE 0-255 ±1% Pan/Tilt SPEED 0-255 Fast -> Slow DIMMER 0-255 0-100% STROBE Close Strobe，Slow -> Fast 4-103 104-107 Open 108-207 Pulse: Slow -> Fast 208-212 Open 213-225 Random: Slow 226-238... - Page 9 15-19 Color 3 20-24 Color 4 25-29 Color 5 30-34 Color 6 35-39 Color 7 40-44 Color 8 45-49 Color 9 50-54 Color 10 55-59 Color 11 60-64 Blank + Color 1 65-69 Color 1 + Color 2 70-74 Color 2 + Color 3 75-79 Color 3 + Color 4 80-84...
-
Page 10: Color
56-59 Gobo 14 60-64 Gobo 1 Shake: Slow -> Fast 65-69 Gobo 2 Shake: Slow -> Fast 70-74 Gobo 3 Shake: Slow -> Fast 75-79 Gobo 4 Shake: Slow -> Fast 80-84 Gobo 5 Shake: Slow -> Fast 85-89 Gobo 6 Shake: Slow -> Fast 90-94 Gobo 7 Shake: Slow ->... -
Page 11: Cleaning And Maintenances
FOCUS 0-255 0-100% LAMP-CONTROL 0-50 Unused 51-100 Lamp ON 101-150 Lamp OFF 151-200 Half-power 201-255 Full-power REST 0-100 Unused 101-150 Pan/Tilt Reset 151-200 Head Reset 201-255 All Reset 6、Cleaning and maintenances ☆ In order to en sure the projector could work normally.Is should be kept clean always.It is recommended that the fans and ventilation in let should be cleaned every 60days.The lens should also be regularly cleaned to maintain an optimum light output. -
Page 12: Troubleshooting
static .If find any damaged of losseness,must change the lamp or fix the lamp in order to avoid the accident. ☆The light use the strong cooling system.Is is easy for the dirty to be collected .Please do clear the hot-sak one time two weeks at least. ☆After you use the light,please check he intake place whether there are some wastepaper,please clean it up,or the windmill will break down and causing fire.
