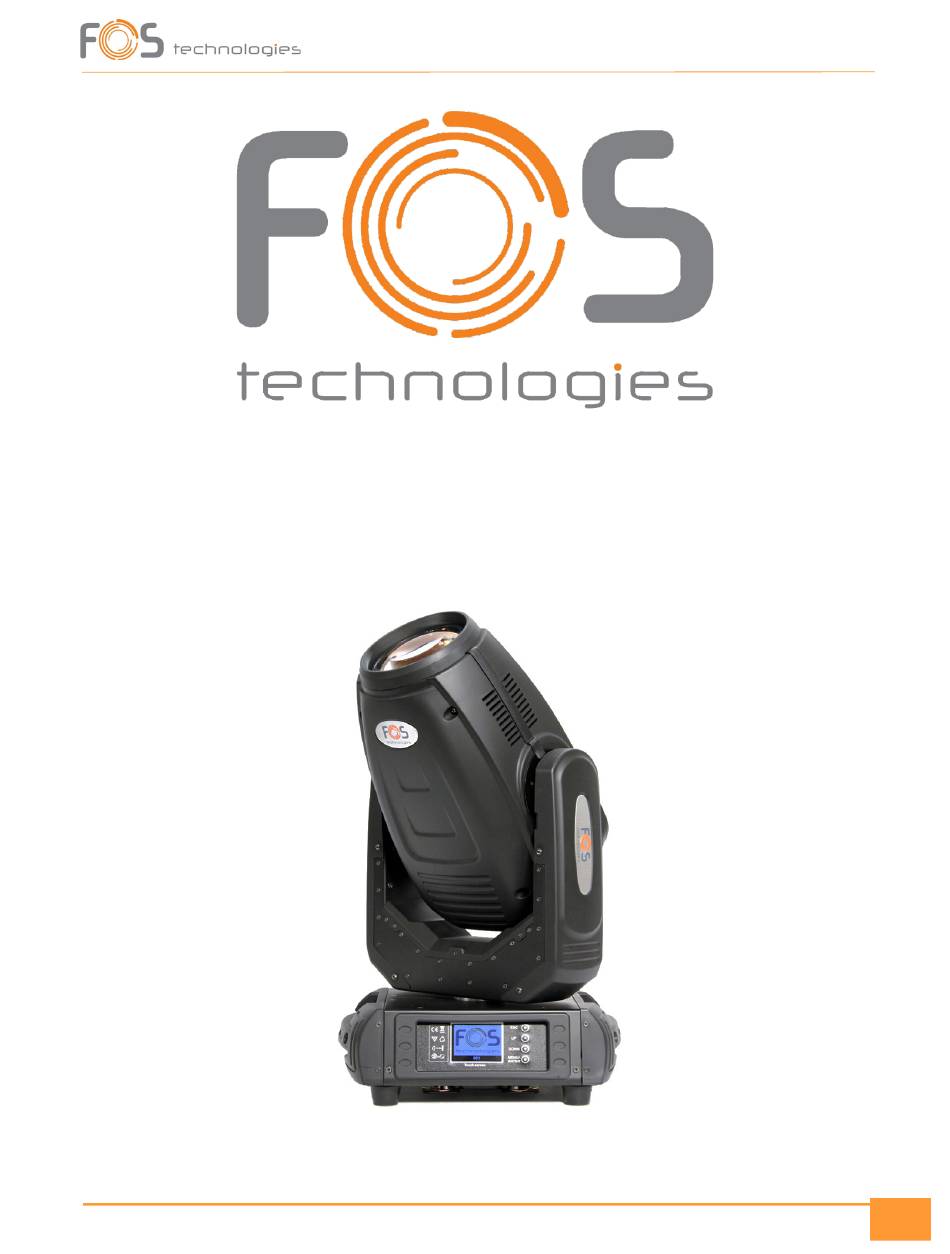

- Page 1 FOS 12R Hybrid...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATIONS Voltage: 110/240 Volt AC, 50/60 Hz. Power Consumption: 470 Watt. Light Source: 12R, 280 Watt Optical System: Beam, Spot, Wash modes, zoom range from 2,5 to 20 degrees. Mechanical Effects: 13 colors + white, 14 fixed gobos (including beam reducers), 9 rotating gobos, 2 prisms, frost filter, mechanical shutter for dimming / strobe. -
Page 3: Protection Against Solids And Water
PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. The first number characterizes the protection against harmful effects of solids, the second is rating the water protection. -
Page 4: Installation
Up / Down buttons you’re moving through the sub menu’s options, with Enter, you are confirming your choice. Other than that, the fixture has a touch screen, making the navigation much more fast and easy. The FOS 12R Hybrid offers the following options:... -
Page 5: System Info
• Auto Wireless • • ChanMode: • Stan (24 Channels) Smal (16 Channels) • X Reverse: On / Off Y Reverse: On / Off X Angle: 540 / 360 XY OCcheck: On / Off (Pan / Tilt movement Feedback) SignalClear: On / Off (activates or deactivates the default position when DMX signal is lost) Full Color: On / Off Shortcut: On / Off (activates or deactivates the disks shortest distance between the effects) Manual... -
Page 6: Display Setting
DMX Value: Shows the DMX value of all the DMX channels available on the fixture. OTHER Info: Shows hardware info of the fixture, like the firmware version of each board, temperature and running time. ERROR Info: Shows the errors, if any. Display Setting Brightness: Level 1 to 7 LightDelay: 10 / 20 / 30 / On... - Page 7 16 Channels 1. Pan 2. Tilt 3. Pan / Tilt Speed 4. Functions 0 – 19 Off • • 20 – 24 Half Power 25 – 129 No function • • 130 – 139 Lamp On 140 – 149 Pan / Tilt Reset •...
- Page 8 • 167 – 171 CTO 172 – 176 Blue • • 177 – 180 Orange 181 – 185 CTO • 186 – 189 Dewberry • 190 – 215 CW Rainbow from fast to slow • 216 – 217 Stop • •...
- Page 9 • 202 – 221 CW Gobo rainbow from fast to slow 222 – 223 Stop • • 224 – 243 CCW Gobo rainbow from slow to fast 224 – 255 Random Gobo to sound • Gobo Shake function from slow to fast 8.
- Page 10 • 178 – 185 Gobo 7 shake 186 – 193 Gobo 8 shake • • 194 – 199 Gobo 9 shake 200 – 221 CW Gobo rainbow from fast to slow • 222 – 223 Stop • 224 – 243 CCW Gobo rainbow from slow to fast •...
- Page 11 • 32 – 63 Shutter Open (Full Lamp Power) 64 – 95 Gradual strobe from slow to fast • • 96 – 127 Shutter Open 128 – 143 Gradual strobe from fast to slow • 144 – 159 Gradual strobe from slow to fast •...
- Page 12 • 86 – 94 Blue 95 – 103 Orange • • 104 – 113 CTO 114 – 122 Dewberry • 122 – 129 White • 130 – 134 Deep Red • 135 – 138 CTB • • 139 – 143 Light Yellow 144 –...
- Page 13 • 88 – 95 Gobo 1 96 – 103 Gobo 2 • • 104 – 111 Gobo 3 112 – 119 Gobo 4 • 120 – 127 Gobo 5 • 128 – 135 Gobo 6 • 136 – 143 Gobo 7 •...
- Page 14 • 56 – 59 Gobo 9 60 – 67 Gobo 1 shake • • 68 – 75 Gobo 2 shake 76 – 83 Gobo 3 shake • 84 – 91 Gobo 4 shake • 92 – 99 Gobo 5 shake •...
-
Page 15: General Information
• 168 – 175 Macro 6 (6F prism) 176 – 183 Macro 7 (6F prism) • • 184 – 191 Macro 8 (6F prism) 192 – 199 Macro 9 (6F prism) • 200 – 207 Macro 1 (8F prism) • 208 –... - Page 16 Risk of electric shock and / or fire: The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust. For cleaning use only, a moist cloth. Never use liquids or force water. After cleaning, let the fixture dry before use.
