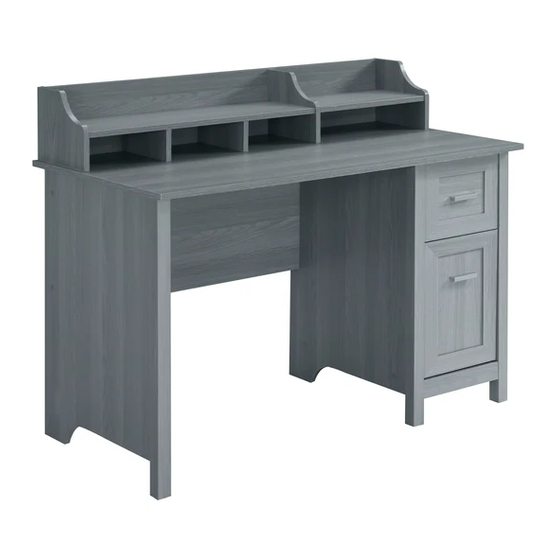

ASSEMBLY INSTRUCTIONS
Thanks for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Do not discard this manual or any of the packaging material until the
unit has been completely assembled.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-8411 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Techni Mobili RTA-8411

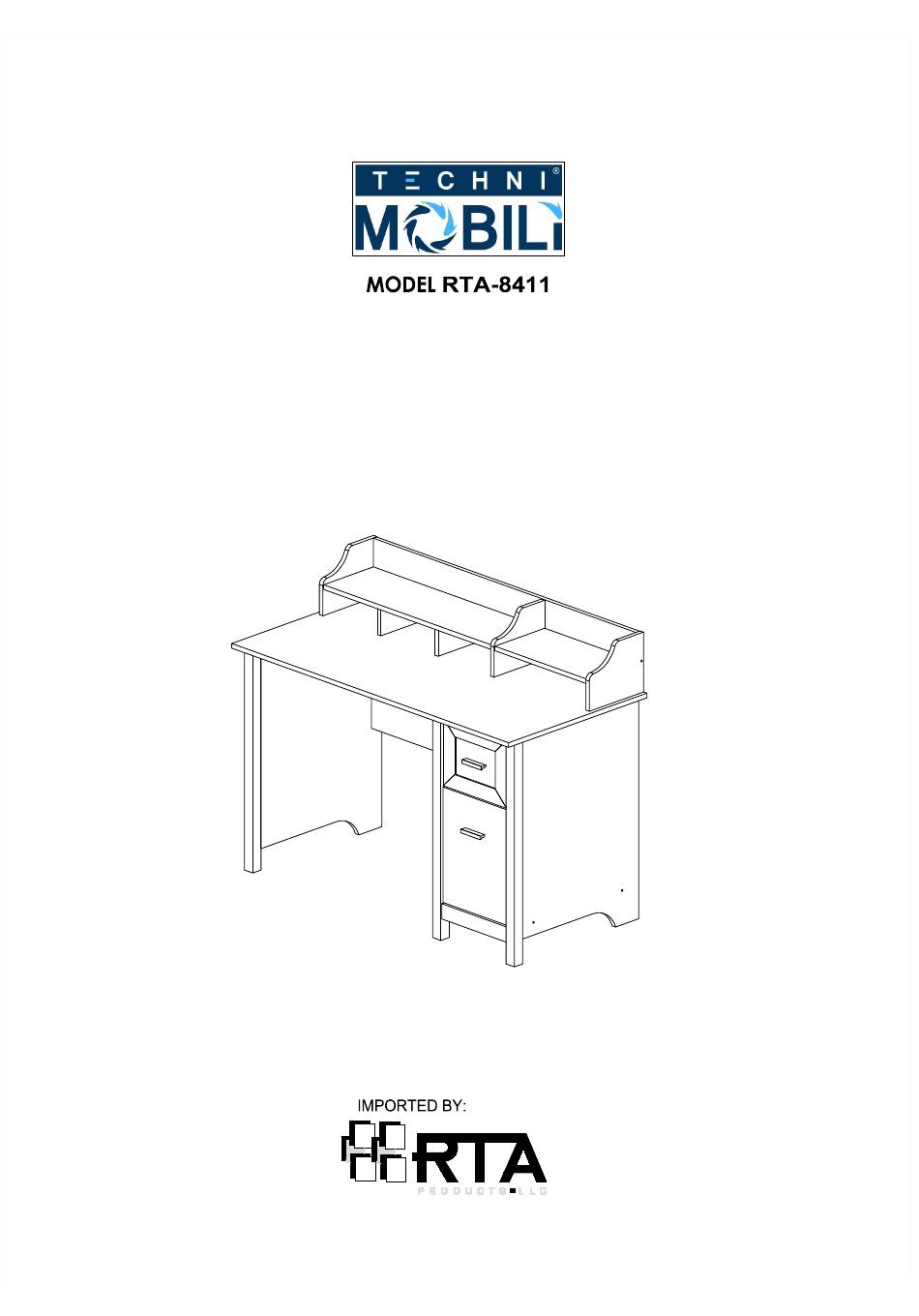

  • Page 1 ASSEMBLY INSTRUCTIONS Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Do not discard this manual or any of the packaging material until the unit has been completely assembled.
  • Page 3 Screw Caps 9Pcs PART QTY. ITEM Cable Management 1Pcs 2Pcs Long Wooden Pin (Grommet) Handle L Shape 48Pcs Short Wooden Pin 1Set (84mm) M3.5x15mm Screw Cam Lock & Handle L Shape 10Sets Bolt Sets 1Set (84mm) M3.6x19mm Screw Screw - 5 x 8mm 4Pcs Door Hinge Set (Euro Screw)
  • Page 5 - Install 48pcs of small Wooden Pins (2) into all panels as shown. Use a wooden or light rubber hammer to avoid damage to the pins. Please pay close attention to which holes you have to use, and do not join any parts yet! - Attach all the bolts (3) to panels (A), (G) &...
  • Page 6 "L" Shaped Flat Shaped Separate the 4 pieces of the sliders (19) according to their shape: - The flat shaped will be used in the next step (2 pieces, both left and right). - Install the flat shaped sliders (19) on panels (C) and (D) using screws (4) as shown.
  • Page 7 - Attach L Bracket (16) to the top edge of panel (H) using screw (7) as shown. Assemble panels (B) and (H) using screws (9) as shown.
  • Page 8 The panels from previous step are shown here from the right side - Assemble the panel (D) to the panel (H) using screws (9) and attach the plastic caps (11) as shown. The panels from previous step are shown here from the left side - First assemble the panel (E) to panel (D) using screws (9) and attach the plastic caps (11) as shown.
  • Page 9 The panels from previous step are shown here from the right side - First assemble the panel (C) to the panel (E) using screws (9), and attach the plastic caps (11) to panel (C), then install the plastic feet (18)to the bottom of panels (B), (D) and (E) as shown.
  • Page 10 - Install 2 pcs of Long Wooden Pins (1) into - Assemble the panel (M),(N) to the panel (K) panel (M) as shown. Use a wooden or light as shown. rubber hammer to avoid damage to the pins. - Assemble the panel (L) to the panel (M) as - Assemble the panel (O) to the panel (K) as shown.
  • Page 11 The panels from previous step are shown here in normal upright position The panels from previous step are shown here from the back Using screws (9), assemble panel (J) to panel (O), and then panel (O) to panel (K) and attach the plastic caps (11) to panel (J), (O) and (I) as shown.
  • Page 12 The panels from previous step are shown here laying down showing the underside Main panel (A) shown from the underside - First install the grommet (12) into the hole of panel (O) from the inside, then assemble the main panel (A) to panels (I), (J) and (O) using screws (9) as shown. - First install and align the cam locks (3) into panels (B), (C), (D) and (H), and assemble the main panel (A) as shown and as explained in page 4.
  • Page 13 The unit is shown from the back - On the back of the unit, install the corner Z brackets (17) to the top left corner and bottom right corner using screws (6) as shown. - Using cam locks (3), and as shown and explained in page 4, assemble drawer side - Assemble the drawer back panel (T) to the panels (S) and (R) to the drawer front panel...
  • Page 14 - Place the drawer upside-down and using screws (7) as shown. Please note that the wheels go towards the - First install the handle (13) to the drawer back of the drawer and the sliders should not front panel (Q) using the own handle screws, protrude from the bottom, otherwise the then install the cam locks caps (10) as shown.
  • Page 15 Assemble the door (P) to the left panel (C) using screws (5), and adjust the alignment if necessary: (A): This screw adjusts the door up and down. (B): This screw adjusts the door side to side. (C): This screw adjusts the door's depth. DONE! Before you start using, please read all the warnings in the next page.
  • Page 16 5Kg (11 Lbs) 5Kg (11 Lbs) 50Kg (110 Lbs) 5Kg (11 Lbs) 4.5Kg (10 Lbs) Do not exceed the weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. Clean the surfaces preferable with a soft cloth damped with a solution of mild soap and water, then dry with a clean towel.
