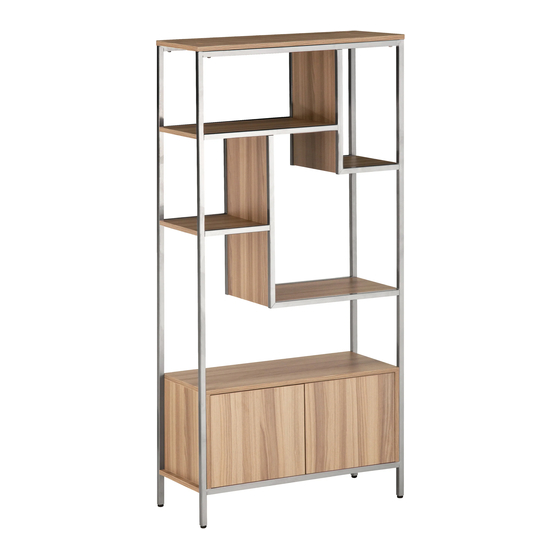

MODEL RTA-482BC
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.072021-0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-482BC and is the answer not in the manual?

Questions and answers

Related Manuals for Techni Mobili RTA-482BC

Summary of Contents for Techni Mobili RTA-482BC

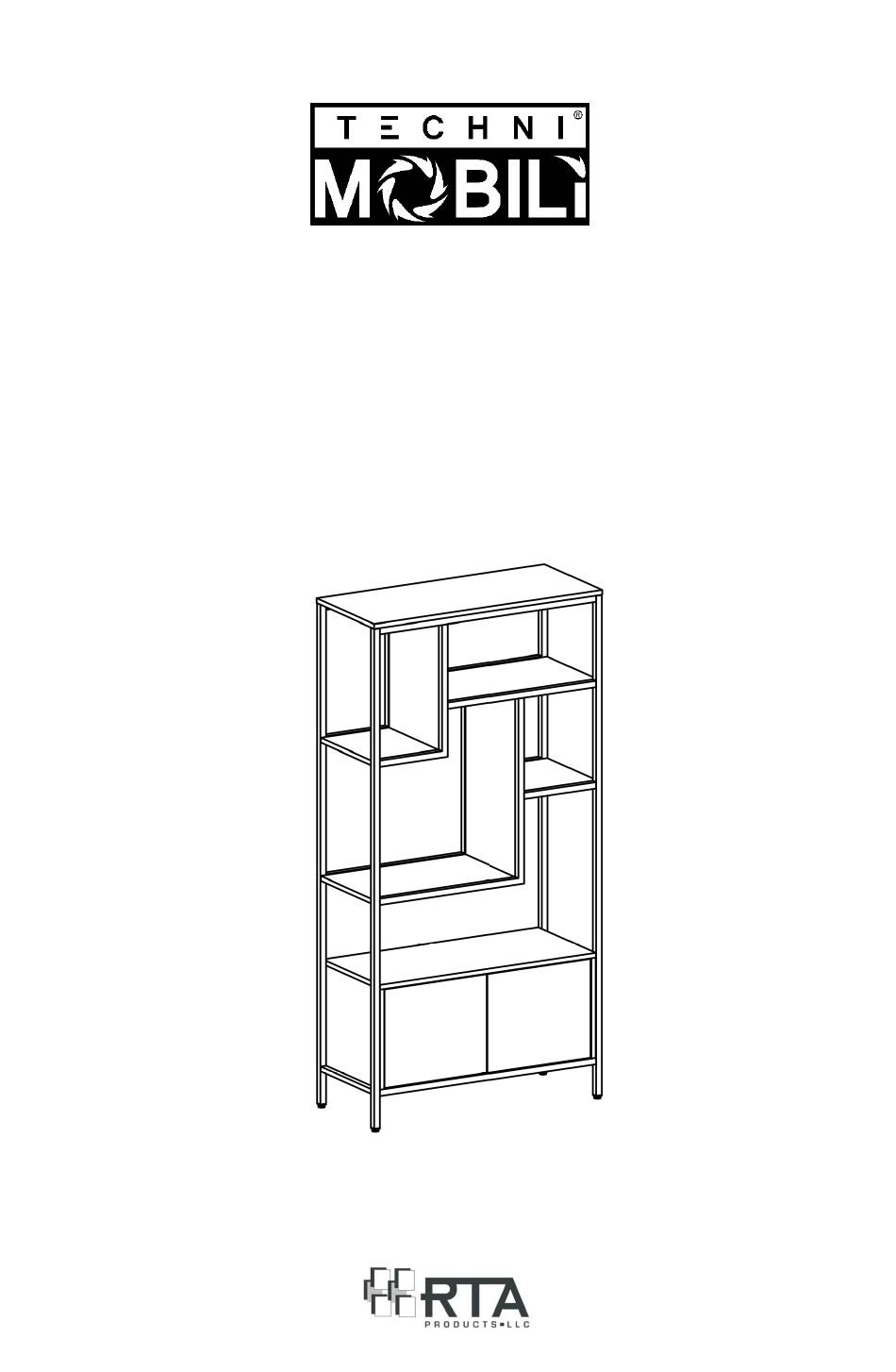

  • Page 1 MODEL RTA-482BC ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.072021-0...
  • Page 2 RTA-482BC • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
  • Page 3 RTA-482BC MAIN PARTS LIST Front structure Back structure Glide Studs Top panel Upper left shelf Upper left divider Middle left shelf Upper right shelf Middle divider Lower left panel Middle right shelf Lower right panel Lower right panel Lower back panel...
  • Page 4 RTA-482BC MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM M6x45 Bolt M6x40 Bolt M6x25 M6x30 ST3x15 ST4x16 Anchor Kit Sets Allen Key Screwdrive...
  • Page 5 RTA-482BC ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
  • Page 6 RTA-482BC BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
  • Page 7 RTA-482BC ASSEMBLY STEPS STEP 1 Assemble the shelves 5 and 7 to the Upper left divider 6 with bolts A as shown and as explained in page 4. Hardware: M6x45 Bolt Cam lock Cam lock alignment alignment STEP 2 Assemble the shelves 8 and 10 to the Middle divider 9 with bolts A as shown and as explained in page 4.
  • Page 8 RTA-482BC STEP 4 Install the glide studs 3 into the bottom of the structures 1 and 2. Hardware: STEP 5 With the help of another person, assemble the Back structure 2 to all the panels assembled in step 7 with bolts B as shown and as explained in Hardware: page 4.
  • Page 9 RTA-482BC ASSEMBLY STEPS STEP 6 Assemble the Lower back panel 14 to the Lower panel 15 with bolts A as shown and as explained in page 4. Hardware: M6x45 Bolt Cam locks Cam locks alignment alignment STEP 7 Assemble the Lower side panels 11 and 12 to the Lower panel 15 with bolts A as shown and as explained in page 4.
  • Page 10 RTA-482BC STEP 8 • Attach the piece 19B from the Door spring kit 19 to the lower shelf 13 with screws F, making sure the little stopper faces towards the front. Hardware: ST4x16 • Slide the spring piece 19A from the Door spring kit 19 through the piece 19B until it locks inside, making sure the spring button faces towards the front.

  • Page 11: Hardware

    P.10 RTA-482BC P.10 STEP 10 With the help of another person, turn over the frame built in step 5 and place the box built in step 9 over the lower section of the structure 2. The side panels 11 and 12 will engage inside the frame, while the bottom panel 15 will stay on top of it as shown.

  • Page 12: Step 10

    P.10 RTA-482BC P.10 STEP 10 With the help of another person, turn over the frame built in step 5 and place the box built in step 9 over the lower section of the structure 2. The side panels 11 and 12 will engage inside the frame, while the bottom panel 15 will stay on top of it as shown.
  • Page 13 P.11 RTA-482BC P.11 STEP 12 Secure the side panels 11 and 12 to the structure 1 with screws C from Hardware: the inside. M6x25 STEP 13 • With the help of another person bring the frame upright. • Secure the side panels 11 and 12 to the back structure 2 with screws Hardware: C from the inside.

  • Page 14: A M6X45 Pcs

    P.12 RTA-482BC P.12 STEP 14 • Attach the remaining bolt A to the top panel 4 on the center hole. • Assemble panel 4 to the Upper left divider 6 as shown and as Hardware: explained in page 4. • Secure panel 4 to structures 1 and 2 with screws D from underneath.
  • Page 15 P.13 RTA-482BC P.13 STEP 16 • With the help of another person, install the Door 16 to the Lower left Hardware: panel 11 by attaching the Hinges 18 with screws F only on the oval holes. • Install the Door 17 to the Lower right panel 12 by attaching the Hinges ST4x16 18 with screws F only on the oval holes.
  • Page 16 P.14 RTA-482BC P.14 STEP 17 • Once you have selected the place against the wall where the unit will Hardware: Hardware: go, with the help of another person bring the unit closer to the wall, and calculate the 2 points on the wall where the anchor device G will be installed, which should be no more than 1 inch away from the top corners of the unit.
  • Page 17 P.15 RTA-482BC P.15 ALL DONE! Give yourself a nice pat on the back. You did a great job! IT IS EXTREMELY IMPORTANT THAT YOU READ ALL THE WARNINGS ON THE NEXT PAGE!
  • Page 18 P.16 RTA-482BC P.16 TIP-OVER WARNING! Please keep your children and yourself safe. Tip-over accidents can result in serious injuries or be fatal to small children. PREVENT TIP-OVER ACCIDENTS BY FOLLOWING THESE RECOMMENDATIONS: 1. Secure the unit by anchoring it to the wall. The anchoring device has been provided with the unit, and must be installed by following the instructions shown in PAGE 14 of this manual.
  • Page 19 P.17 RTA-482BC P.17 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 66 Lbs. (30 Kg) 22 Lbs. (10 Kg) 22 Lbs. 22 Lbs. (10 Kg) (10 Kg) 22 Lbs. (10 Kg) 66 Lbs. (30 Kg) 22 Lbs. (10 Kg) • For the safety of small children and your own, secure the unit to the wall with the anchor device provided.
  • Page 20 P.18 RTA-482BC P.18 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 21 P.19 RTA-482BC P.19 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
  • Page 22 P.11 RTA-482BC P.11 STEP 12 Secure the side panels 11 and 12 to the structure 1 with screws C from Hardware: the inside. M6x25 STEP 13 • With the help of another person bring the frame upright. • Secure the side panels 11 and 12 to the back structure 2 with screws Hardware: C from the inside.
  • Page 23 P.12 RTA-482BC P.12 STEP 14 • Attach the remaining bolt A to the top panel 4 on the center hole. • Assemble panel 4 to the Upper left divider 6 as shown and as Hardware: explained in page 4. • Secure panel 4 to structures 1 and 2 with screws D from underneath.
  • Page 24 P.13 RTA-482BC P.13 STEP 16 • With the help of another person, install the Door 16 to the Lower left Hardware: panel 11 by attaching the Hinges 18 with screws F only on the oval holes. • Install the Door 17 to the Lower right panel 12 by attaching the Hinges ST4x16 18 with screws F only on the oval holes.
  • Page 25 P.14 RTA-482BC P.14 STEP 17 • Once you have selected the place against the wall where the unit will Hardware: Hardware: go, with the help of another person bring the unit closer to the wall, and calculate the 2 points on the wall where the anchor device G will be installed, which should be no more than 1 inch away from the top corners of the unit.
  • Page 26 P.15 RTA-482BC P.15 ALL DONE! Give yourself a nice pat on the back. You did a great job! IT IS EXTREMELY IMPORTANT THAT YOU READ ALL THE WARNINGS ON THE NEXT PAGE!
  • Page 27 P.16 RTA-482BC P.16 TIP-OVER WARNING! Please keep your children and yourself safe. Tip-over accidents can result in serious injuries or be fatal to small children. PREVENT TIP-OVER ACCIDENTS BY FOLLOWING THESE RECOMMENDATIONS: 1. Secure the unit by anchoring it to the wall. The anchoring device has been provided with the unit, and must be installed by following the instructions shown in PAGE 14 of this manual.
  • Page 28 P.17 RTA-482BC P.17 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 66 Lbs. (30 Kg) 22 Lbs. (10 Kg) 22 Lbs. 22 Lbs. (10 Kg) (10 Kg) 22 Lbs. (10 Kg) 66 Lbs. (30 Kg) 22 Lbs. (10 Kg) • For the safety of small children and your own, secure the unit to the wall with the anchor device provided.
  • Page 29 P.19 RTA-482BC P.19 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
