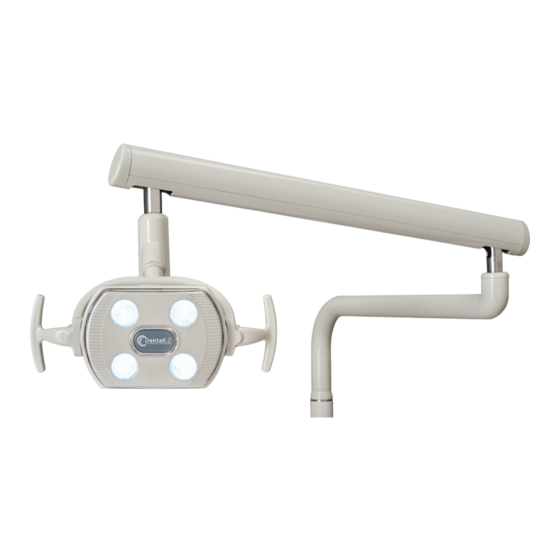

SIMPLICITY LED LIGHT
USER MANUAL
POST MOUNT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heritage Simplicity LED Light and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DentalEZ Heritage Simplicity LED Light

  • Page 1 SIMPLICITY LED LIGHT USER MANUAL POST MOUNT...
  • Page 2: Table Of Contents

    SECTION VI - USER SERVICE INFORMATION Troubleshooting ..........................14 Service Instruction ..........................15 Disposal of Equipment ........................15 SECTION VII - PARTS LIST Replacement Parts ........................... 16 DENTALEZ Parts Online ........................16 WIRING SCHEMATIC .......................... 17 EMC INFORMATION ........................... 18 LIMITED WARRANTY...
  • Page 3 SIMPLICITY LED LIGHT NOTES: 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 4: Section I - Introduction

    LEAVE THIS MANUAL IN THE DOCTOR’S OFFICE. ® Installation by an authorized DENTALEZ dealer service technician is recommended. NOTICE For any questions about an order, please contact a DENTALEZ Equipment customer service representative at 866-DTE-INFO. LIGHT ARM ASSEMBLY LIGHT BODY...
  • Page 5: Product Features

    Three-axis adjustment allows for the widest range of positioning of the dental operatory light.  Shadow-free illumination area lights the oral cavity.  High- and low-intensity for optimum illumination.  Aluminum casting light frame for better aesthetics and durability.  Ergonomically designed T-handles for ease of movement. 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 6: Dimensions

    SECTION I - INTRODUCTION DIMENSIONS 23⅝" 24" 15" 8" 4⅝" 15" 1⅜" FIGURE 2. LED LIGHT DIMENSIONS (POST MOUNT) RANGE OF MOTION 70° 70° 145° 45° 145° 135° FIGURE 3. LED LIGHT HEAD RANGE OF MOTION...
  • Page 7: Specifications

    Temperature range: 50°F to 104°F (10°C to 40°C)   Relative humidity range: 10% to 100% Relative humidity range: 30% to 75%   Atmospheric pressure range: 500 kPa to 1,060 kPa Atmospheric pressure range: 700 kPa to 1,060 kPa 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 8: Classifications

    SECTION I - INTRODUCTION CLASSIFICATIONS EXPLANATION OF SYMBOLS & SIGNS Medical-General Medical Equipment ETL CLASSIFIED Certified as to electrical shock, fire and mechanical hazards only in = Caution 4010684 accordance with: = Warning IEC: 80601-2-60 E355890 ANSI/AAMI: ES60601-1 = Biohazard CSA Std: C22.2 No.
  • Page 9: Safety Precautions

    To avoid the risk of electrical shock, this equipment must only be connected to a supply mains with protective earth.  Do not modify this equipment without permission from DENTALEZ.  Rating of main circuit breakers should be 20 Amps maximum.
  • Page 10: Section Ii - Preinstallation

    SECTION II - PREINSTALLATION PACKAGING All parts supplied are vital for proper instillation. Do not discard any hardware or components until NOTICE installation is complete. The light components are packaged and shipped accord to the packing list below. Please verify the carton contents against the packing list.
  • Page 11: Section Iii - Installation

    BUSHING SPINDLE SLOT LIGHT POST LIGHT POST FIGURE 4. FEED LIGHT CORD THROUGH LIGHT POST FIGURE 5. INSERT LIGHT ARM ASSEMBLY INTO AND INTO CONSOLE OR OUT OF POST BUSHING UNTIL FULLY SEATED IN LIGHT POST 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 12: Power Supply Box (Console)

    SECTION III - INSTALLATION POWER SUPPLY BOX (CONSOLE MOUNT) NOTE: If the plastic connector is not on the end of the light cord, attach it following the instructions enclosed in the bag with the connector parts. Inside the post-mounted service console, plug the light cord into the matching connector from the umbilical (FIGURE 2.
  • Page 13: Power Supply Box (Magellan)

    9. Reconnect the chair power and test the light switch as described in SECTION IV - OPERATION. RECEPTACLE LIGHT (NOT PROVIDED) OUTLET LIGHT ADAPTER POWER SUPPLY CORD FIGURE 7. PLUG LIGHT ADAPTER CORD INTO POWER SUPPLY BOX AND PLUG POWER SUPPLY CORD INTO AN ELECTRICAL RECEPTACLE OUTLET 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 14: Section Iv - Operation

    SECTION IV - OPERATION LIGHT SWITCH/SENSOR The light switch toggle is located on the adjustable arm behind the reflector head. Use switch to turn light ON or OFF, or hold hand near sensor for a few seconds (FIGURE 2. To adjust brightness levels, wave hand by sensor. Levels will adjust from low, to medium, then high and back. TOGGLE LIGHT SWITCH...
  • Page 15: Positioning Light

    FIGURE 9. USE HANDLES ON EITHER SIDE OF THE REFLECTOR HEAD TO POSITION LIGHT IMPORTANT: Focal adjustment is set at the factory; therefore, DO NOT ADJUST (FIGURE 10). NOTICE FOCUS ADJUSTMENT SCREW (DO NOT ADJUST) FIGURE 10. DO NOT ADJUST FOCUS ADJUSTMENT SCREW 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 16: Section V - Care & Maintenance

    SECTION V - CARE & MAINTENANCE CLEANING OVERVIEW Turn OFF the main switch before cleaning the equipment. WARNING  To prevent risks and damages to equipment, make sure that liquid does not enter into the unit. CAUTION Do not allow liquid into the vents. ...
  • Page 17: Section Vi - User Service Information

    • The DENTALEZ technical service department is available to supply personnel with any additional information or instructions needed to repair or maintain the dental light. The following chart should be used when troubleshooting light problems. If these suggested troubleshooting...
  • Page 18: Service Instruction

    SECTION VI - USER SERVICE INFORMATION SERVICE INSTRUCTION DISPOSAL OF EQUIPMENT If the area of concern is not addressed in this manual, DISPOSAL AND DECOMMISSIONING OF contact DENTALEZ customer service at 866-DTE-INFO. DENTALEZ PRODUCTS (See LIMITED WARRANTY.) NOTE: All local regulatory requirements for disposal Please have the following product information available.
  • Page 19: Section Vii - Parts List

    Switch Assembly 3802-351 TRANSFORMER Part/Kit Name Part/Kit No. Transformer 3801-804 Fuse Kit, 115 V 3802-252 Fuse Kit, 220 V 3802-253 DENTALEZ PARTS ONLINE To view parts online, visit DENTALEZPARTS.COM or scan QR code with a smart phone. 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 20: Wiring Schematic

    WIRING SCHEMATIC...
  • Page 21: Emc Information

    Hz) Magnetic Field IEC 3 A/m 3 A/m levels characteristic of a typical location in a 61000-4-8 typical commercial or hospital environment. NOTE: Ut is the AC mains voltage prior to application of the test level. 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 22 EMC INFORMATION GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY ALL ME EQUIPMENT AND ME SYSTEMS The light is intended for use in the electromagnetic environment specified below. The customer or the user of the light should assure that it is used in such an environment.
  • Page 23 SIMPLICITY LED LIGHT NOTES: 866-DTE-INFO dentalez.com PN: 2717-270D...
  • Page 24: Limited Warranty

    We are not responsible for shipping damages. We will, however, help you file a claim with the freight carrier. Written repair estimates are available. DENTALEZ warrants all equipment and parts to be free of defects in material and workmanship, under normal usage under the following terms:...
  • Page 25 DENTALEZ Alabama, Inc. 2500 Highway 31 South Bay Minette, AL 36507 T: 866-DTE-INFO DENTALEZ.COM © 2021 DENTALEZ, Inc. DENTALEZ is a registered trademark. PN: 2717-270D July, 2021 Printed in USA...
