ASSEMBLY INSTRUCTIONS
SPREADER LIGHT 12/24V
V-LIFT & VSD LIFTS
For more information, go to the owner support tab on the FLOE website
*WIRELESS KIT (P/N 511-00832-01) IS REQUIRED (NOT INCLUDED).
TOOLS REQUIRED
•7/16" SOCKET/WRENCH
•WIRELESS SYSTEM INSTRUCTIONS
1
Advertisement
Related Manuals for Floe V-LIFT
Summary of Contents for Floe V-LIFT

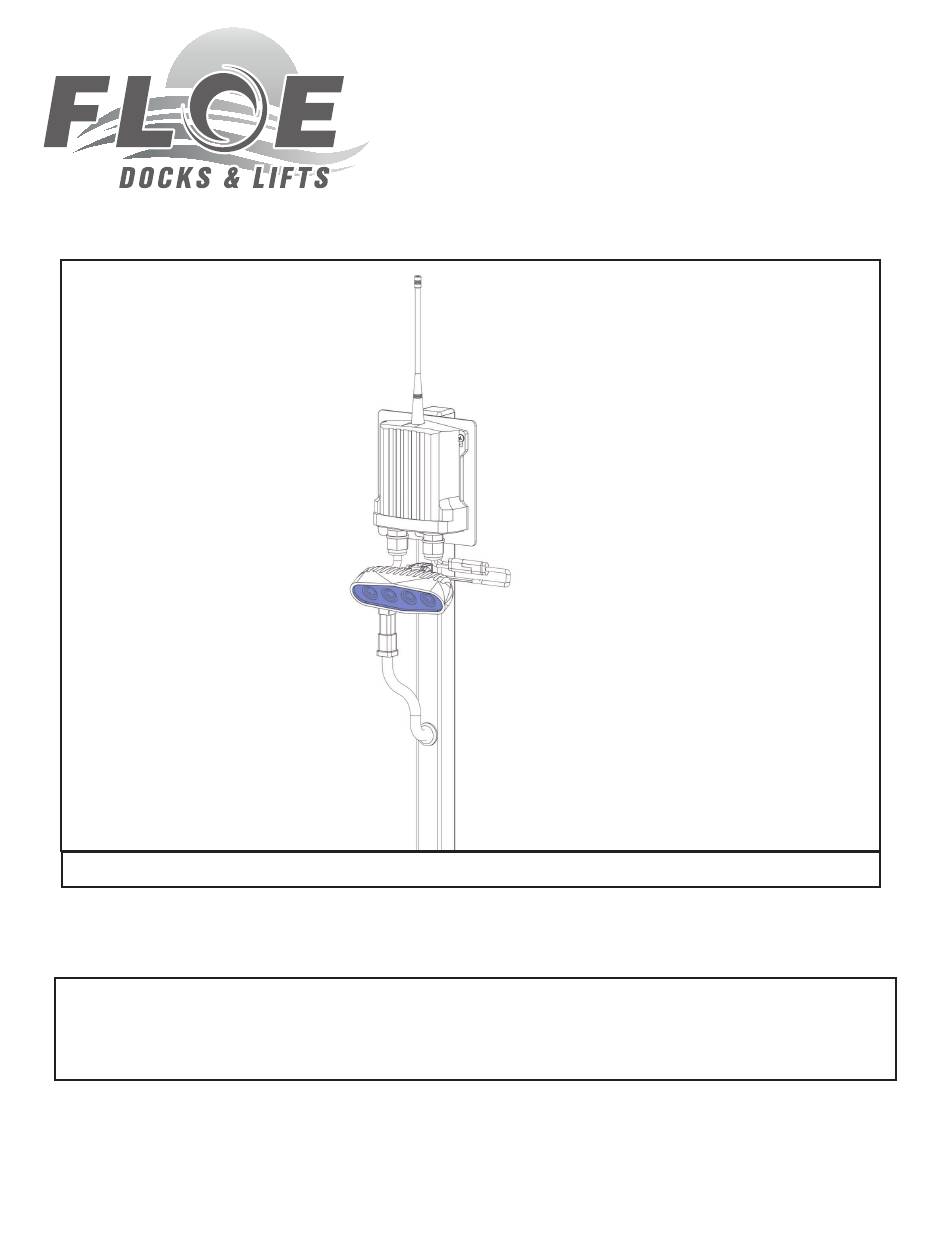

- Page 1 ASSEMBLY INSTRUCTIONS SPREADER LIGHT 12/24V V-LIFT & VSD LIFTS For more information, go to the owner support tab on the FLOE website *WIRELESS KIT (P/N 511-00832-01) IS REQUIRED (NOT INCLUDED). TOOLS REQUIRED •7/16” SOCKET/WRENCH •WIRELESS SYSTEM INSTRUCTIONS...
- Page 2 BILL OF MATERIALS/EXPLODED VIEW P/N 511-00842-00 SPREADER LIGHT, 12/24 - BLACK NUMBER PART NUMBER QTY. DESCRIPTION 001-70010-00 HHCS, 1/4-20 X 1-3/4” 18-8 SS 001-75001-00 NUT, NYLOCK 1/4-20 ALUM. 002-05605-00 ADAPTER, SPREADER LIGHT TO PRE 2024 WIRELESS 111-00838-00 ASS’Y, LIGHT 12/24V - BLACK...
-
Page 3: Installation
INSTALLATION NOTE: INSTALL THE WIRELESS RECEIVER TO THE MAST FIRST. WITH THE 1/4” NYLOCK NUT REMOVED, INSTALL THE BOLT ATTACHED TO THE LIGHT INTO THE WIRELESS MAST (FIGURE 1.1). FOR WIRELESS SYSTEMS SOLD PRIOR TO 2024, PLACE THE SUPPLIED ADAPTER INTO THE 1” HOLE IN THE MAST BELOW WHERE THE WIRELESS RECEIVER MOUNTS (FIGURE 1.1A). - Page 4 CONNECT THE PLUG ON THE LIGHT TO THE MATCHING PLUG ON THE WIRELESS RECEIVER. INSTALL THE 1/4” NYLOCK NUT ONTO THE BOLT (FIGURE 1.2) AND TIGHTEN TO SNUG TO REMOVE PLAY IN THE BOLT (FIGURE 1.3). USE THE BUTTON ON THE REMOTE TO TURN LIGHT ON AND OFF.
- Page 5 NOTES...
- Page 6 NOTES...
- Page 7 NOTES...
- Page 8 FLOE INTERNATIONAL, INC. 48473 STATE HIGHWAY 65 • McGREGOR, MN 55760 www.fl oeintl.com All material copyright © 2023 FLOE International, Inc. Specifi cations subject to change without notice. P/N 611-00842-00 9/8/23...
