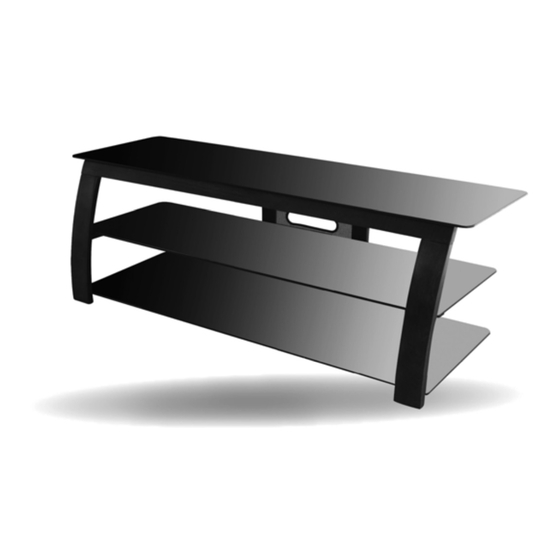

56" Cherry Finish and
Glass TV Stand
for TVs up to 58" and 154 lbs.
NS-MG302FMS
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS: PARTS.....................................3
PACKAGE CONTENTS: HARDWARE..........................4
ASSEMBLY INSTRUCTIONS.........................................5
CARE AND MAINTENANCE...................................... 13
USER GUIDE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Insignia NS-MG302FMS
Summary of Contents for Insignia NS-MG302FMS
-
Page 1: Table Of Contents

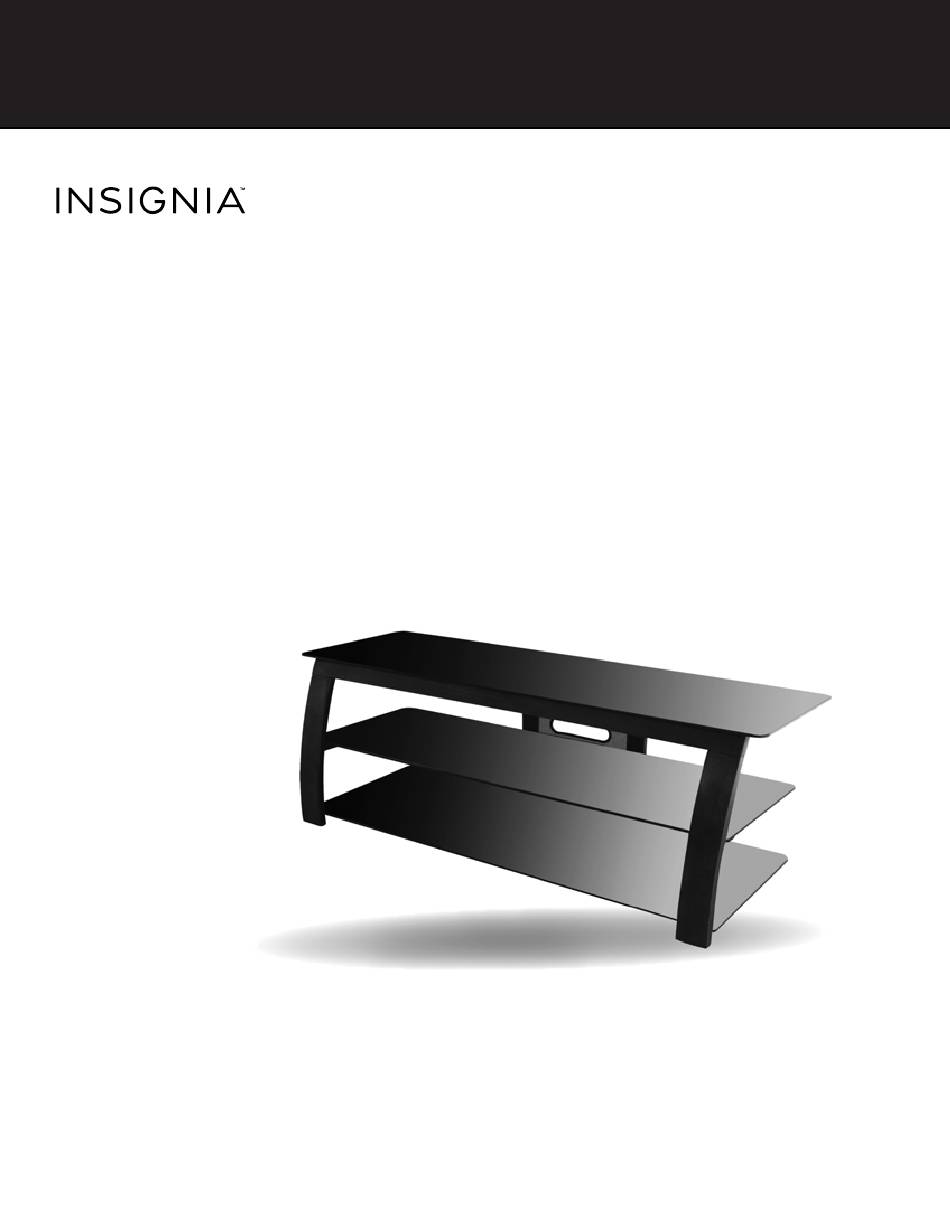

USER GUIDE 56” Cherry Finish and Glass TV Stand for TVs up to 58” and 154 lbs. NS-MG302FMS SAFETY INFORMATION AND SPECIFICATIONS..2 PACKAGE CONTENTS: PARTS........3 PACKAGE CONTENTS: HARDWARE......4 ASSEMBLY INSTRUCTIONS.........5 CARE AND MAINTENANCE........13 Before using your new product, please read these instructions to prevent any damage. -
Page 2: Safety Information And Specifications
CHERRY FINISH AND GLASS TV STAND SAFETY INFORMATION AND SPECIFICATIONS CAUTION: The top surface of this stand Do not lift the glass by the support posts. See is designed for use with a product instructions for more details. weighing no more than Model #: NT-MG302FMS 154 lbs. -
Page 3: Package Contents: Parts
CHERRY FINISH AND GLASS TV STAND PACKAGE CONTENTS: PARTS A Stand body (1) B Top glass shelf (1) C Middle glass shelf (1) D Bottom glass shelf (1) www.insigniaproducts.com... -
Page 4: Package Contents: Hardware
CHERRY FINISH AND GLASS TV STAND PACKAGE CONTENTS: HARDWARE Note: You may receive extra hardware. Make sure you have all the hardware necessary to assemble your new TV stand: Label Hardware Qty. Label Hardware Qty. Medium Large thumbscrew thumbscrew Shelf pad Locking peg Shelf lock Small... -
Page 5: Assembly Instructions
CHERRY FINISH AND GLASS TV STAND ASSEMBLY INSTRUCTIONS Step 1: Unfold the body • Unfold the stand body ( ), then insert the two large thumbscrews ( ) into the right side of the rear panel. You’ll need: www.insigniaproducts.com... - Page 6 CHERRY FINISH AND GLASS TV STAND Step 2: Attaching the middle support bars • Attach the middle support bars to the rear panel with the two small thumbscrews ( You’ll need: www.insigniaproducts.com...
- Page 7 CHERRY FINISH AND GLASS TV STAND Step 3 Attaching the shelf pads • Attach the shelf pads to the shelf supports. You’ll need: (11) www.insigniaproducts.com...
- Page 8 CHERRY FINISH AND GLASS TV STAND Step 4 Inserting the locking pegs • Insert the two locking pegs (F) into the top glass shelf (B). You’ll need: www.insigniaproducts.com...
- Page 9 CHERRY FINISH AND GLASS TV STAND Step 5: Locking the top shelf into place 1 Turn the top shelf over and align the locking pegs with the holes in the top of the rear vertical support, and align the metal pegs with holes in the side of the frame. 2 Lock the locking pegs into place by rotating the peg heads to face the back of the stand.
- Page 10 CHERRY FINISH AND GLASS TV STAND Step 6: Securing the top shelf • Secure the top shelf to the steel frame with the medium thumbscrews ( You’ll need: www.insigniaproducts.com...
- Page 11 CHERRY FINISH AND GLASS TV STAND Step 7: Installing the middle and bottom shelves 1 Install the bottom shelf ( ). Tilt the shelf to fit it between the sides of the stand. 2 Install the middle shelf (C), then lock the middle shelf into place with the T-shaped shelf lock ( ).
- Page 12 CHERRY FINISH AND GLASS TV STAND Step 8: Optional: Installing the anti-tipping hardware Instructions are included on the bag containing the hardware. • Remove the top thumbscrew, place one of the tipping restraint brackets over the thumbnail screw hole, then replace the thumbscrew.
-
Page 13: Care And Maintenance
CHERRY FINISH AND GLASS TV STAND CARE AND MAINTENANCE Glass • Use a commercial liquid glass cleaner and a soft cloth. • Do not use harsh powders or any other abrasive substances as they will scratch the glass. WARNING Please use your stand correctly and safely. Improper use can cause safety hazards or damage to your furniture or household items. Carefully read the following chart. - Page 14 CHERRY FINISH AND GLASS TV STAND www.insigniaproducts.com...
- Page 15 FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN Insignia and are not returned to you. If service of Products or DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND parts are required after the Warranty Period expires, you must NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY pay all labor and parts charges.
- Page 16 4. Date of Manufacture: _______________ Lot number: 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
