6.2 Start
The router is put into operation when the power supply is connected to this router. By
default, the router will automatically start to log on to the default APN. DHCP server will start
to assign addresses for devices on the Ethernet port ETH0. Router behavior can be changed
via the web interface. This is described in detail in the Configuration manual for v2 routers.
The power consumption during receiving is 1.6 W. The power consumption when using
WiFi is 1.9 W. The peak power consupmtion during data sending is 2.5 W. However, values of
consumption can be increased, if some expansion port is eqquipped. For correct operation it
is necessary that the power source is able to supply a peak current of 0.5 A.
6.3 Configuration
6.3.1 Configuration over web browser
For status monitoring, configuration and administration of the router is available a web
interface which can be accessed by entering the IP address of the router into the web browser.
The default IP address of the router is 192.168.1.1.

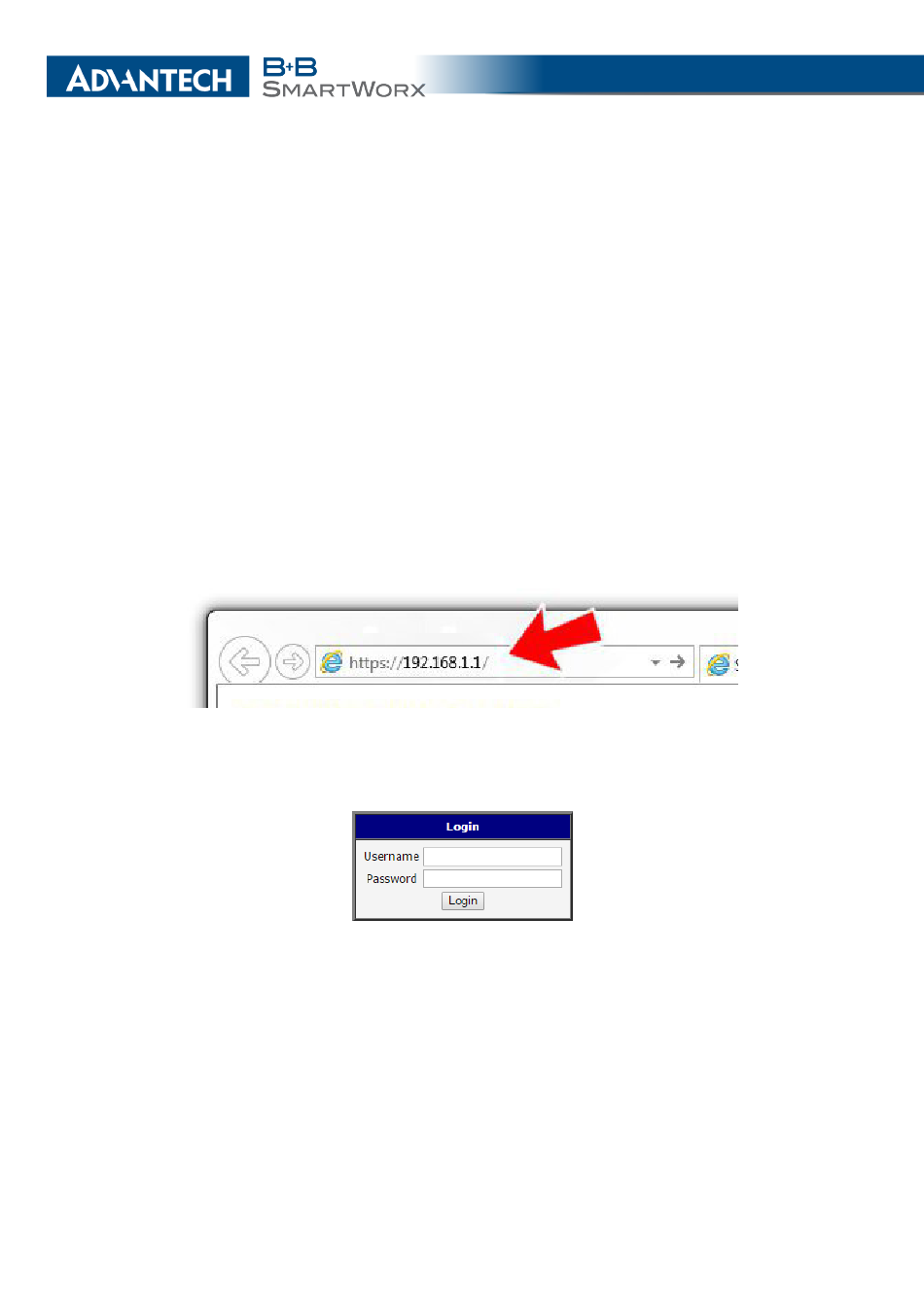

Figure 29: Entering the IP address of the router
Configuration may be performed only by the user "root" with default password "root".
Figure 30: Entering login information
22
6. FIRST USE
