I/O user interface is designed for processing of binary input and control (setting) binary
output. Binary output is not switched to ground in the default configuration. Maximum load
binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA.
Connect I/O cable into the I/O connector on the front panel of the router and tighten locking
screws (see figure below).
Example of a circuit describing connection of binary input and output to the router:

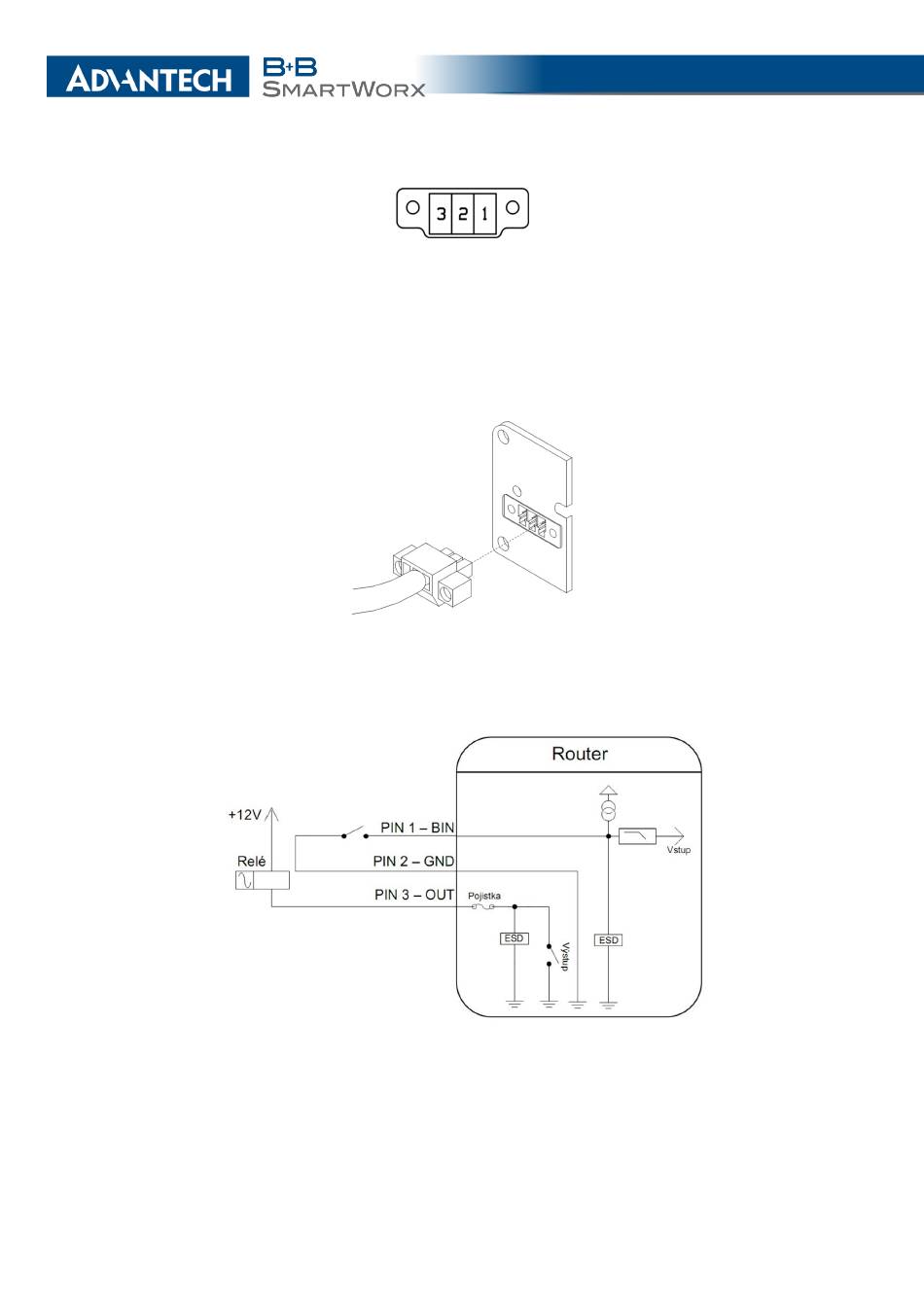

Figure 26: Connection of input and output to the router
Figure 24: I/O connector
Figure 25: Connection of I/O cable
19
5. ROUTER DESIGN
