Ethernet Industrial Router
XR5i v2
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B+B SmartWorx XR5i v2 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech B+B SmartWorx XR5i v2

Summary of Contents for Advantech B+B SmartWorx XR5i v2

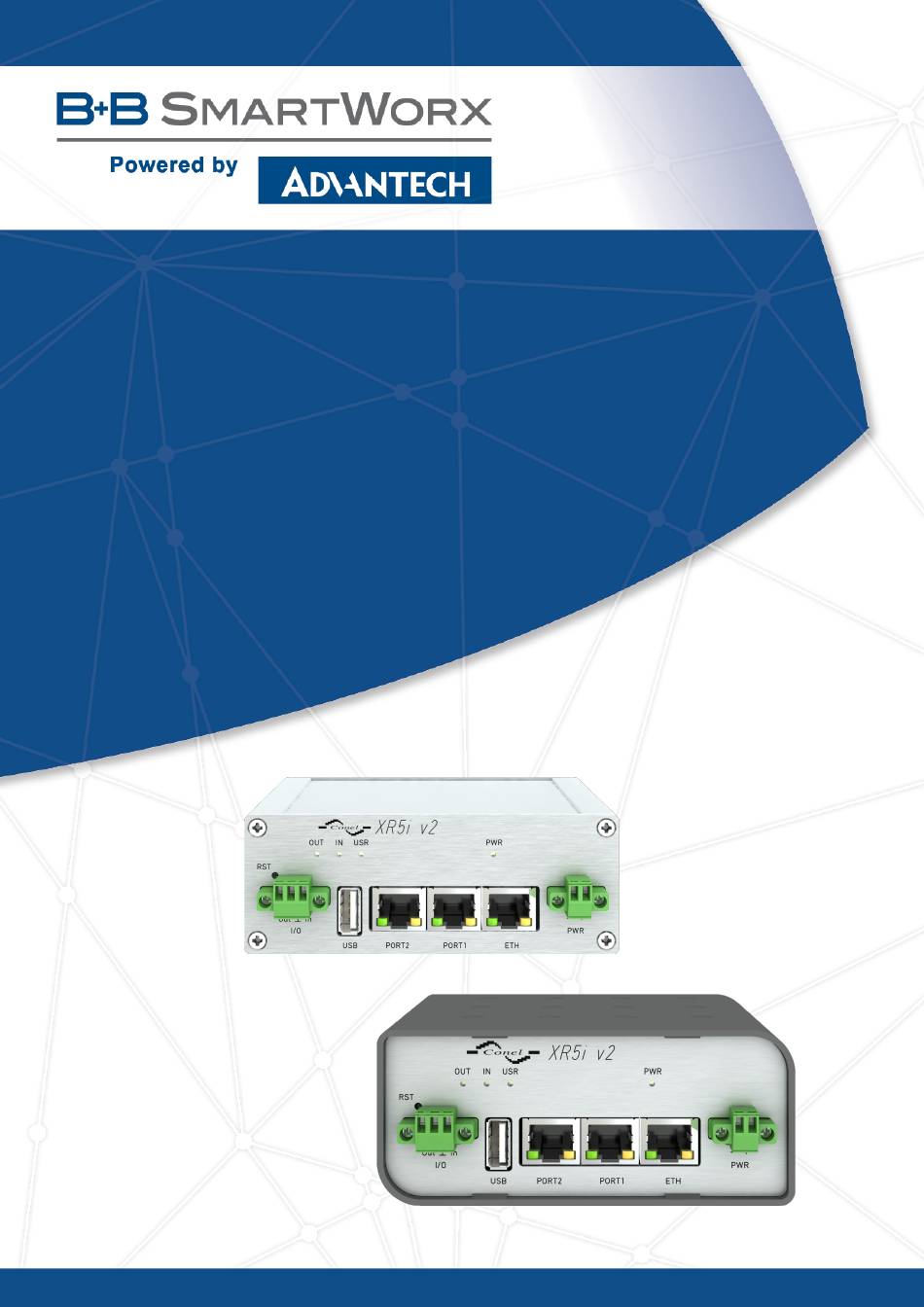

  • Page 1 Ethernet Industrial Router XR5i v2 USER’S MANUAL...
  • Page 2 GPL licence Source codes under GPL licence are available free of charge by sending an email to: cellularsales@advantech-bb.com. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual Rev. 1 released in CZ, July 25, 2016...

  • Page 3: Table Of Contents

    CONTENTS Contents 1 Safety Instruction 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........5.2 Delivery identification .
  • Page 4 CONTENTS 7.4 Technical parameters of I/O port ......7.5 Technical parameters of expansion port ..... . 8 Recommended Literature 9 Troubleshooting 9.1 FAQ...
  • Page 5 LIST OF FIGURES List of Figures Contents of package ....... . . Front panel XR5i v2F .
  • Page 6 LIST OF TABLES List of Tables Router versions ........Delivery identification .

  • Page 7: Safety Instruction

    1. SAFETY INSTRUCTION 1. Safety Instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury to health and damage to appliances and to ensure that all the relevant provisions have been complied with, use only the original accessories.

  • Page 8: Weee Directive

    2. WEEE DIRECTIVE 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 9: Router Description

    3. ROUTER DESCRIPTION 3. Router Description Industrial router XR5i v2 is used to a secure connection between two local area networks (LANs) via two ETHERNET interfaces 10/100 and secured tunnel (IPSec, OpenVPN or L2TP). The second option is to use this router for connecting two devices with different serial interface (RS232, RS485, MBUS) alternatively I/O to the local network (LAN).

  • Page 10: Contents Of Package

    4. CONTENTS OF PACKAGE 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to one external antenna, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C! As optional accessories can also be supplied the following expansion ports (two boards for Full version): RS232, RS485/422, MBUS, ETHERNET, CNT, SWITCH, WIFI, WMBUS or SDH.

  • Page 11: Router Design

    5. ROUTER DESIGN 5. Router Design 5.1 Router versions XR5i v2 router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box XR5i v2F Plastic XR5i v2F SL Metal...

  • Page 12: Label Xr5I V2F

    5. ROUTER DESIGN 5.2 Delivery identification Trade name Type name Other XR5i v2F XR-5i-v2 Full version in the plastic box XR5i v2F SL XR-5i-v2 Full version in the metal box Table 2: Delivery identification Figure 6: Label XR5i v2F Figure 7: Label XR5i v2F SL...

  • Page 13: Ordering Codes

    5. ROUTER DESIGN 5.3 Order codes Expansion port Participation Ordering code Version without expansion port XR5i v2F set Version with Ethernet expansion port PORT1 XR5i v2F ETH set Version with RS232 expansion port PORT1 or PORT2 XR5i v2F RS232 set Version with RS485 expansion port PORT1 or PORT2 XR5i v2F RS458 set...

  • Page 14: Basic Dimensions Of Plastic Box (Bottom And Front View)

    5. ROUTER DESIGN 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 8: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 9: Basic dimensions of metal box (bottom and front view)

  • Page 15: Cable Routing (Plastic)

    5. ROUTER DESIGN 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included clip CPD2 (or CKD2 for metal version). For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: no public and industry environment of low voltage with high interference, public environment of low voltage without high interference.

  • Page 16: Space In Front Of Connectors (Plastic)

    5. ROUTER DESIGN Sufficient space must be left in front of individual connectors for handling of cables, Figure 12: Space in front of connectors (plastic) Figure 13: Space in front of connectors (metal) For correct function of the router we recommend to use in the switch-board earth-bonding distribution frame for grounding of power supply of router, data cables and antenna.

  • Page 17: Default Position Of Din Holder

    5. ROUTER DESIGN 5.6 Removing from the DIN rail DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of CPD2 holder (or CKD2 for metal version), which is used for mounting the router on a DIN rail, is shown in the following figure: Figure 14: Default position of DIN holder For removing from the DIN rail it is necessary to lightly push upward the router so that the...

  • Page 18: Front Panel Xr5I V2F

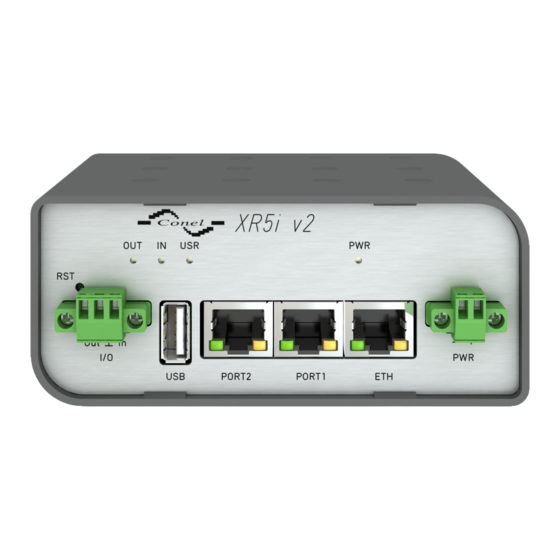

    5. ROUTER DESIGN 5.7 Description of the front panel On the front panel is the following: Caption Connector Description 2-pin Connector for the power supply. RJ45 Connector for connection into the local computer network. PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS, ETHERNET, CNT or SWITCH.

  • Page 19: Status Indication

    5. ROUTER DESIGN 5.7.1 Status indication About router status inform four LED indicators on the front panel. ETH port, PORT1 and PORT2 have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready Starting of the router Fast blinking Updating firmware...

  • Page 20: Power Connector

    5. ROUTER DESIGN 5.7.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(-) Negative pole of DC supply voltage Table 6: Connection of power connector Figure 17: Power connector Power supply for router is required between +9 V to +36 V DC supply.

  • Page 21: Ethernet Connector

    5. ROUTER DESIGN 5.7.3 Ethernet Port ETH Panel socket RJ45. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output — — — —...

  • Page 22: Port1 Cable Connection

    5. ROUTER DESIGN 5.7.4 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: RS232 MBUS RS485 RS422 SWITCH (together with PORT2) ETHERNET Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.

  • Page 23: Port2 Cable Connection

    5. ROUTER DESIGN Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see figure below). Figure 22: PORT2 cable connection 5.7.6 USB Port Panel socket USB-A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal –...

  • Page 24: O Connector

    5. ROUTER DESIGN Figure 24: I/O connector I/O user interface is designed for processing of binary input and control (setting) binary output. Binary output is not switched to ground in the default configuration. Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA. Connect I/O cable into the I/O connector on the front panel of the router and tighten locking screws (see figure below).

  • Page 25: Router Reset

    5. ROUTER DESIGN 5.7.8 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on). For pressing the RST button could be used a narrow screwdriver.

  • Page 26: First Use

    6. FIRST USE 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. The router can not operate without connected power supply. Figure 28: Router connection...

  • Page 27: Entering The Ip Address Of The Router

    6. FIRST USE 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router behavior can be changed via the web interface.

  • Page 28: Router Web Interface

    6. FIRST USE After successfully entering login information user gains access to the router via his internet browser. Figure 31: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers.

  • Page 29: Technical Parameters

    7. TECHNICAL PARAMETERS 7. Technical Parameters 7.1 Basic parameters XR5i v2 Temperature range Function -40 C to +75 C Storage -40 C to +85 C Humidity Operating 0 to 95 % relative humidity non condensing Storage 0 to 95 % relative humidity non condensing Altitude Operating 2000 m / 70 kPa...

  • Page 30: Technical Parameters Of Processor

    7. TECHNICAL PARAMETERS 7.3 Technical parameters of processor 32b ARM microprocessor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 13: Technical parameters of processor 7.4 Technical parameters of I/O port Binary input and output Input/Output Binary input...
  • Page 31 8. RECOMMENDED LITERATURE 8. Recommended Literature Advantech B+B SmartWorx: Start guide for v2 routers, Advantech B+B SmartWorx: Configuration manual for v2 routers, Advantech B+B SmartWorx: User’s manual – Expansion port RS232, Advantech B+B SmartWorx: User’s manual – Expansion port RS485/422, Advantech B+B SmartWorx: User’s manual –...
  • Page 32 9. TROUBLESHOOTING 9. Troubleshooting If you can not connect to the router from your PC, your network card may be configured the way it is not possible to connect to the router. Take one or more of the following steps to solve the problem: Select the communication rate 10 MB/s in the properties of your network card.
  • Page 33 9. TROUBLESHOOTING The operator may not provide the address of DNS server and without DNS server’s adress it is impossible to connect to the dyndns.org server. There will be these messages in the system log: – DynDNS daemon started – Error resolving hostname: no such file or directory –...
  • Page 34 During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Advantech B+B SmartWorx s.r.o. hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of "About protection of health before non-ionized radiation".
