Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see
figure below).
5.7.6 USB Port
Panel socket USB-A.
Pin
Signal mark
1
+5 V
2
USB data -
3
USB data +
4
GND
5.7.7 I/O Port
Panel socket 3-pin.
Pin
Signal mark
1
BIN0
2
GND
3
OUT0

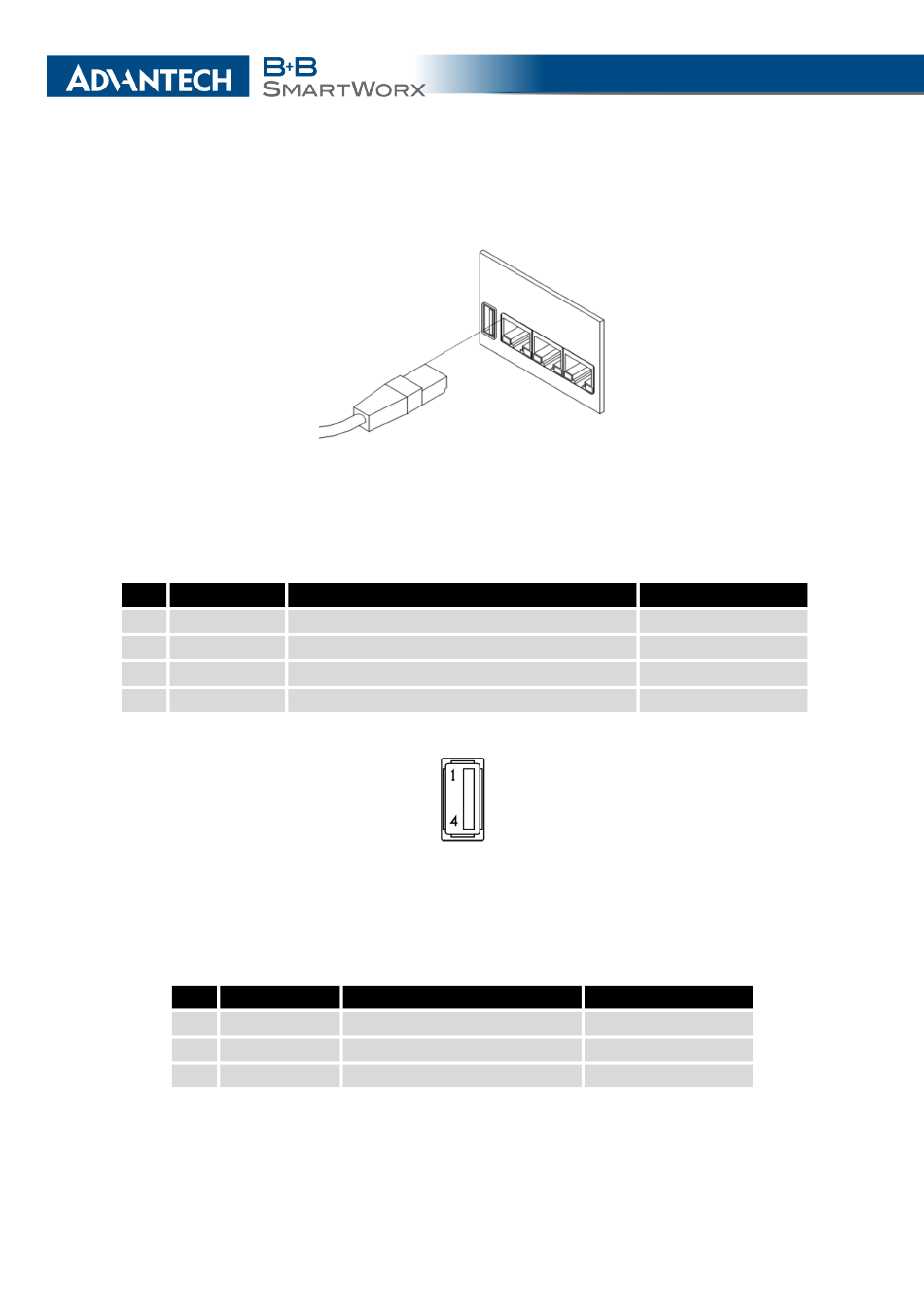

Figure 22: PORT2 cable connection
Description
Positive pole of 5 V DC supply voltage, 0.5 A
USB data signal – negative pole
USB data signal – positive pole
Negative pole of DC supply voltage
Table 8: Connection of USB connector
Figure 23: USB connector
Description
Binary input
Signal ground
Binary output
Table 9: Connection of I/O port
18
5. ROUTER DESIGN
Data flow direction
Input/Output
Input/Output
Data flow direction
Input
Output
