Summary of Contents for Advantech XR5i v2

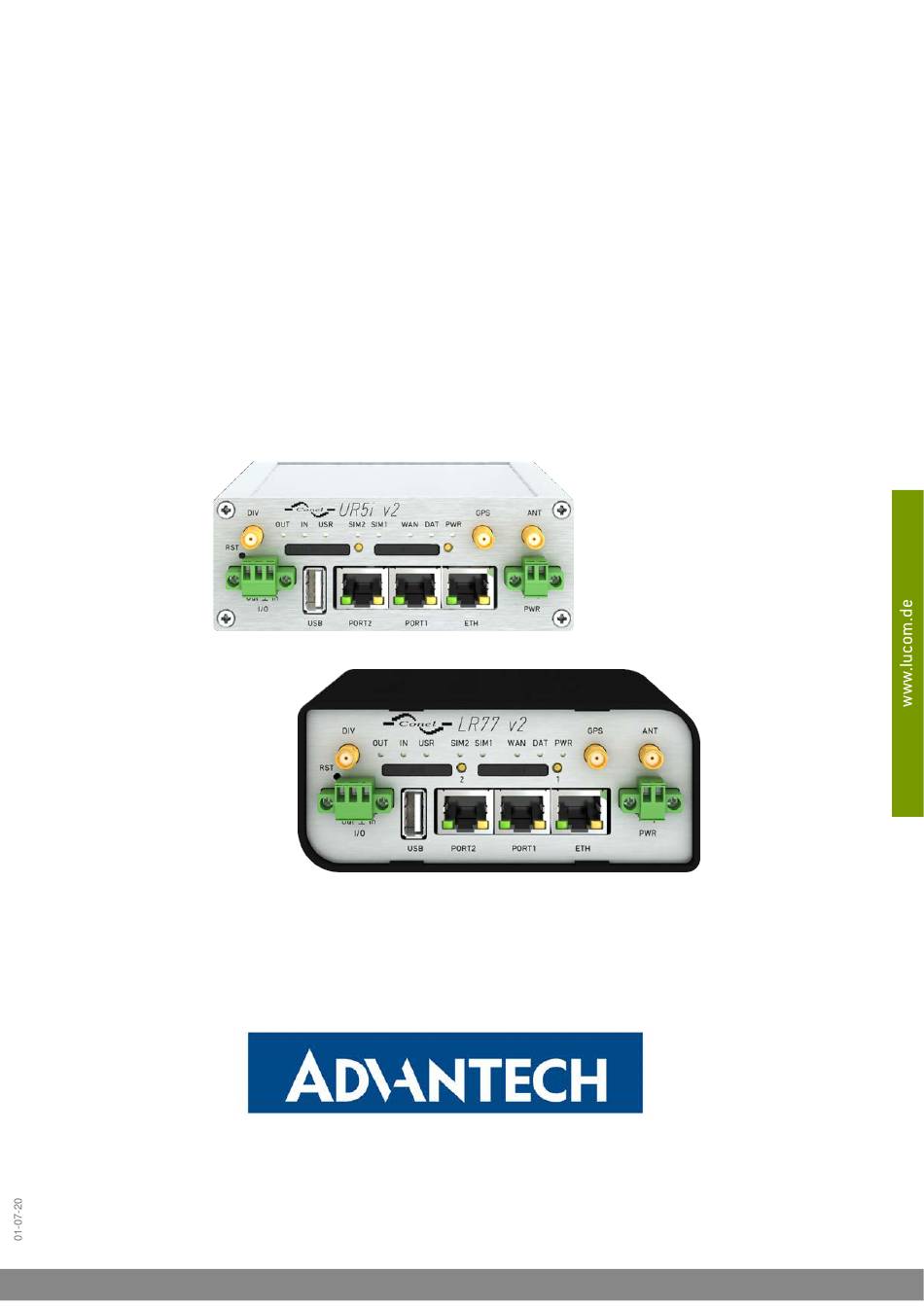

- Page 1 Start Guide for v2 Routers LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de...
- Page 2 Start Guide Safety Instructions Please take care to following instructions: Use the router in compliance with national and international law and in compliance with any special or additional restrictions regulating the use of the router in the various appli- cations and environments. To avoid possible injury and/or damage to the device, observe the relevant provisions and standards.
- Page 3 flash drive medium. If you are interested in obtaining the source, please contact us at: cellularsales@advantech-bb.com Modifications and debugging of LGPL-linked executables: The manufacturer of the device hereby grants the right to use debugging techniques (e.g.
- Page 4 If you do not have connected the main antenna during operation of the router, the router can be damaged! XR5i v2 routers are not equipped with a cellular module, which means that SIM card readers and antenna connectors are not available on the router.
- Page 5 Start Guide 2. SIM Card The SIM card reader, for 3 V and 1.8 V SIM cards, is located on the front panel of the router. The full version of the router contains two readers. If you intend to use this device to communicate over a cellular network, please place an activated data-provisioned SIM card with an unblocked PIN into the SIM card reader.
- Page 6 Start Guide 4. Ethernet An Ethernet cable may be connected to the ETH connector on the front panel (see the figure above). By default, this Ethernet port is configured as follows: Connector Purpose Default Setting LAN port (default) DHCP Server Connect your laptop or PC to this port to IP Address: 192.168.1.1 get a local web-server for device configu-...
- Page 7 ER75i v2, LR77 v2, LR77 v2 Libratum, RR75i v2, UR5i v2, UR5i v2 Libratum, XR5i v2 and XR5i v2E (versions with radio interface only) comply with Directive 2014/53/EU. XR5i v2 and XR5i v2E versions without radio interface comply with the essential re- quirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU.
- Page 8 LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de...
