CONVERSION
CONVERSION
INSTALLATION & OPERATION MANUAL
AGCO
AGCO
GLEANER S9X
GLEANER S9X
FENDT IDEAL
FENDT IDEAL
TO
TO
JOHN DEERE
JOHN DEERE
09040124b
HEADSIGHT.COM | 574.546.5022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONVERSION AGCO GLEANER S9X and is the answer not in the manual?

Questions and answers

Summary of Contents for Headsight CONVERSION AGCO GLEANER S9X

  • Page 1 CONVERSION CONVERSION INSTALLATION & OPERATION MANUAL AGCO AGCO GLEANER S9X GLEANER S9X FENDT IDEAL FENDT IDEAL JOHN DEERE JOHN DEERE 09040124b HEADSIGHT.COM | 574.546.5022...
  • Page 3 This icon designates an important instruction. Suggestions If you have any suggestions to improve this manual please call 574-546-5022 or email info@headsight.com. Disclaimers HEADSIGHT, HORIZON, PINPOINT, FORESIGHT, FEATHERSIGHT, TRUESENSE, TERRAHAWK, INSIGHT, the Headsight logo, the Horizon logo, and Terrahawk logo are trademarks of Headsight Harvesting Solutions.
  • Page 4: Table Of Contents

    Table of Contents Installation�������������������������������������������������������������������������������� Header Insight Adapter �������������������������������������������������������������������������02 Draper Speed Kit, 6/7xxFD Only �����������������������������������������������������������������03 Fold Control Kit, 6/7xxFC & CxxF Only ����������������������������������������������������������03 Calibration�������������������������������������������������������������������������������� Setup Insight ������������������������������������������������������������������������������04 ® Calibrate Insight ��������������������������������������������������������������������������������04 StandardCalibration ��������������������������������������������������������������������� Combine Ground Calibration ��������������������������������������������������������������������05 HeaderSetup ���������������������������������������������������������������������������������� HeaderCalibration ����������������������������������������������������������������������������� Settings �����������������������������������������������������������������������������������...
  • Page 5 Troubleshooting by Symptom �������������������������������������������������������������������20 Troubleshooting by Insight Error Codes ���������������������������������������������������������24 ® Schematics �������������������������������������������������������������������������������� Insight Adapter Harness : Corn ������������������������������������������������������������������ Insight Harness : Platform ����������������������������������������������������������������������32 Parts�������������������������������������������������������������������������������������� Insight and Harness �����������������������������������������������������������������������������33 Statement of Limited Warranty �������������������������������������������������������������...
  • Page 6 This Page Is Intentionally Left Blank...
  • Page 7: Installation

    Installation Before working on combine or under header always: 1. Perform all combine and header manufacturer safety precautions for servicing header. 2. Insert stop to prevent movement of header. 3. Set combine parking brake. 4. Turn off combine and remove key from ignition. 5.
  • Page 8: Header Insight Adapter

    Header Insight Adapter 1. Install Insight box at rear of header within reach of feederhouse electrical connection on combine and mark mounting hole locations. 2. Secure box to header. • Drill mounting holes using ¼” drill bit • Use provided tie straps or ¼” bolts •...
  • Page 9: Draper Speed Kit, 6/7Xxfd Only

    9. 6/700FC only: Tie Y182 so it is easy to connect during header hookup. 10. If your header harness has mating 1 pin Weatherpack plugs on purple wires, connect the plugs for hydraulic reel drive only. Otherwise, leave them disconnected. Draper Speed Kit, 6/7xxFD Only 1.
  • Page 10: Calibration

    Calibration Setup Insight ® These steps must be performed the first time the Insight box is powered up and each time it is reset. They do not need to be redone each time the Insight box is calibrated. Read the Insight Overview section for basic information about how to use the Insight box. 1.
  • Page 11: Combine Ground Calibration

    Combine Ground Calibration A combine calibration must be completed on new installations or if a component of the header control system is changed on the combine. See combine operators manual for details. The Gleaner and Fendt combines use slightly different icons & screens in some steps.
  • Page 12: HeaderCalibration

    Header Calibration 1. With Insight calibrated, park on level ground. ® 2. Disengage header control and header clutch. 3. On the touch screen, press Combine. 4. On the touch screen, press Calibrations. 5. Press to Select Header Calibration. 6. Press again to start Calibration.
  • Page 13: Settings

    Headsight recommends replacing the ¼ turn OEM valve shown with a multiple turn ® valve for improved tuning capability. Contact Headsight for more Information. 1. Find the accumulator • It is located either near the left front wheel or on right side of combine near the hydraulic valve stack.
  • Page 14: HeaderDrop/RaiseRates

    Header Drop/Raise Rates 1. On the touch screen, press Combine to get the Combine Main Menu. 2. On the touch screen, press Header Settings. 3. Fendt Ideal only, press Header Rates. Gleaner 4. Adjust Slow Up % • Use the Scroll Wheel to change values, Press OK. •...
  • Page 15: Insight ® Settings

    Insight Settings ® Tilt Sensitivity If the head is too jumpy from side to side – decrease sensitivity. If you would like the head to be more responsive – increase sensitivity. To change this setting go to >>Settings>>Tilt Sensitivity in the Insight™ box. The range is from 5 to 95 with a default setting of 50. Tilt Balance If the head is consistently running higher on one end than the other, Tilt Balance manually tweaks the combine height inputs to level it out.
  • Page 16: Operation

    Operation After calibrating Insight and combine, operate the Headsight system exactly like you would use a AGCO system. Enabling Height Control 1. Turn on separator and header clutches. Gleaner 2. Enable auto header height mode (A). 3. Enable auto tilt (B).
  • Page 17: Adjusting Cutterbar Pressure - 6/700F/Fd

    Adjusting Cutterbar Pressure - 6/700F/FD 1. On the touch screen, press Combine to get the Combine Main Menu. 2. On the touch screen, press Header Settings. Gleaner 3. Fendt Ideal only, press Header Rates. 4. Adjust cutterbar pressure • Increase pressure enough to eliminate dragging •...
  • Page 18: Overview

    Overview Insight Navigation ® How to Navigate When in a menu (selection arrow appears to left side) • Enter: chooses the selected menu choice • Esc: backs up one menu level • Up: moves up within the menu choices displayed •...
  • Page 19: ToDefaults

    To reset all settings hold Updating Insight Software with USB Drive ® Updating software may cause the Foresight option to be disabled. If you have purchased Foresight, contact Headsight before updating software. 1. You will need: • USB drive •...
  • Page 20: Advanced Information

    Advanced Information Theory of Operation A review of the following points will help the service technician to understand the complete system, which will help diagnose specific problems. 1. Each sensor returns a variable voltage depending on header height. • High header height = high voltage (approximately 4 volts) •...
  • Page 21: Reading Voltages

    Reading Voltages Before you Start The Insight box can display both the input voltages it receives from each sensor and the output voltages it is sending to the combine. Sensor voltage = Insight box output voltage = Insight box input voltage Combine sensor input Insight box scales voltages received to what combine...
  • Page 22: Box:OutputVoltages

    On the Insight Box : Output Voltages ® 1. From main menu, go to >> Diagnostics>>Display Voltages • This shows real-time voltage sent to the combine 0.0 0.0 0.0 0.0 • AGCO combines have no center input, should read 0 . 0 V. Sensors^ Outputs>...
  • Page 23: OnTheAgcoTytonMonitor

    On the AGCO Tyton Monitor 1. Press the Quadrant button on the Keypad. 2. Select Diagnostics in lower left quadrant. 3. Press 4. Press Expand to 1/2 screen. 5. Expand to Full Screen if desired. • Gleaner: Press • Fendt: Press again 6.
  • Page 24: Diagnostics

    Diagnostics Before working on combine or under header always: 1. Perform all combine and header manufacturer safety precautions for servicing header. 2. Insert stop to prevent movement of header. 3. Set combine parking brake. 4. Turn off combine and remove key from ignition. 5.
  • Page 25: Troubleshooting-Sensors And Harnesses

    All of the above are correct Harness & combine connections pass test. If you have a Headsight Sensor tester, Verify sensor is connected to extension If sensor cannot be adjusted to achieve use it to test the sensor. For all other:...
  • Page 26: Troubleshooting By Symptom

    Troubleshooting by Symptom Nearly every problem with the header control system on AGCO combines may be resolved by one of the following simple steps: • Make sure each sensor meets basic requirements discussed in Advanced Info section • Properly calibrate Insight box •...
  • Page 27 Symptom Problem Solution AHHC Diagnostics Combine will not calibrate Insight not calibrated Calibrate Insight Insight Outputs incorrect See: Reading Voltages: Outputs Combine Problem Repair Combine No automatic operation height or tilt Wiring is not connected properly Check wiring from sensor to combine Header control is not enabled with cab See Operation section of this manual controls...
  • Page 28 Symptom Problem Solution Lateral Tilt Diagnostics Head rocks side to side Poor Insight calibration Recalibrate Insight box and combine lateral tilt Combine tilt sensitivity to high See Settings section of this manual Adjust tilt sensitivity PWM flow rate to high See Settings section of this manual Decrease PWM settings Header tips wrong way...
  • Page 29 Reversed polarity to hall-effect sensors may cause this symptom Individually disconnect sensors to isolate problem – screen will regain contrast when faulty sensor is disconnected Short in sensors powered by Insight Correct short in wiring and clear error codes Control box failure Contact Headsight...
  • Page 30: Troubleshooting By Insight ® Error Codes

    Sensor failure See sensor troubleshooting instructions Contact Headsight Control box /wiring failure Incorrect number of sensors selected Go to >>Setup>>System Select and in setup choose the correct number of sensors Left sensor detected but not expected...
  • Page 31 See sensor troubleshooting Sensor failure instructions Control box /wiring failure Contact Headsight Incorrect number of sensors selected Go to >>Setup>>System Select and in setup choose the correct number of sensors Left Center sensor detected but not...
  • Page 32 Sensor failure See sensor troubleshooting instructions Control box /wiring failure Contact Headsight Incorrect number of sensors selected Go to >>Setup>>System Select and in setup choose the correct number of sensors Center sensor detected but not...
  • Page 33 See sensor troubleshooting Sensor failure instructions Control box /wiring failure Contact Headsight Incorrect number of sensors selected Go to >>Setup>>System Select and in setup choose the correct number of sensors Right Center sensor detected but not...
  • Page 34 See sensor troubleshooting Sensor failure instructions Control box /wiring failure Contact Headsight Incorrect number of sensors selected Go to >>Setup>>System Select and in setup choose the correct number of sensors Right sensor detected but not...
  • Page 35 Turn the Tilt sensitivity knob in the cab to Maximum CW. Read under Tilt Sensitivity greater than >>Diagnostics>>Detailed Diag.>>Tilt Sens In, on the Insight box Reading between . Call Headsight for instructions Reading > V, Combine problem- Check wiring on combine...
  • Page 36: Schematics

    Schematics The Insight Harness schematic is the main harnesses used for all applications in this manual, each uses one of the following valve harnesses depending on your steering device. The following schematics are provided for troubleshooting and installation purposes only. Unauthorized uses, such as using them to replicate harnesses for resale, are strictly prohibited under copyright law.
  • Page 37: Insight Adapter Harness : Corn

    Insight Adapter Harness : Corn...
  • Page 38: Insight Harness : Platform

    Insight Harness : Platform...
  • Page 39: Parts

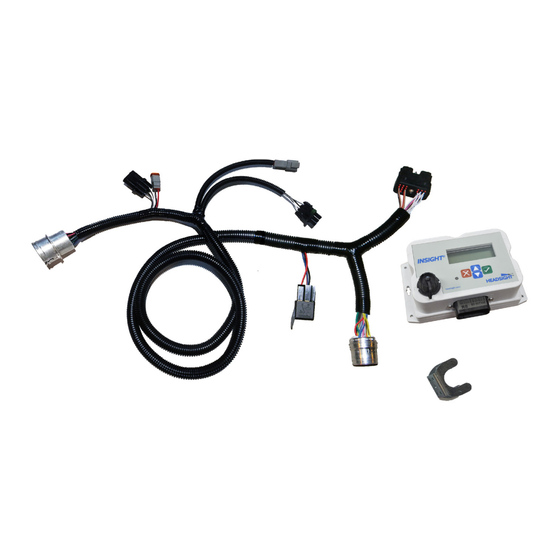

    Parts Insight and Harness ITEM QTY. PART NUMBER DESCRIPTION HT9814-HDR Platform Adapter Harness QC0-AG31-31Q Corn Adapter Harness HT2259 Quick Coupler Safety Clip Insight Insight...
  • Page 40 This Page Is Intentionally Left Blank...
  • Page 41: Statement Of Limited Warranty

    Headsight is for the sole purpose of identifying such goods and shall not create an express warranty that the goods shall conform to such description.
  • Page 42 574.546.5022 • 574.546.5760 4845 3B Rd • Bremen, IN 46506 info@headsight.com www.headsight.com...
