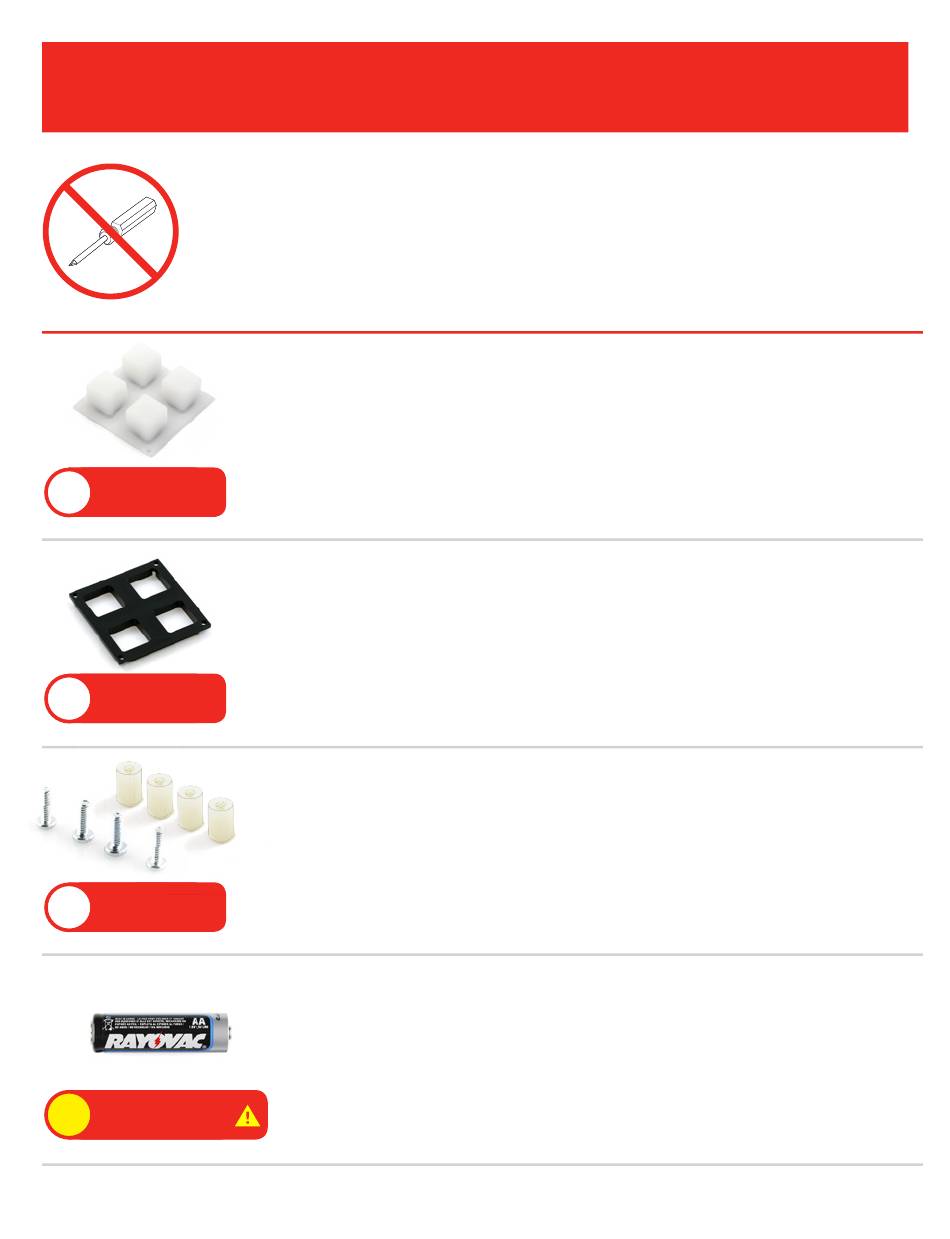

FINAL ASSEMBLY

No screwdriver necessary.
Please only hand-tighten the screws and standoffs.
18
Button Pad
19
Bezel
20
Screws x 4
21
AA Batteries x 2
Page 12
Button Pad (game control): Attach to top. Lay rubber button
pad over LEDs.
Bezel (holds button pad): Attach to top. Lay bezel over button
pad, with notches for the screws pointing up.
Standoffs and screws
through the bezel and button pad, then twist standoffs onto
the protruding screw. Hand tighten.
AA Batteries (power source): Insert the batteries, following
"+" and "-" indicators on the board. Turn on the board and
verify the LEDs are flashing.
[ STEPS 18 T0 21 ]
(mechanical): Insert the screws
