Flex™ IO Isolated Universal Input Module
3-8
User's Manual Pub. 0300231-03 Rev. A
[Name of remote communication module]:e:x.Data[0 to 184]
e = IF8IU slot number
x = Image Type (i.e. C, I, or O)
Note: 185 words are allocated by the Generic Flex Module profile, but only
49 are actually used by the IF8IU module for configuration.
In the example above, the configuration tags for the first IF8IU module would appear as
shown in the image below.

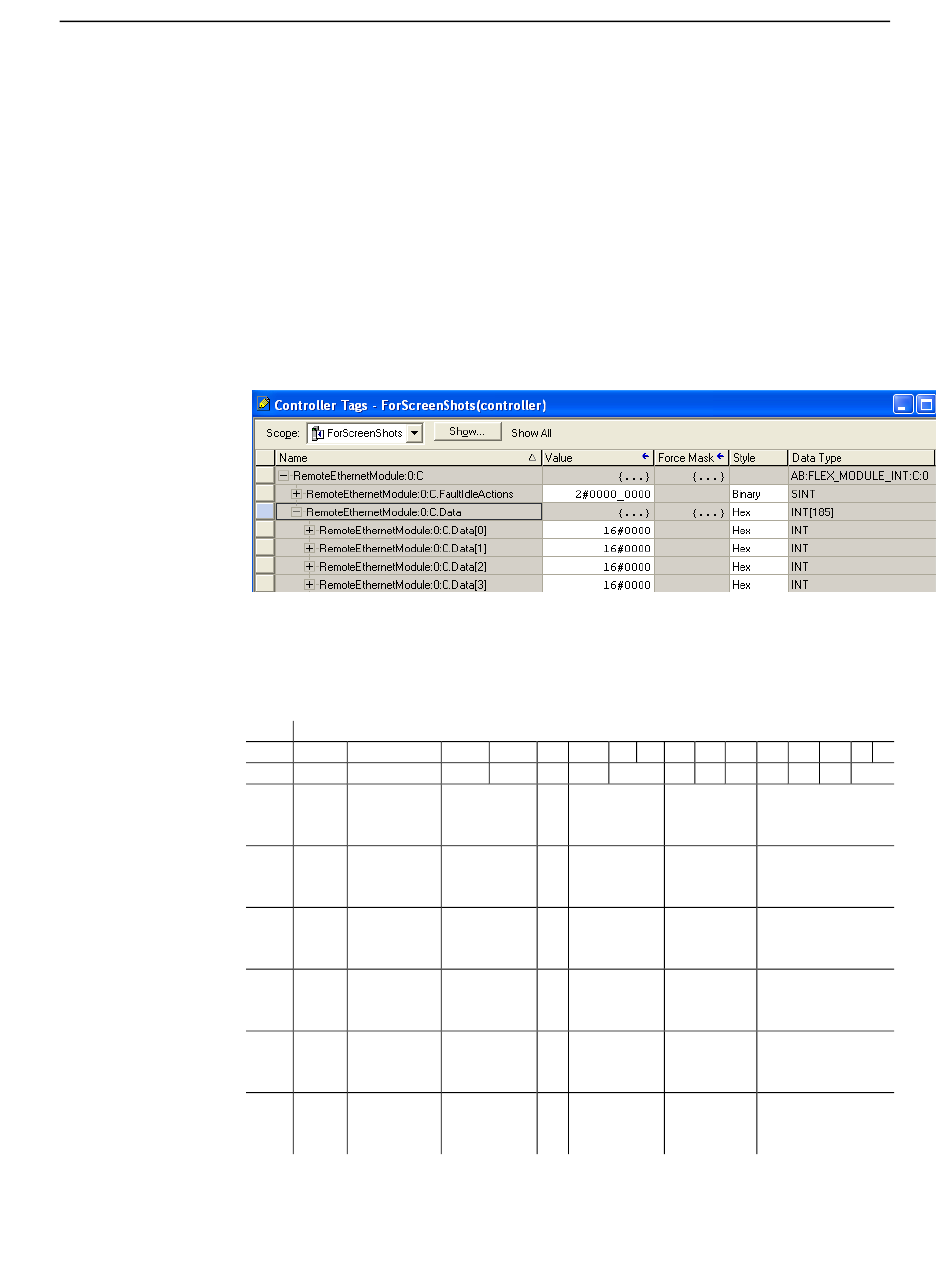

Figure 3-2 (Configuration Tags Example)
Note: The slot number is "0" and the Image type is "C" for configuration.
The following table describes the configuration settings for the 1794sc-IF8IU module.
Table 3-1 (Configuration Table)
Usage (16 bit words):
15 14
1 1
C:0 R R
C:1 Temp Disable
Units CJC
Ch0 Ch0
C:2 Temp Disable
Units CJC
Ch1 Ch1
C:3 Temp Disable
Units CJC
Ch2 Ch2
C:4 Temp Disable
Units CJC
Ch3 Ch3
C:5 Temp Disable
Units CJC
Ch4 Ch4
C:6 Temp Disable
Units CJC
Ch5 Ch5
13 12 11 10 9
F7 F6 F5 F4 R
Open Data
1
Circuit R Format
Ch0 Ch0
Open Data
1
Circuit R Format
Ch1 Ch1
Open Data
1
Circuit R Format
Ch2 Ch2
Open Data
1
Circuit R Format
Ch3 Ch3
Open Data
1
Circuit R Format
Ch4 Ch4
Open Data
1
Circuit R Format
Ch5 Ch5
8 7 6 5 4 3
1 1 1
R R F3 F2 F1 F0 R
Input Input
Filter Type
Ch0 CH0
Input Input
Filter Type
Ch1 CH1
Input Input
Filter Type
Ch2 CH2
Input Input
Filter Type
Ch3 CH3
Input Input
Filter Type
Ch4 CH4
Input Input
Filter Type
Ch5 CH5
2 1 0
1
