Section 3.4 Module Configuration - Spectrum Controls 1794 User Manual

Chapter 3: Configuring the 1794sc-IF8IU for ControlLogix/CompactLogix
Name the module
Enter "Input Data – INT" for
Comm. Format
Enter module slot #
Enter the input size
(Always 8 for the IF8IU)
Section 3.4
Module
Configuration
User's Manual Pub. 0300231-03 Rev. A

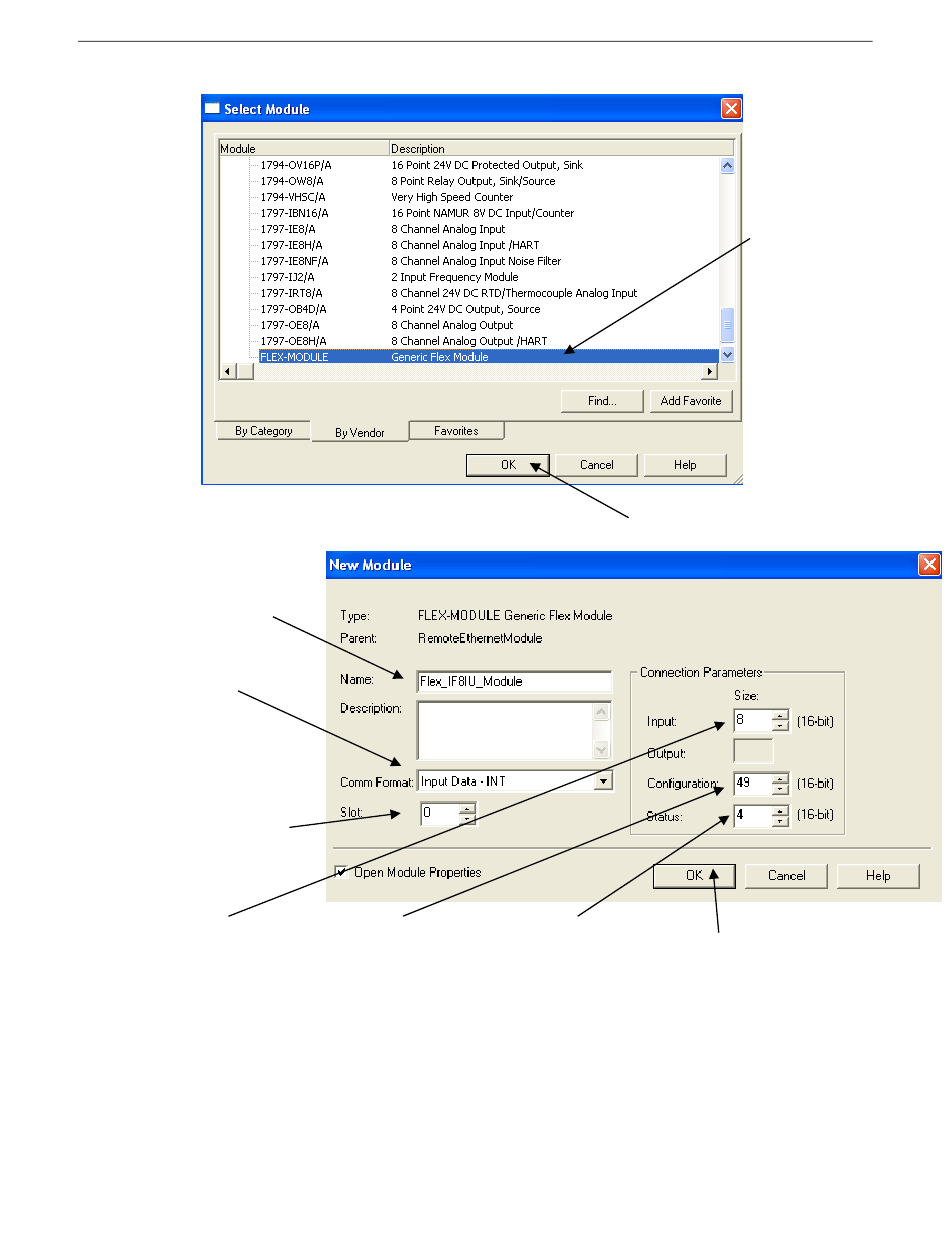

3. Configure the Generic Flex Module (i.e. 1794sc-IF8IU)
Enter the config. size
(Always 49 for the IF8IU)
The addition of the Generic Flex Module profile makes it possible to enter the
configuration data for the IF8IU module. The configuration tags for the IF8IU are
located under the controller tags. The following figure describes the tag structure
allocated by the Generic Flex Module profile.
Click OK
Enter the status size
(Always 4 for the IF8IU)
3-7
Select Generic Flex
Module
Click OK
