Chapter 3: Configuring the 1794sc-IF8IU for ControlLogix/CompactLogix
User's Manual Pub. 0300231-03 Rev. A
If you plan to use the Flex Control Net adapter, you will need to install
!
the 1794sc-IF8IU EDS file before scheduling the network. The latest
EDS files can be found at (www.spectrumcontrols.com).
Attention
1.

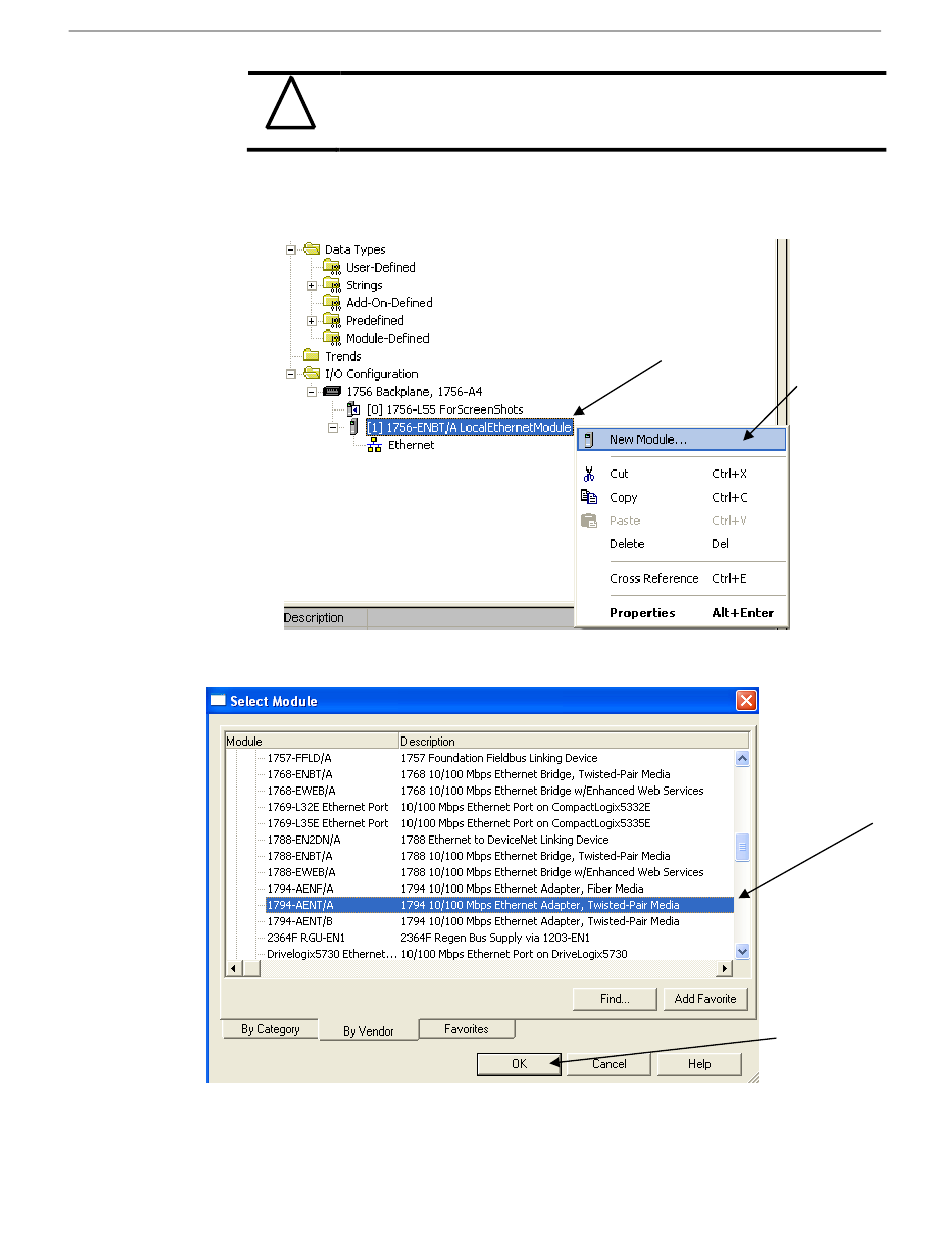

Select a New Module for the I/O Configuration.
2.
Select the module type from the Select Module Type pop-up.
3.
Configure the remote Ethernet communication module.
Right-click on the local
communication module
3-5
Select New Module
Select the remote Ethernet
communication module.
Click OK
