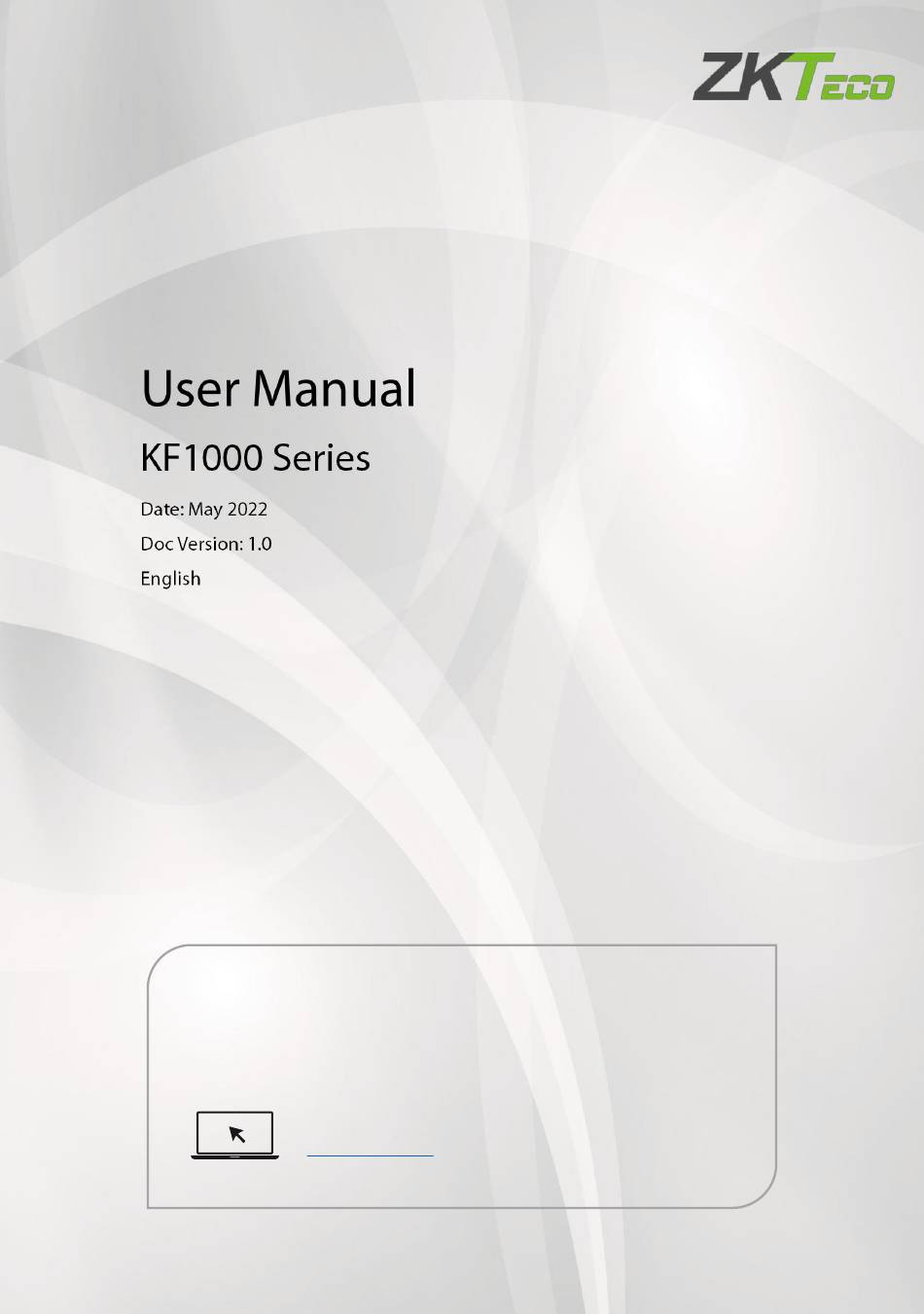

Product Name and Model Number
Thank you for choosing our product. Please read the instructions
carefully before operation. Follow these instructions to ensure that the
product is functioning properly. The images shown in this manual are for
illustrative purposes only.
| 1
P a g e
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco KF1000 Series

Summary of Contents for ZKTeco KF1000 Series

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 2 User Manual Copyright © 2022 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company"...
  • Page 3 The entire risk as to the results and performance obtained from using the information is assumed by the user. ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect, special, or exemplary damages, including,...
  • Page 4 ZKTeco shall in no way be responsible (i) in case the machine/unit/ equipment malfunctions due to any non-compliance of the instructions contained in this manual (ii) in case of operation of the machine/unit/...
  • Page 5 KF1000 Series User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
  • Page 6 The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 7: Table Of Contents

    4.2.1 DEVICE INFORMATION........................18 4.2.2 DEVICE CAPACITY ......................... 19 4.2.3 FIRMWARE INFORMATION ......................19 4.3 U ........................20 ANAGEMENT 4.3.1 ADD USER............................20 4.3.2 SEARCH FOR USERS........................21 4.3.3 EDIT USER............................21 4.3.4 DELETING USERS ...........................21 P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 8 5 CONNECT TO ZKBIOACCESS IVS SOFTWARE ..........39 5.1 S ..................39 ET THE OMMUNICATION DDRESS 5.2 A ..................... 40 EVICE ON THE OFTWARE 5.3 A ..................41 ERSONNEL ON THE OFTWARE P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 9: Overview

    User Manual Overview 1.1Introduction KF1000 series is the innovative visible light facial recognition reader dedicated to InBio series biometric controller to adopt facial recognition technology, offering one of the fastest, most stable, most accurate facial recognition experiences in the industry.

  • Page 10: Appearance

    KF1000 Series User Manual 1.3Appearance P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 11  pressing and holding the Reset Button for 5 seconds, and then logging in again with the initial password. This function does not have any clear registered user data. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 12: Terminal And Wiring Description

    Table 1-2 Description of Terminal and Interfaces Name Interface Description Power 12V DC Input Note: Minimum AC adapter:12V, 1.5A, +12V Recommended AC adapter:12V, 3A. +12V Wiegand Out WD2 Wiegand Output2 Wiegand Output1 Grounding P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 13: Wiring Description

    To share the power with other devices, use an AC adapter with higher  current ratings. Users need to configure their own suitable power adapter according to the  product power specifications. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 14: Inbio Wiring

     connecting with the InBio series controller. After the controller sends the data to the KF1000 series device, the user can perform face verification on the device. It is also possible to connect the reader with the input device and...

  • Page 15: Dm10 Wiring

    2.2.3 DM10 Wiring Figure 1-4 DM10 Wiring Notes: The DM10 can only be used in software if it is connected to the KF1000 series  via RS485. You need to manually enable the DM10 function on the Webserver to access ...

  • Page 16: Installation Set-Up

    Step 1: Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. Step 2: Fix the back plate on the wall using wall mounting screws. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 17 Figure1-5 KF1000 Series Installation Note: The installation method of KF1200 is the same as that of KF1100. Only  KF1100 is used as an example, and will not be repeated here again. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 18: Configuration Via Webserver

    Login to the WebServer After opening the webserver login page. You may input the username which is [Admin] by default. And the default password for the new user is [admin@123]. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 19: System Information

    The System Information includes the device, device capacity and firmware information. 4.2.1 Device Information The Device Information displays the Device Name, Serial Number, MCU Version, MAC Address, Face Algorithm, Platform Information, Manufacturer, and Manufacture Date. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 20: Device Capacity

    Face, the used/max capacity of Card, and the used/max capacity of T&A Record. 4.2.3 Firmware Information Displays the firmware version and other version information of the device. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 21: User Management

    You can manage the basic information of the registered users, including User ID, Name, Rights, Card Number, and Verification Mode in the User Management. 4.3.1 Add User Click [User Mgt.] > [All Users] > [New User]to register a new user. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 22: Search For Users

    ID cannot be modified when editing a user’s detail. 4.3.4 Deleting Users Choose a user from the list and select Delete User, all information of the user will be deleted. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 23: Advanced Settings

    Subnet Mask: The default value is 255.255.255.0, it can be modified  according to the available network parameters. Gateway: The default value is 0.0.0.0, it can be modified according to  P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 24: Cloud Server Setting

    Cloud Server Port: Port used by the ADMS server is required.  HTTPS: It is an HTTP channel with security as its goal. Based on HTTP,  transmission encryption and identity authentication ensure the security P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 25: Wireless Network

    When Wi-Fi is enabled, you need to enter the SSID and Password in the  text box and then click [Confirm]. After successful verification, the connection status will display  “Connected”. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 26: Data/Time Settings

    Usually, the time will be one hour forward in summer. This enables users to sleep or get up earlier, and also reduce device's lighting to save power. In autumn, the time will resume the standard time. Regulations are different in P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 27: System Settings

    100. Language: To select the language of the device.  4.4.6 Serial Comm. Settings Serial Comm function facilitates to establish communication with the device through a serial port (RS485). P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 28 P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 29: Face Parameters

    The valid value ranges from 0 to 100. The higher the thresholds, the lower the misjudgment rate and higher the rejection rate, and vice versa. The default value of 63 is recommended. Face Enrollment Threshold: During face enrollment, 1:N comparison is  P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 30 LED Light Trigger Threshold: This value controls the turning on and  off of the LED light. The larger the value, the LED light will turn on or off more frequently. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 31 Wide Dynamic Range (WDR), which balances light and extends image  visibility for surveillance videos under high contrast lighting scenes and improves object identification under bright and dark environment. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 32: Autotest

    User Manual 4.4.8 Autotest Test Face: To test if the camera functions properly by checking the pictures  taken to see if they are clear enough. 4.4.9 Wiegand Setup P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 33 2 to 17 bits, while the 34 bit is the odd parity bit of the 18 to 33 bits. The 2 to 25 bits are the card numbers. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 34 The 2 to 4 bits are the manufacturer codes. The 5 to 16 bits are the site codes, and the 21 to 36 bits are the card numbers. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 35 "C" denotes the card number; "E" denotes the even parity bit; "O" denotes the odd parity bit; "F" denotes the facility code; "M" denotes the manufacturer code; "P" denotes the parity bit; and "S" denotes the site code. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 36: Device Management

    (this function does not clear registered user data). Delete All Data: To delete information and access records of all registered  users. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 37: Update Firmware

    Make sure the size of the upgrade file is less than 200M.  If an upgrade file is needed, please contact our technical support. Deny  firmware upgrade under normal circumstances. Do not power off during the upgrade process.  P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 38: Change Password

    [Reset Password] to restore the device to the factory password. Note: The password must be no less than 8 characters, and must contain special  characters, numbers an upper and lower case letters. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 39: Operation Log

     Logs on the page and click [Download] to download the operation logs. 4.5.5 Download Firmware Logs Users can download firmware logs here, including main.log, biometric.log  and devs.log. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 40: Connect To Zkbioaccess Ivs Software

    Click [Advanced Settings] > [COMM.] > [IP Address] to set the IP address and then click [Advanced Settings] > [Cloud Service Setup] to set cloud service address on the WebServer. As shown in the figure below. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 41: Add Device On The Software

    Click [Add] in an operation column, a new window will pop-up. Select Icon Type and Area from each dropdown and then click [OK] to add the device. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 42: Add Personnel On The Software

    Click [Access] > [Device] > [Device] > [Control] > [Synchronize All Data to Devices] to synchronize all the data to the device including the new users. For more details, please refer to the ZKBioAccess IVS User Manual. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 43 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved.
