I n s t a l l a t i o n
G u i d e
ULTIMA Series

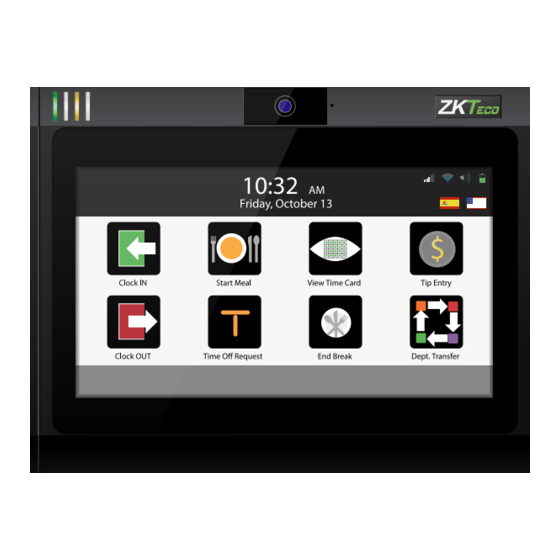

Time & Attendance Terminal
This guide provides installation instructions only. For information regarding actual operation and configuration of the ULTIMA Time & Attendance termial, refer to the user manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultima Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZKTeco Ultima Series

  • Page 1 I n s t a l l a t i o n G u i d e ULTIMA Series Time & Attendance Terminal This guide provides installation instructions only. For information regarding actual operation and configuration of the ULTIMA Time & Attendance termial, refer to the user manual.
  • Page 2: Table Of Contents

    Contents Packing list Installing the relay module ......................
  • Page 3: Packing List

    Packing list Baseline Recommended height from the ground is 1.2 m and can be adjusted according to the personnel average height. Mounting Hole Mounting Hole Mounting Hole Mounting Hole (Optional modules) (Optional modules) Ultima Mounting template (Only for reference) WiringHole Instruction for using this template: Before fastening the device, past this template onto the required installation place, and then drill holes and lay cables according to...
  • Page 4: Pre-Installation

    Pre-Installation...
  • Page 5: Required Tools

    Required tools IMPORTANT To avoid damaging the main board, always wear an anti- static wrist strap when touching the main board in any way, including connecting and disconnecting wires. • Do not remove the cover assembly from its anti-static packaging until you are ready to install the device.
  • Page 6: Installation Environment

    Installation Environment Location Lux References Guide • Ultima is designed for any internal environ- ment. In rare cases, user sites may contain agents in nature that can corrode the electron- ics assemblies in these devices. In the event of this situation, users must move the devices to a Minimum 10ft (3m) 10 LUX 1200+ LUX...
  • Page 7: Planning

    Planning Required personnel Power sources and connections Depending on the modules that you purchased, and the implementation planned for your site, you will require the following: Requirements: • A licensed electrician to install or move AC outlets and power cables. •...
  • Page 8: Optional Modules

    Optional Modules If you plan to install certain optional modules to the Ultima, follow the step-by-step instructions in this guide. Note the following: • The optional modules have components and cables that must be attached to the Ultima in a certain order during specific stages of the installation. •...
  • Page 9: Preparing The Location

    Preparing the location Determine the power source for your site Before you start the installation, plan with your electrician (if required for the power option that you choose) how the Ultima will connect to the power at your site. Choose from the following options and review the associated notes. Power options •...
  • Page 10: Installation

    Installation...
  • Page 11: Marking Holes

    Marking holes Mark insertion points for the base The mounting template is printed on a sheet of paper that is included in the package. Use that template to mark the areas of the wall where you plan to install the Ultima. Baseline Recommended height from the ground is 1.2 m and can be adjusted according to the personnel average height.
  • Page 12: Drilling Holes And Fixing Plastic Anchors And Upper Screws

    Drilling holes and fixing plastic anchors and upper screws Drill 1/4 inch holes and insert plastic Fix the upper 2 screws (base only installation) on the wall. anchors flush with the wall surface. Baseline Recommended height from the ground is 1.2 m and can be adjusted according to the personnel average height. Mounting Hole Mounting Hole Mounting Hole...
  • Page 13: Opening Ultima Front Cover

    Opening Ultima front cover Step 1 Step 2 Press down the tabs simultaneously and gently open it about 1.5 inch Pull the door assembly UP about 1 inch to open it completely. Caution Do not apply force. Caution Do not apply force. ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 14: Mounting On Wall

    Mounting on wall Align and hook up the Ultima on to the wall Fasten it with 2 bottom screws. ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 15: Installing The Optional Modules To The Base

    Installing the optional modules to the base PoE+ Keypad Finger Print Reader Relay Battery Pack RFID module Barcode module Magnetic Module ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 16: Motherboard Connectors

    Motherboard connectors RS485 Battery Speaker Keyboard USB Reserve Display POWER PORT 12 V 2A Power OUT 12 V 3A Power IN USB Reserve Relay Module RFID RFID Module Barcode/Magnetic Reader Wiegand IN WG_IN Fingerprint Module Ethernet Port USB Port USB Reserve PoE Module (optional) Camera SD Card...
  • Page 17: Installing The Relay Module

    Installing the relay module Place the relay module in the back shell and fix it with 4 screws Align the relay circuit board connectors facing center. Secure it with 4 screws. ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 18: Connecting The Relay Module

    Connecting the relay module Connect the cables between the relay module and the main board 12V 2A power Relay module connector port connector Relay module port connector 12V 2A power out POWER PORT USB Reserve RFID WG_IN Motherboard USB Reserve ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 19: External Plug And Indicators

    External plug and indicators LED Indicators AC Power Battery Power Network User configurable Optional Camera Reset USB Plug Speaker ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 20: Ultima Configuration Options

    Ultima configuration options Base + Fingerprint reader with RFID Base + Fingerprint reader with RFID Card Reader Magnetic Barcode Base Card Reader Card Reader Base + RFID Card Reader Base + RFID Card Reader Magnetic Barcode The keypad can be added Card Reader Card Reader on any configuration...
  • Page 21: Installing A Single Module

    Installing a single module CONFIGURATIONS Module housing End Cap Module face-plate Remove the end-cap from the base by Remove faceplate from the housing by sliding it out forward of the base unit pulling it forward. (apply gentle force) ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 22 CONFIGURATIONS Pan head screws (supplied) Secure module housing to the base Insert back the end-cap first * component with 2 screws. * Fingerprint and RFID module only Place the face-plate panel back on to the housing and push it gently until it snaps. ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 23: Installing Dual Modules

    Installing dual modules CONFIGURATIONS Fingerprint or RFID module must be installed first. Remove the end-cap from the base by sliding it out forward of the base unit Secure the first module housing to the base component with 2 screws. Secure the second module housing to the first module with 2 screws.
  • Page 24: Connecting The Module Wires To The Motherboard

    Connecting the module wires to the motherboard RFID Connector Barcode & Magnetic card reader Connector Fingerprint Connector POWER PORT USB Reserve RFID WG_IN Wire Clamps USB Reserve Route the module cable(s) as shown Secure the wires with the wire clamps Motherboard ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 25: Installing Internal Poe Module

    Installing internal PoE module Align 5 pin and 4 pin connectors to corresponding plug connectors. Gently push-in to connectors and secure it with 2 screws. 5 pin Connector 4 pin Connector ULTIMA INSTALLATION GUIDE | 2019 - v1...
  • Page 26: Installing The Keypad And Connecting It To The Motherboard

    Installing the keypad and connecting it to the motherboard Feed the keypad wire through the bottom hole of the base unit. Align the keypad module’s 3 screw holes with the base unit and secure them together. Plug in 8 pin connector to the motherboard Keypad Connector RFID...
  • Page 27: Connecting Ethernet Cable

    Connecting ethernet cable CAT 5e CAT 5e CAT 5e CAT 5e Ethernet Connector POWER PORT USB Reserve RFID Route the Ethernet cable RJ45 through the back top or bottom hole* WG_IN *if the keypad is not going to be installed. Connect to Ethernet port on the motherboard USB Reserve (figureX) and the other end to switch or hub.
  • Page 28: Installing Internal Battery Pack

    Installing internal battery pack Battery Housing Cable Clamp Battery Connector Remove the battery housing cover Peel off the paper of the double-sided tape and place the battery pack inside the battery housing RFID Place battery housing covers back to the unit and secure it with 4 screws.
  • Page 29: Connecting Ac Power Supply

    Connecting AC power supply Power plug Adaptor Power IN Connector POWER PORT Route the Ethernet cable RJ45 through the back top or bottom hole* USB Reserve RFID *if the keypad is not going to be installed. Connect the power plug adaptor external WG_IN power supply plug and other end to the mother board.
  • Page 30: Troubleshooting

    Troubleshooting Issue Probable Causes Corrective Action If the Ultima is powered using standard AC power cable, the Check the connections to the main board and the AC outlet. power supply is not properly plugged into the main board, the Note: Do not plug the power cord into the AC outlet until you en- AC outlet, or both.
  • Page 31 ZKtechnology.com © Copyright 2020. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for identifi cation purposes only and may be the trademarks of their respective owners. All specifi cations are subject to change without notice. All rights reserved.
