Quick Start Guide

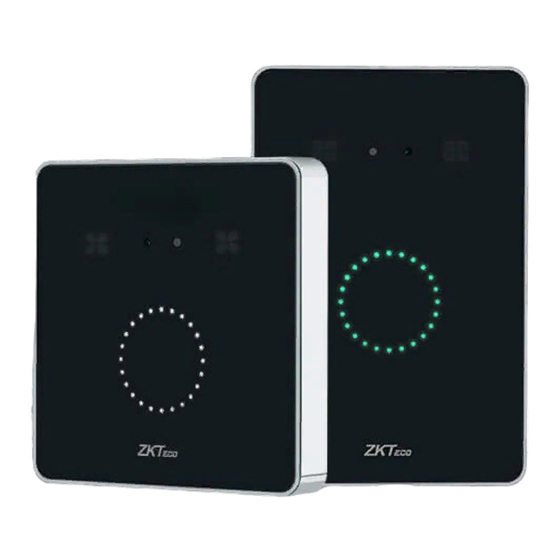

KF1000 Series
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco KF1000 Series

Summary of Contents for ZKTeco KF1000 Series

  • Page 1 Quick Start Guide KF1000 Series Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

  • Page 2: Product Overview

    1.Product Overview 3.58"(91.0mm) 0.54" (13.8mm) 3.15"(80.0mm) 0.54" (13.8mm) ★ Note: Features and parameters with mark are not available in all devices.

  • Page 3: Installation Environment

    Back Plate 3.25"(82.5mm) 3.03"(77.0mm) 0.51" (13.1mm) 0.51" (13.1mm) Discription Discription Flash Speaker Camera Tamper Switch Restart Button Near-Infrared Flash LED Indicator Reset Button Receive Antenna Mounting Hole Wiring Hole Card Reading Area 2.Installation Environment INSTALL INDOORS AVOID INSTALLATION AVOID DIRECT AVOID USE OF ANY ONLY NEAR...

  • Page 4: Device Installation

    3.Device Installation Install on the wall ① Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. ② Secure the back plate on the wall with the wall mounting screws. ③ After passing the wires through the wiring hole and connecting them to the device, and then attach the device to the back plate from top to bottom.

  • Page 5: Standalone Installation

    4.Standalone Installation InBio Series STATE RS485 RS485 Wiegand SWITCH TCP IP Door Sensor Router TCP IP KF1100 KF1200 WIFI TCP IP 5.Terminal Block Power +12V +12V Wiegand Out Beep BEEP Red LED LED-R Green LED LED-G ALARM Alarm 485A RS485 485B RJ45-1 RJ45-2...

  • Page 6: Power Connection

    6.Power Connection AC Adapter DC12V Minimum AC adapter :12V, 1.5A, Recommended AC adapter 12V 3A Use an AC adapter with a higher current rating to share power with the other devices. 7.InBio Connection +12V +12V BEEP LED-R LED-G ALARM STATE 485A RS485 RS485...
  • Page 7 1. You need to manually enable the DM10 function on the WebServer to access. The path: [Advanced Settings] > [Serial Comm] > [Serial Port] > [Dm10]. 2. A KF1000 series only supports connecting one DM10. 3. Set the 485 address of DM10 to 1.

  • Page 8: Ethernet Connection

    9.Ethernet Connection Connect the device and the computer software over an Ethernet cable. As shown in the example below: Default IP address: 192.168.1.201 IP address : 192.168.1.130 Subnet mask 255.255.255.0 Subnet mask : 255.255.255.0 On the WebServer page, click [Advanced Settings] > [COMM.] > [IP Address] to change the IP address and then click [Conf irm].

  • Page 9: Quick Start

    11.Quick Start UserRegistration User Authentication Verified ViewRecords 1. User registration Method 1: Registering on the WebServer Click [User Mgt. ] > [All Users] > [New User] to register a new user on the WebServer. Enter the User ID, Name, Password, Card, setting user role and access control role. Enter the User Info.
  • Page 10 Method 2: Registering on the software (ZKBioAccess IVS) 1. Click [Advanced Settings] > [COMM.] > [IP Address] to set the IP address and then click [Advanced Settings] > [Cloud Service Setup] to set cloud service ad- dress on the WebServer. As shown in the figure below. 192.168.163.58 Enter the IP Info.

  • Page 11: User Authentication

    2. Click [Access] > [Device] > [Device] > [Search] to search the device on the software. When an appropriate server address and port is set on the device, the searched devices are then displayed automatically. 3. Click [Add] in an operation column, a new window will pop-up. Select Icon Type and Area from each dropdowns and click [OK] to add the device.

  • Page 12: Factory Reset

    3. View records View records on the software Click [Access] > [Reports] > [All Transactions] on the software to view the records. 12.WIFI Settings Click [Advanced Settings] > [WIFI Settings] to enable the Wi-Fi function, set SSID and enter the password. Until the connection status shows “Connected”, which indicates that the WIFI connection is successful.
  • Page 13 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved.
