Glo-Ray
Installation & Operating Manual &
Replacement Parts List
This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you're unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
Burger King

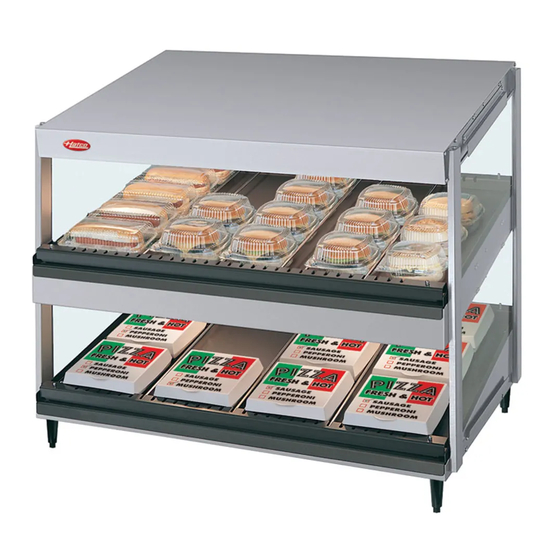

Sandwich Display Warmer
®
GRSDS Series
I&W #07.05.180.00
TM
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.
Advertisement
Table of Contents
Related Manuals for Hatco Burger King Glo-Ray GRSDS Series
Summary of Contents for Hatco Burger King Glo-Ray GRSDS Series
- Page 1 Burger King Glo-Ray Sandwich Display Warmer ® GRSDS Series Installation & Operating Manual & Replacement Parts List I&W #07.05.180.00 Este manual contiene importante información sobre This manual contains important safety information seguridad concerniente al mantenimiento, uso y concerning the maintenance, use and operation of this operación de este producto.
-
Page 2: Table Of Contents
Cleaning ............6 Specifications............2 Display Light Bulb Replacement .....6 Plug Configurations.........2 Accessories ............7 Dimensions............2 Replacement Parts List ........8 Electrical Rating Chart ........3 Hatco Limited Warranty ........11 Installation ............4 Authorized Parts Distributors ....Back Cover Unpacking ............4 Location............4 IMPORTANT OWNER INFORMATION Record model... -
Page 3: Important Safety Information
Plug unit into a properly grounded electrical them to operate safely in Hatco equipment. It outlet of the correct voltage, size and plug is essential to use Hatco Replacement Parts configuration. -
Page 4: Model Description
If the plug and receptacle do not match, contact a qualified electrician to BS 1363 CEE 7/7 Schuko determine the proper voltage and size and install the proper electrical outlet. Receptacle not supplied by Hatco. Figure 2. Plug Configurations DIMENSIONS Width Depth Height... -
Page 5: Electrical Rating Chart
SPECIFICATIONS ELECTRICAL RATING CHART Model Voltage Watts Amps Plug Configuration Shipping Weight GRSDS-36DBK 1980 16.5 NEMA 5-20P 216 lbs. (98 kg) 1920 CEE 7/7 Schuko 216 lbs. (98 kg) 1980 BS 1363 216 lbs. (98 kg) GRSDS-41DBK 1100 NEMA 5-15P 240 lbs. -
Page 6: Installation
INSTALLATION UNPACKING The Burger King Glo-Ray ® Sandwich Display Warmer is shipped with all components pre- assembled. Care should be taken when unpacking shipping carton to avoid damage to unit and components enclosed. WARNING To prevent any injury or damage to the unit do not pull unit by power cord. -
Page 7: Operation
OPERATION GENERAL 3. Adjust the Temperature Controllers as follows: WARNING Unit is not waterproof. DO NOT submerge in To set temperature, turn the red Mode Switch water. Do not operate if it has been submerged counterclockwise to the SP-1 position indicated in water. -
Page 8: Maintenance
To avoid electrical shock or personal injury, do characteristics that will allow them to operate not steam clean or use excessive water on the safely in Hatco equipment. It is essential to use unit. Hatco Replacement Parts when repairing Hatco equipment. -
Page 9: Accessories
ACCESSORIES 4" (102 MM) ADJUSTABLE LEGS CAUTION Leg Adjustment Do not lay unit on the side with the control panel Adjust leg using a or damage to unit could occur. 5/8" (16 mm) open- end wrench and Carefully lay unit on its side. Install legs to bottom of turning bottom of leg unit. -
Page 10: Replacement Parts List
R = Ray S = Sandwich CAUTION - Use of replacement parts other D = Display than those supplied by Hatco Corporation S = Slanted Shelf may result in damage to the unit or injury X = Width in Inches to personnel. - Page 11 REPLACEMENT PARTS LIST PARTS COMMON TO ALL GRSDS MODELS ITEM DESCRIPTION PART NO. QTY. Relay, 10 Amp, SPDT, 24VDC 02.01.061.00 On/Off Toggle Switch R02.19.016.00 Light Socket, Dual with Leads 02.30.045.00 Diode Assembly R02.40.047.00 Divider Rod 04.15.873.00 14-20 05.04.087.00 Rubber Foot Cover 05.06.038.00 Appliance Leg, 4"...
- Page 12 REPLACEMENT PARTS LIST PARTS SPECIFIC TO ALL GRSDS-52DBK MODELS 120V 220V 240V ITEM DESCRIPTION Electronic Temperature Controller 02.01.049.00 R02.01.062.00 R02.01.062.00 Temperature Probe - Bottom Shelf 02.01.056.00 02.01.078.00 02.01.078.00 Temperature Probe - Top Shelf 02.01.057.00 02.01.079.00 02.01.079.00 Blanket Heating Element - Bottom Shelf 02.05.339.00 02.05.361.00 02.05.367.00...
-
Page 13: Hatco Limited Warranty
(4) Years Parts-Only Warranty on accept or reject any such claim in whole or in part. pro-rated terms that Hatco will explain Hatco will not accept the return of any Product at Buyer’s request: without prior written approval from Hatco, and all 3CS and FR Tanks such approved returns shall be made at Buyer’s... - Page 14 NOTES Form No. GRSDSDBKM-0407...
- Page 15 NOTES Form No. GRSDSDBKM-0407...
-
Page 16: Authorized Parts Distributors
