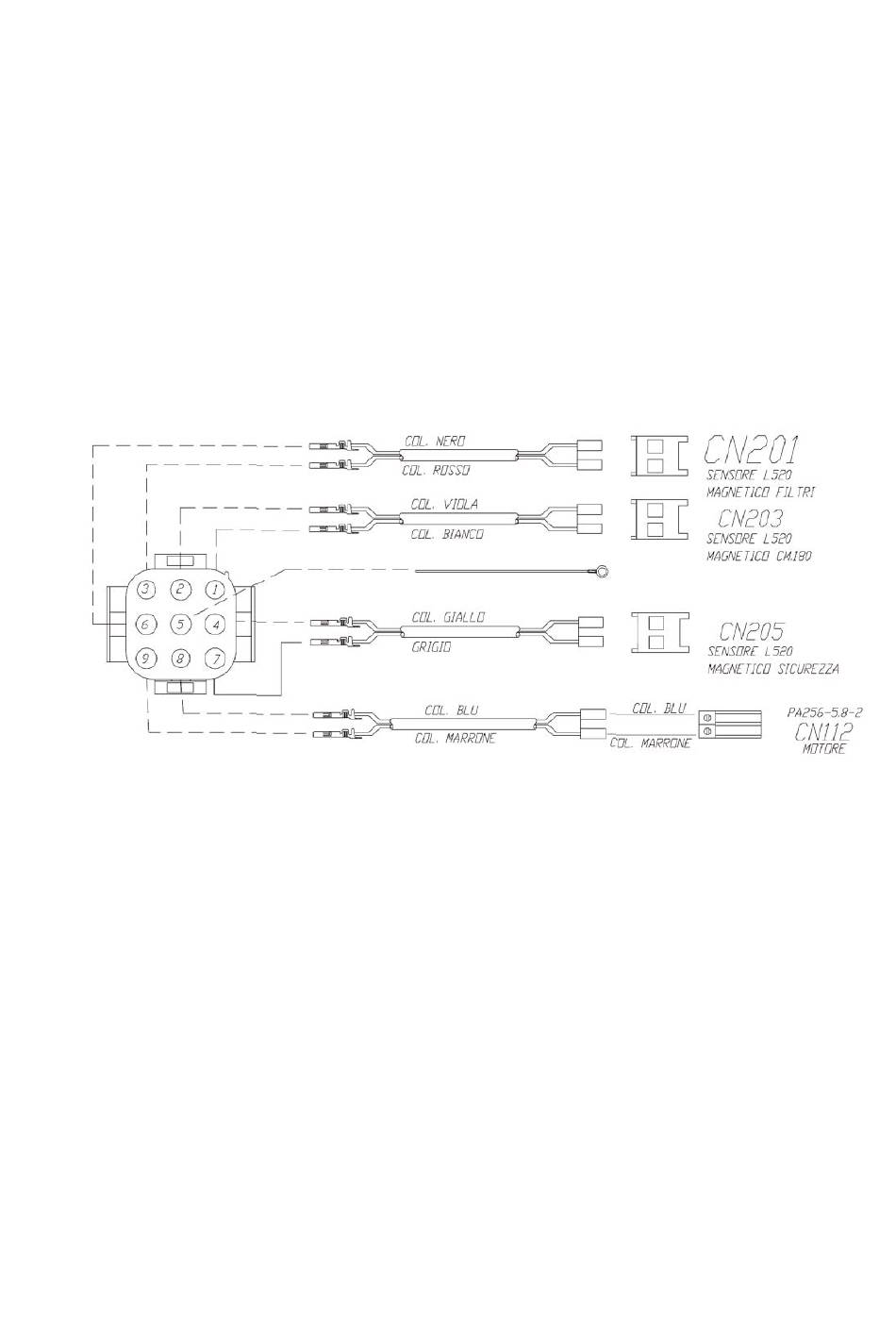

2.3 In the 9-pole connector there are the following wires:
Grease filters magnetic sensor wires
Red colour PIN 3
Black colour PIN 6
Cm 180 magnetic sensor wires
Purple colour PIN 2
White colour PIN 1
Safety magnetic sensor wires
Yellow colour PIN 4
Grey colour PIN 7
Actuator wires
Brown colour PIN 9
Blue colour PIN 8
Ground wires
Yellow/Green colour PIN 5
