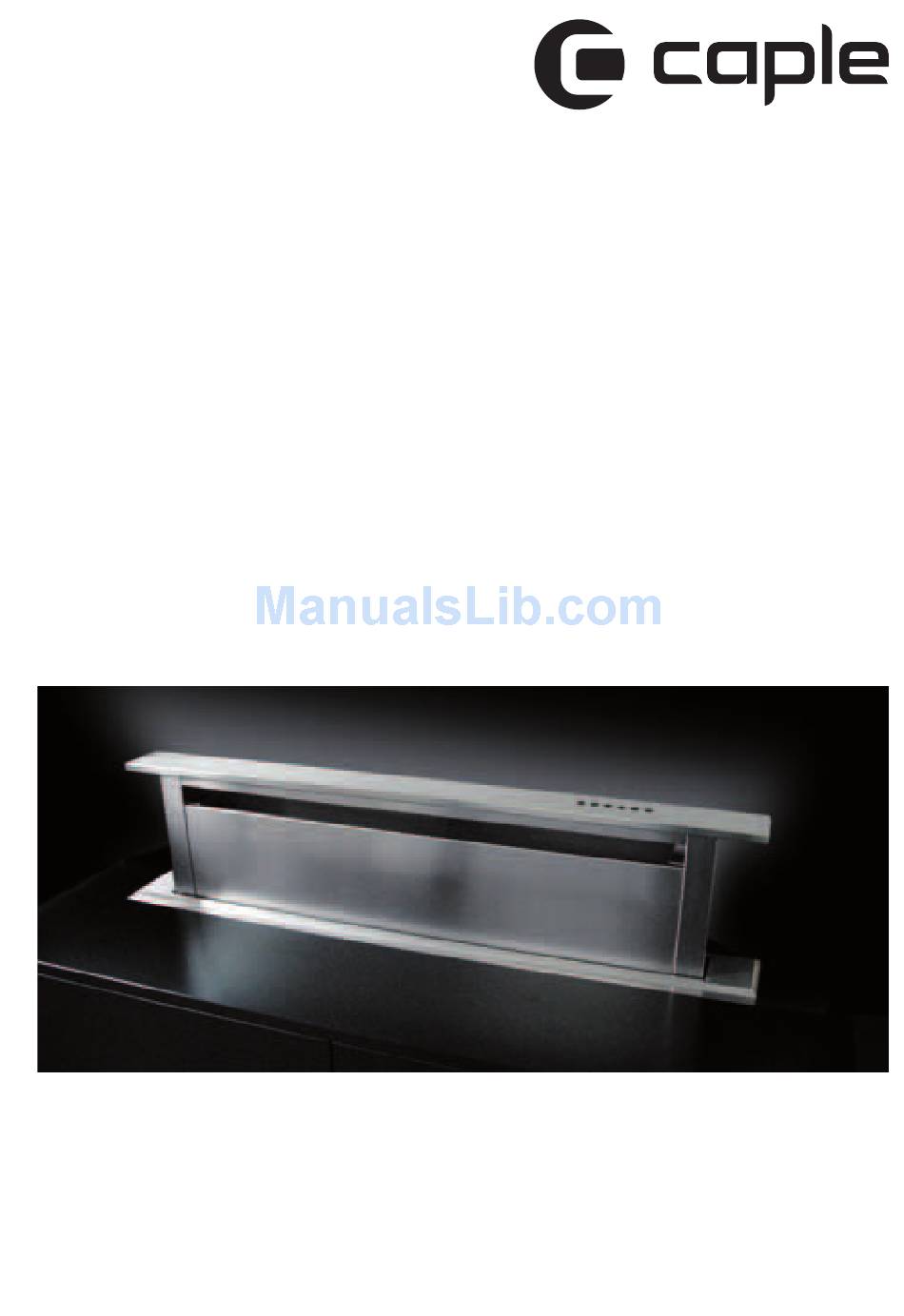

- Page 1 Instruction manual for cooker hoods Model code: BODY / DD600SS BODY / DD900SS Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
- Page 2 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and hu- man health, which could otherwise be caused by inappropriate waste handling of this product.
-
Page 3: Table Of Contents
CONTENTS 1/ SAFETY INSTRUCTION - Description of the appliance 2 / INSTALLING THE HOOD - Mounting the hood - Removal of the filter cartridge - Mounting the filter cartridge - Electrical connection 3 / HOW THE HOOD WORKS 4 / CLEANING THE HOOD 5 / OPERATIONAL ANOMALIES 6 / AFTER SALES SERVICE... -
Page 4: 1/ Safety Instruction
1/ SAFETY INSTRUCTION Important: keep these instructions for use with the appliance. If the appliance should be sold or passed on to others, make sure that the instructions are passed on with it. We thank you for taking note of these suggestions before installing and using the appliance. They have been written for your personal safety and the safety of others. -
Page 5: Description Of The Appliance
1/ SAFETY INSTRUCTION - DESCRIPTION OF THE APPLIANCE... -
Page 6: Installing The Hood
2/ INSTALLING THE HOOD 1) Before starting the appliance installation, please check that all components are not damaged, in such a case contact your retailer and do not carry out installation. Furthermore, please read carefully all of the following installation instructions. - Use an exhausting pipe whose maximum length does not exceed 5 meters. -
Page 7: Removal Of The Filter Cartridge
The downdraft will carry out the calibration of its aspiration panel rising and retracting for some centim- eters. During this phase, the buttons on the push button control panel blink. At the end of the calibration, the aspiration panel gets back to the previous position and the button stop blinking. Wait until the aspira- tion panel stops moving before re-activating the extraction. -
Page 8: Electrical Connection
- ELECTRICAL CONNECTION WARNING: Place the metal box containing the electronic components at a distance of no less than 65 cm from gas-operated cook tops or in any case, 65 cm from the extraction point of the hood. RECOMMENDATION: We recommend installing the metal box containing the electronic components at least 10 cm above floor level and at a suitable distance from all heat sources (e.g. -
Page 9: How The Hood Works
3/ HOW THE HOOD WORKS Model S.DD2 STANDARD VERSION (Fig. 22) A: Extraction panel down/OFF switch This serves to close the extraction panel either completely or in intermediate positions above 180 mm from the cook top. When the extraction panel is being closed, it will remain in opera- tion until it reaches 180 mm above the cook top. - Page 10 Other functions: - After 30 hours of appliance operation, the push button panel indicates saturation of the grease filters by the buttons flashing. To reset, press the timer button. - After 4 hours of continuous operation from the last setting, the appliance turns off and closes automatically.
-
Page 11: Cleaning The Hood
4/ CLEANING THE HOOD Careful maintenance helps guarantee proper operation and good results from an appliance over time. The hood must be unplugged from the electrical power source, both by unplugging the appliance from the socket as well as de-activating the breaker, before removing the metal filters. -
Page 12: Operational Anomalies
5/ OPERATIONAL ANOMALIES SYMPTOM SOLUTION Check that: • There is not a power outage. • A specific speed has actually been selected. • The panel is hung properly. The hood does not • The 9 pole connection is inserted properly. work... - Page 15 14 bis...
