Instruction manual for downdraft hood
Model codes: DD903BK
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Advertisement

loading

Related Manuals for Caple DD903BK

Summary of Contents for Caple DD903BK

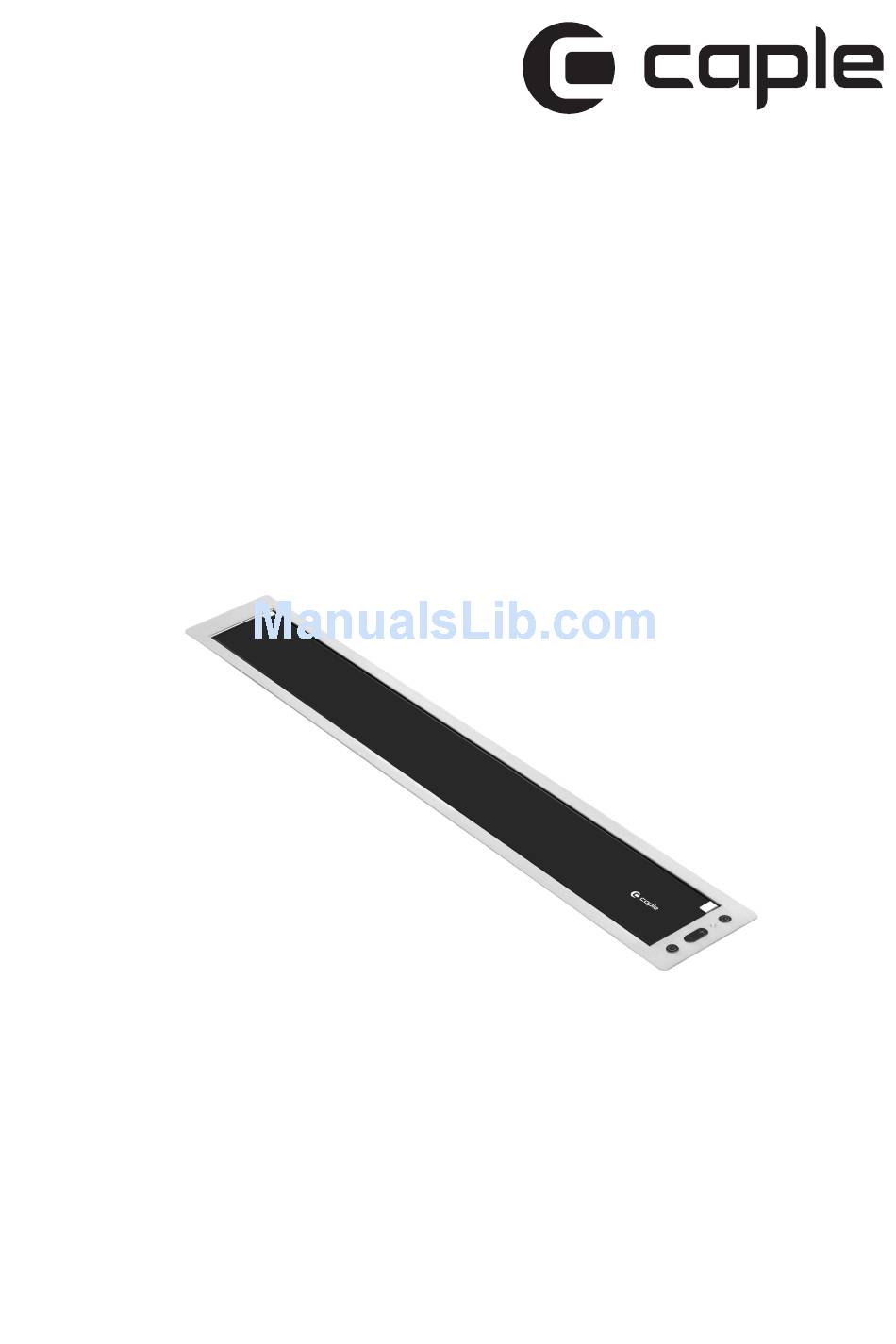

  • Page 1 Instruction manual for downdraft hood Model codes: DD903BK Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
  • Page 2 ● Frying next to the appliance must be done un- The DD903BK is designed so it can be either der constant supervision as hot oils and fats may externally ventilated or re circulated.

  • Page 3: Table Of Contents

    CONTENTS DESCRIPTION OF THE APPLIANCE ..................4 INSTALLING THE DOWNDRAFT...................5 Grease filter removal, mounting the activated charcoal filter ...........6 Electrical connection of the downdraft...................6 HOW THE DOWNDRAFT WORKS ..................8 CLEANING THE DOWNDRAFT.....................9 TROUBLESHOOTING ......................10 AFTER SALES SERVICE ......................10...

  • Page 4: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE LOWER AIR OUTLET BACK AIR OUTLET (Supplied pipe) (Fitting supplied)

  • Page 5: Installing The Downdraft

    Furthermore, please read INSTALLATION KIT WITH DD903BK (See carefully all of the following installation fig. 9). instructions. Then fit the air outlet ducts between the ● Use an air exhausting pipe whose maximum external motor and the downdraft.

  • Page 6: Grease Filter Removal, Mounting The Activated Charcoal Filter

    7, in the case the charcoal filters (RCD), with a nominal residual current not are necessary, install these first as shown in exceeding 30mA. If the power cord is figure 7. damaged, call Caple service to avoid any risk.
  • Page 7 WARNING The downdraft connection to the electrical nework must be carried out only by professional and qualified technicians. The downdraft must be connected to a properly installed and suitable electrical network. The electrical system must comply with VDE0100 standard. DANGER If the cooker hood presents any anomaly, disconnect the appliance or remove the fuse...

  • Page 8: How The Downdraft Works

    HOW THE DOWNDRAFT TIMING As a result of the new EU65 “Energy label” and WORKS EU66 “ Ecodesign” regulations issued by the European Commission, which came into force as from January 1st, 2015 , our products have been adapted to comply with these new requirements. 6- key push button panel (fig.

  • Page 9: Cleaning The Downdraft

    In the recirculation mode, the active CAPP66CF charcoal filters. these charcoal filter must be replaced can be purchased directly from our periodically. website shop @ www.caple.co.uk To remove the charcoal filter first of all Activated charcoal it is necessary to remove the grease filter...

  • Page 10: Troubleshooting

    ● The omnipolar device has not tripped. operation. AFTER SALES SERVICE Any maintenance operation required on your appliance should be carried out by either: ● Your retailer ● An authorised Caple engineer or similar qualified person.
