K-SERIES PUBLIC USE SERVICE MANUAL
MAINTENANCE
DECEMBER 2018
E.

HYDRAULIC CIRCUIT DIAGRAM

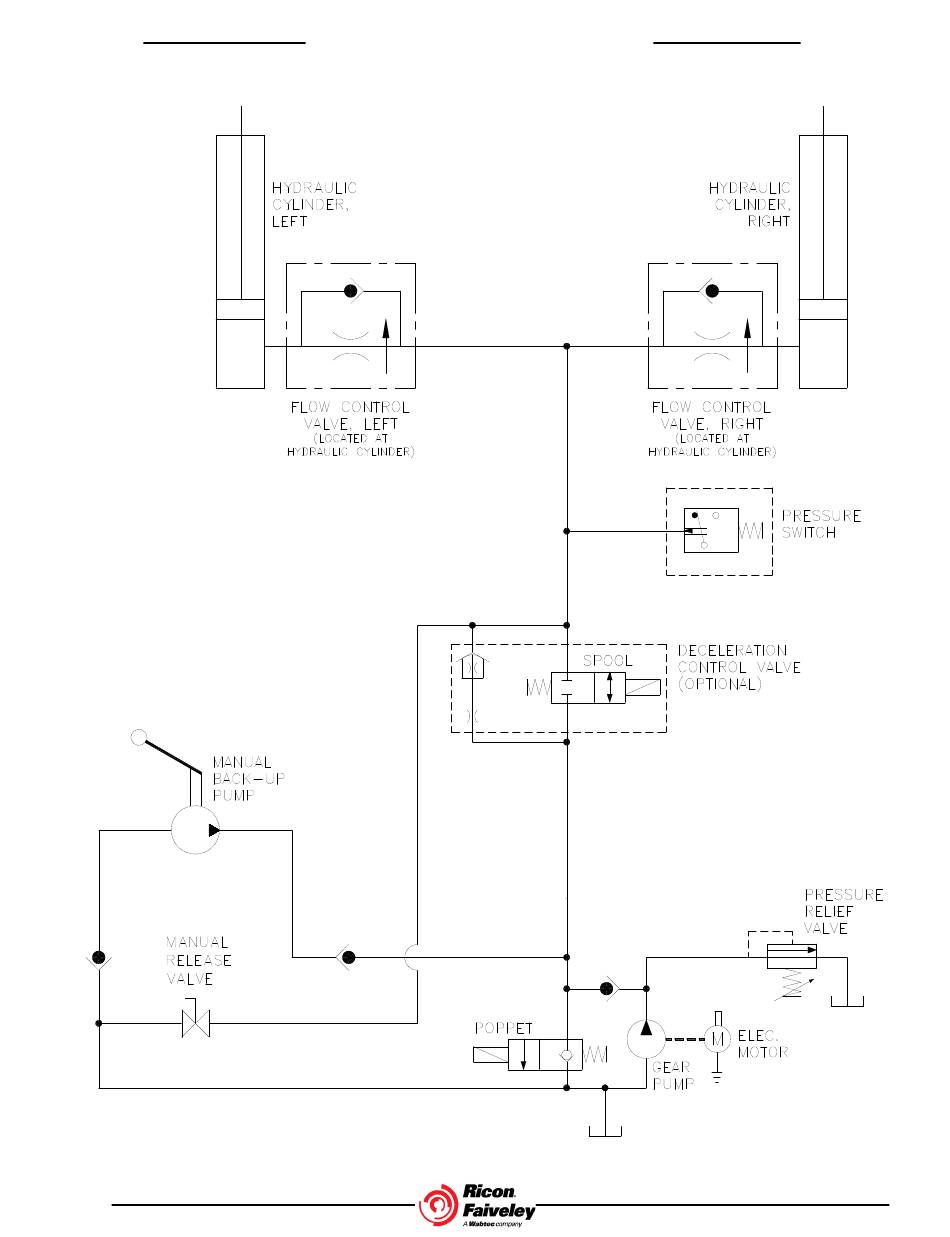

FIGURE 3-5: K-SERIES HYDRAULIC CIRCUIT DIAGRAM
3 - 7
32DSSK06.D
