DECEMBER 2018
III.

MAINTENANCE AND REPAIR

R
egular maintenance of the Ricon K-Series
need for repairs. This chapter contains lubrication and cleaning instructions, a maintenance schedule, trouble-
shooting section, and maintenance diagrams.
This Ricon product is highly specialized. Maintenance and repairs must be per-
formed by an authorized Ricon service technician using Ricon replacement parts.
A.

LUBRICATION

Do not lubricate motor or other electrical components. Lubrication of
electrical components may collect dirt and debris, causing short circuits.
Lubrication should be performed at least every six months or sooner depending on usage. Refer to Figure 3-1 and the
following Maintenance Schedule. Lubricate lift at points indicated with lubricants specified.
KNUCKLE LINKS
1
DETAIL "B"
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
®
Public Use wheelchair lift will optimize its performance and reduce the
"A"
"B"
(BOTH SIDES)
1
TORSION SPRINGS
(BOTH SIDES)
1
LUBRICATE WITH PENETRATING OIL
1
LUBRICATE WITH DRY LUBRICANT (GRAPHITE)
2

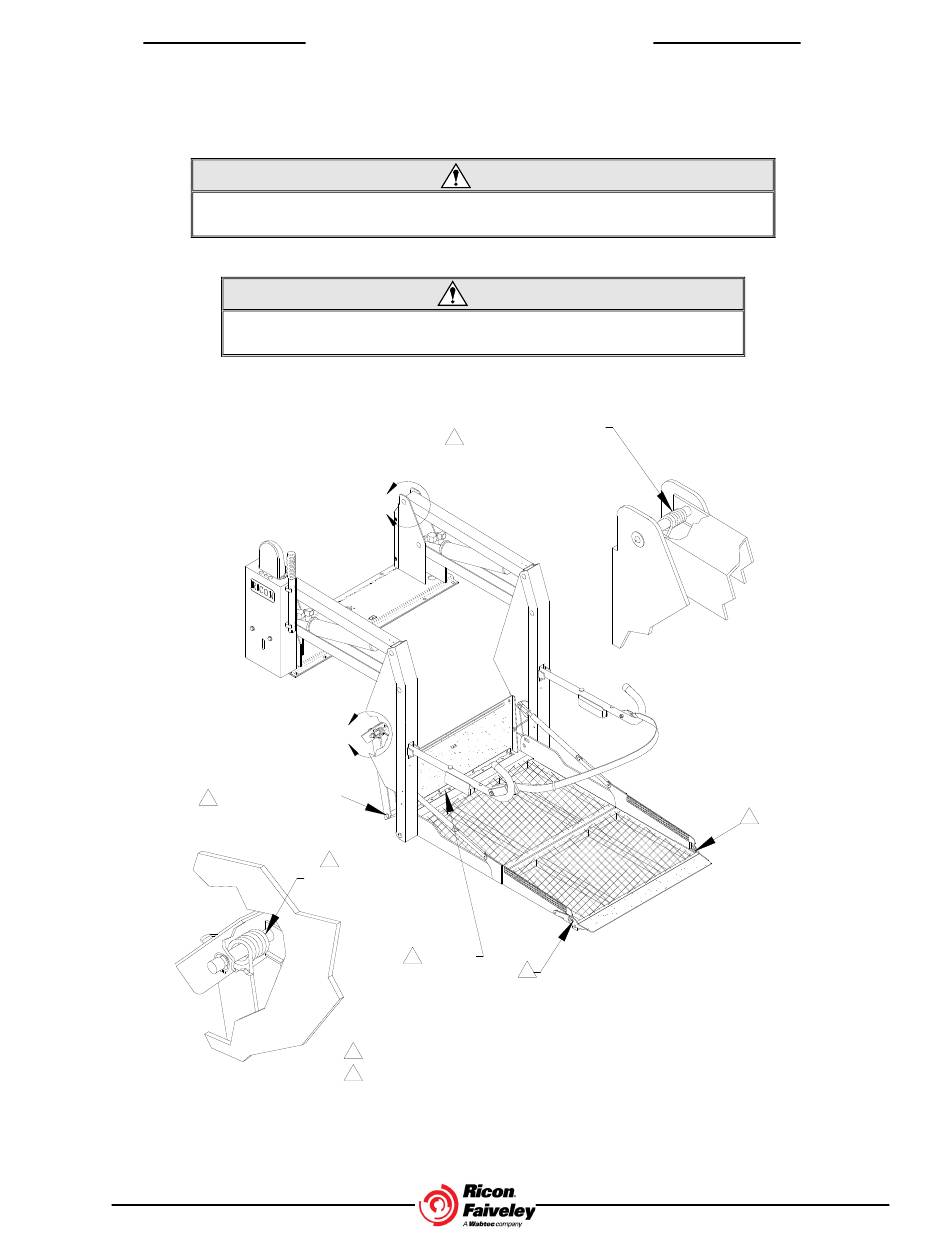

FIGURE 3-1: LIFT LUBRICATION POINTS
CAUTION
CAUTION
TORSION SPRINGS
1
(BOTH SIDES)
HINGE
2
MAINTENANCE
DETAIL "A"
2
3 - 1
