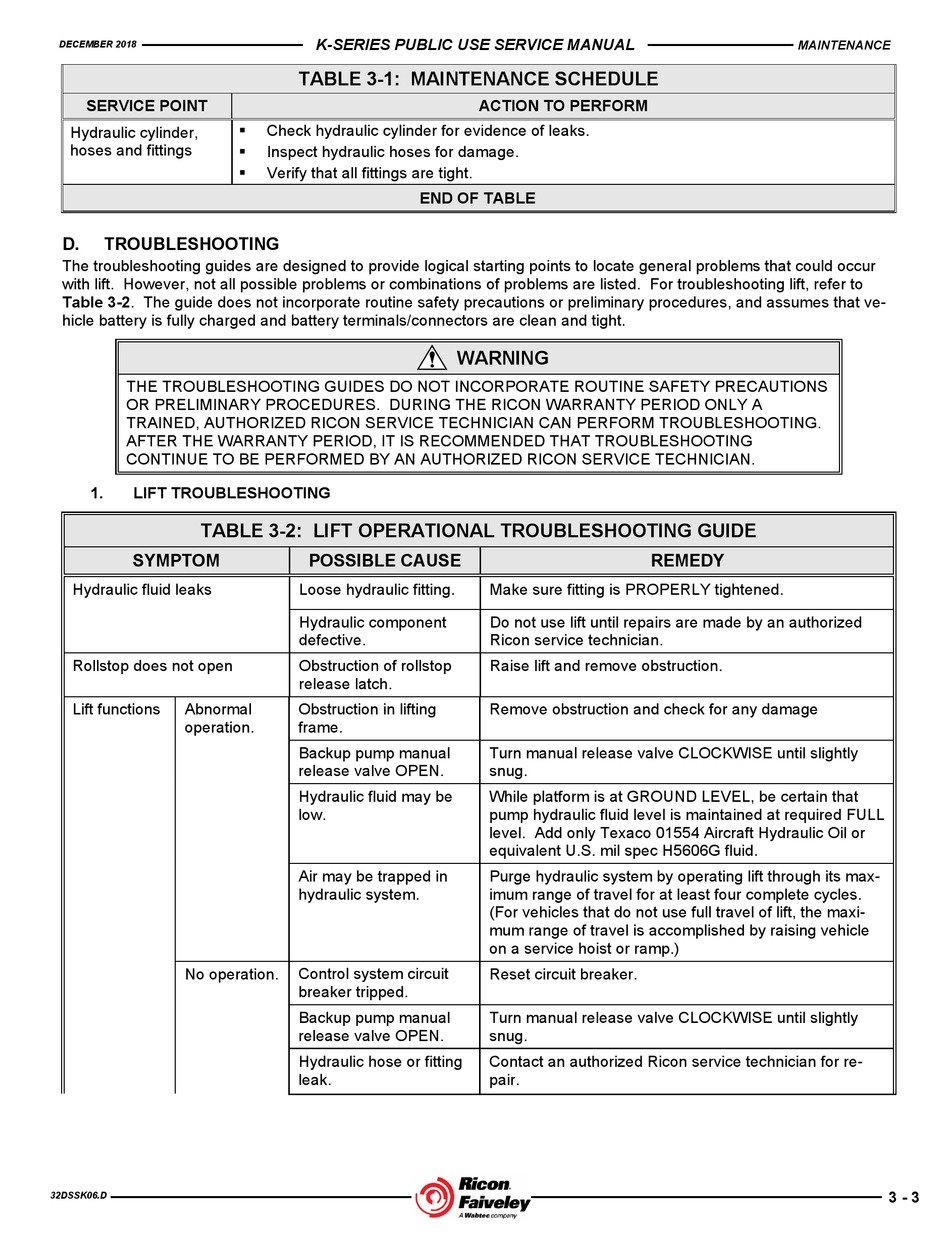

Troubleshooting; Lift Troubleshooting - Wabtec RICON KlearVue K Series Service Manual

DECEMBER 2018
SERVICE POINT
Hydraulic cylinder,
hoses and fittings
D.

TROUBLESHOOTING

The troubleshooting guides are designed to provide logical starting points to locate general problems that could occur
with lift. However, not all possible problems or combinations of problems are listed. For troubleshooting lift, refer to
Table 3-2. The guide does not incorporate routine safety precautions or preliminary procedures, and assumes that ve-
hicle battery is fully charged and battery terminals/connectors are clean and tight.
THE TROUBLESHOOTING GUIDES DO NOT INCORPORATE ROUTINE SAFETY PRECAUTIONS
OR PRELIMINARY PROCEDURES. DURING THE RICON WARRANTY PERIOD ONLY A
TRAINED, AUTHORIZED RICON SERVICE TECHNICIAN CAN PERFORM TROUBLESHOOTING.
AFTER THE WARRANTY PERIOD, IT IS RECOMMENDED THAT TROUBLESHOOTING
CONTINUE TO BE PERFORMED BY AN AUTHORIZED RICON SERVICE TECHNICIAN.
1.

LIFT TROUBLESHOOTING

TABLE 3-2: LIFT OPERATIONAL TROUBLESHOOTING GUIDE
SYMPTOM
Hydraulic fluid leaks
Rollstop does not open
Lift functions Abnormal
operation.
No operation.
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
TABLE 3-1: MAINTENANCE SCHEDULE
 Check hydraulic cylinder for evidence of leaks.
 Inspect hydraulic hoses for damage.
Verify that all fittings are tight.

POSSIBLE CAUSE
Loose hydraulic fitting.
Hydraulic component
defective.
Obstruction of rollstop
release latch.
Obstruction in lifting
frame.
Backup pump manual
release valve OPEN.
Hydraulic fluid may be
low.
Air may be trapped in
hydraulic system.
Control system circuit
breaker tripped.
Backup pump manual
release valve OPEN.
Hydraulic hose or fitting
leak.
ACTION TO PERFORM
END OF TABLE
WARNING
Make sure fitting is PROPERLY tightened.
Do not use lift until repairs are made by an authorized
Ricon service technician.
Raise lift and remove obstruction.
Remove obstruction and check for any damage
Turn manual release valve CLOCKWISE until slightly
snug.
While platform is at GROUND LEVEL, be certain that
pump hydraulic fluid level is maintained at required FULL
level. Add only Texaco 01554 Aircraft Hydraulic Oil or
equivalent U.S. mil spec H5606G fluid.
Purge hydraulic system by operating lift through its max-
imum range of travel for at least four complete cycles.
(For vehicles that do not use full travel of lift, the maxi-
mum range of travel is accomplished by raising vehicle
on a service hoist or ramp.)
Reset circuit breaker.
Turn manual release valve CLOCKWISE until slightly
snug.
Contact an authorized Ricon service technician for re-
pair.
MAINTENANCE
REMEDY
3 - 3
