INSTALLATION
B.

ELECTRICAL INSTALLATION

 Do not route any wire while it is connected to the battery.
 Route wires clear of moving parts, brake lines, and the exhaust system. Secure to the vehicle.
 When routing an electrical wire through vehicle floor or walls, use a grommet to protect wires from chafing.
 Check underside of vehicle before drilling to avoid damage to fuel lines, vent lines, brake lines, or wiring.
4 AWG POWER CABLE:
SHORT CABLE NOT TO EXCEED 12",
CONNECTED BETWEEN BATTERY (OR
MAIN POWER SOURCE) AND MAIN
CIRCUIT BREAKER
90 AMP MAIN
CIRCUIT BREAKER
A
MOTOR TERMINAL BOOT
FACTORY INSTALLED ON PUMP
B
MOTOR TERMINAL BOOT
KIT P/N 37152 SHIPPED WITH PUMP HANDLE
ATTACH TO TERMINAL
4 AWG POWER CABLE:
LONG CABLE CONNECTED
BETWEEN MAIN CIRCUIT
BREAKER AND POSITIVE
CONNECTION BLOCK
2 - 6
K-SERIES PUBLIC USE SERVICE MANUAL
CAUTION
BUS BAR
8 AMP CIRCUIT
BREAKER
GROUND
18 AWG WIRE
(BLUE)
10 AWG WIRE
(RED)
SPOOL VALVE
(DECELERATION)
LH PUMP
TERMINAL
BRACKET

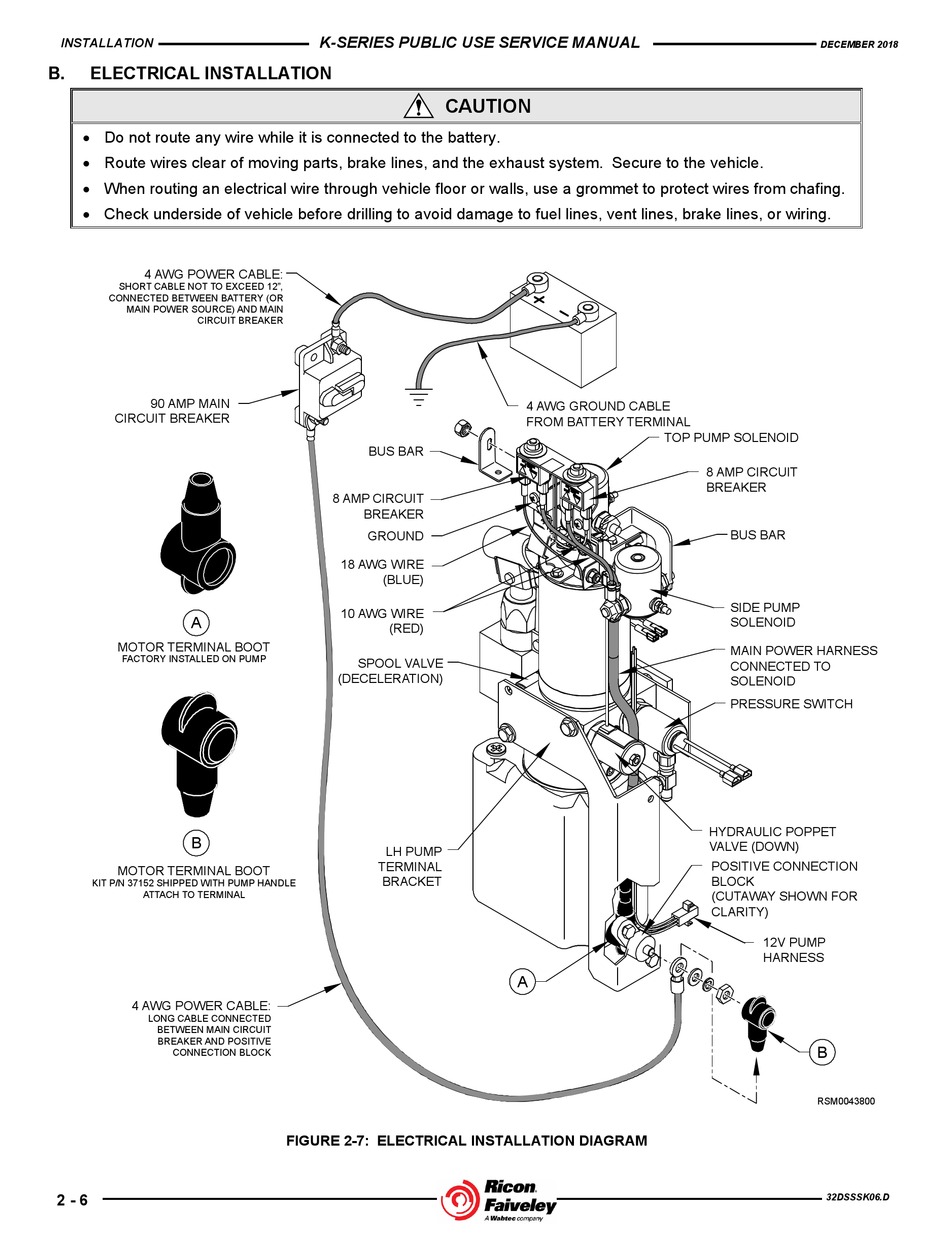

FIGURE 2-7: ELECTRICAL INSTALLATION DIAGRAM
4 AWG GROUND CABLE
FROM BATTERY TERMINAL
TOP PUMP SOLENOID
A
DECEMBER 2018
8 AMP CIRCUIT
BREAKER
BUS BAR
SIDE PUMP
SOLENOID
MAIN POWER HARNESS
CONNECTED TO
SOLENOID
PRESSURE SWITCH
HYDRAULIC POPPET
VALVE (DOWN)
POSITIVE CONNECTION
BLOCK
(CUTAWAY SHOWN FOR
CLARITY)
12V PUMP
HARNESS
B
RSM0043800
32DSSSK06.D
