INSTALLATION
f. Refer to Figure 2-9. Cut excess wire from long cable, install heavy ring terminal, and then connect to side
solenoid. Verify that red wire from main circuit breaker (if applicable) is connected to positive solenoid pole.
POSITIVE CONNECTION
BLOCK TERMINAL
g. Connect 12" cable, with ring terminals, from positive battery terminal to main circuit breaker terminal.
3.

CONNECT CONTROL PENDANT

a. Refer to Figure 2-10. Connect hand-held control pendant to six-pin connector at left side of baseplate and
secure cable with supplied bracket and cable clamps.
b. Install wall portion of dovetail clip (pendant storage) in an appropriate and safe location near lift.
2 - 8
K-SERIES PUBLIC USE SERVICE MANUAL
GROMMET

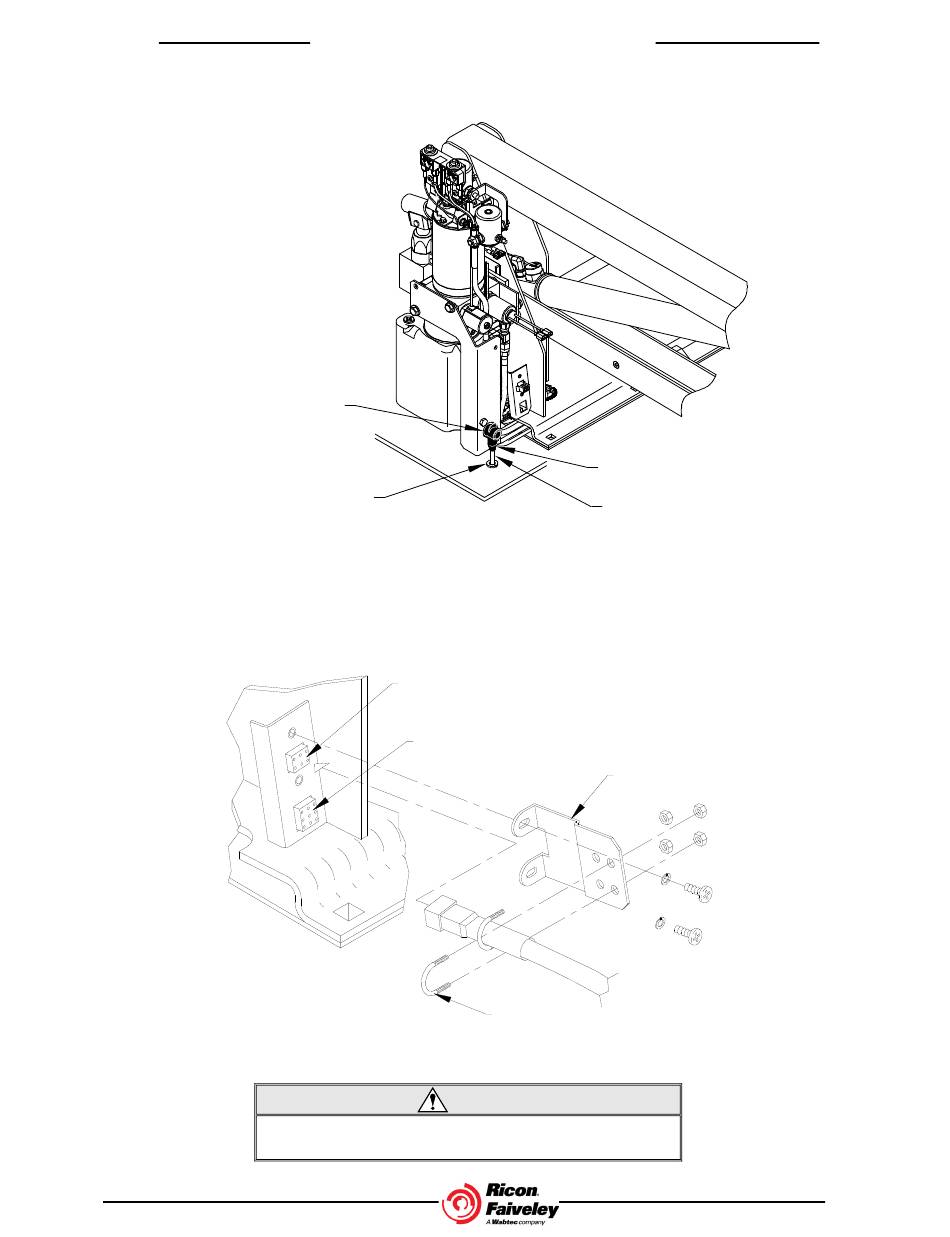

FIGURE 2-9: CABLE ROUTING
PENDANT INTERFACE
INTERLOCK INTERFACE
FIGURE 2-10: STRAIN RELIEF KIT
Be sure that harness does not interfere with any moving
parts, or binds against any parts, or is pinched in any way.
INSTALL BOOT (KIT 37152)
4 AWG POWER CABLE
STRAIN RELIEF
BRACKET
CABLE CLAMP
CAUTION
DECEMBER 2018
RSM0044000
32DSSSK06.D
