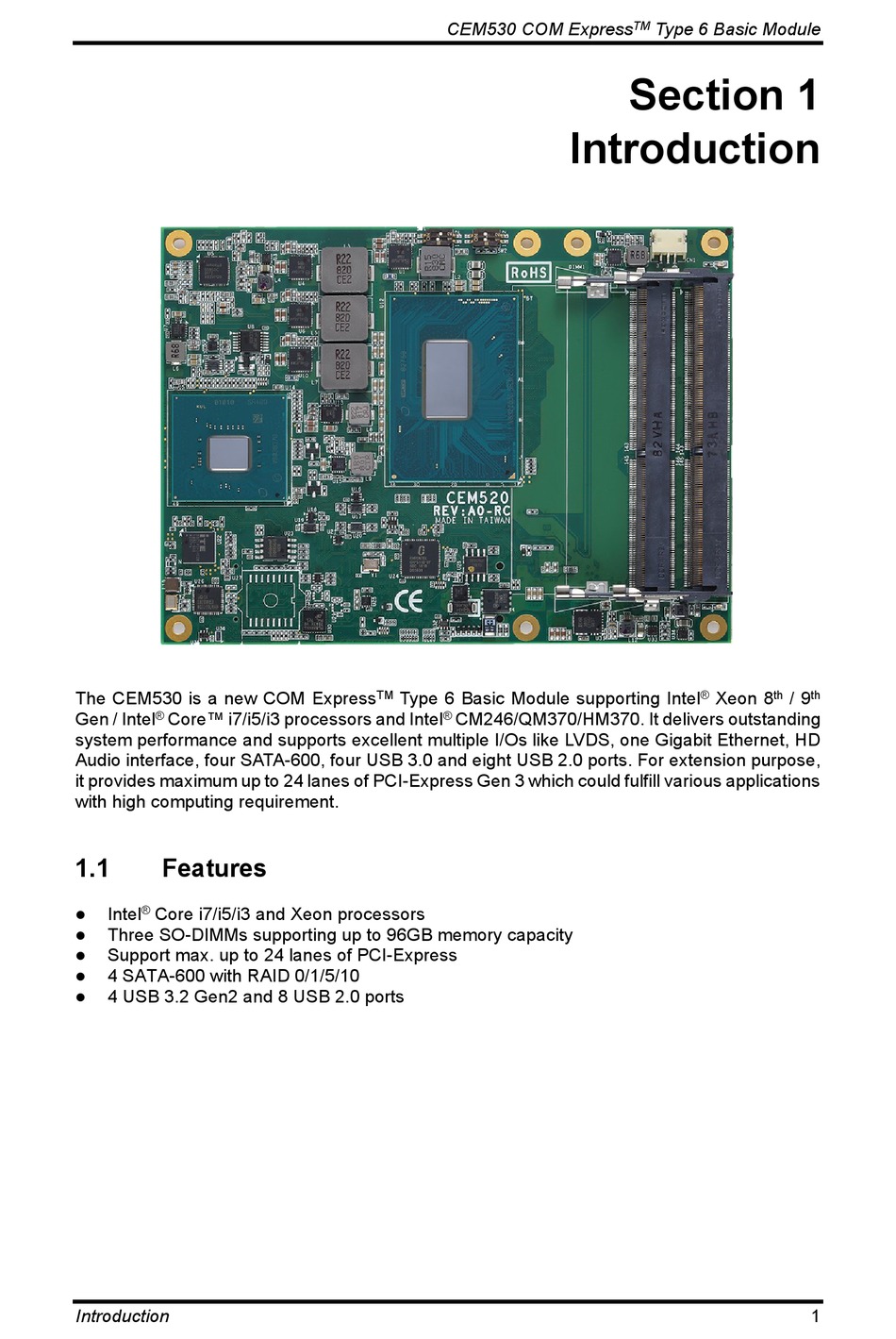

The CEM530 is a new COM Express
Gen / Intel ® Core™ i7/i5/i3 processors and Intel
system performance and supports excellent multiple I/Os like LVDS, one Gigabit Ethernet, HD
Audio interface, four SATA-600, four USB 3.0 and eight USB 2.0 ports. For extension purpose,
it provides maximum up to 24 lanes of PCI-Express Gen 3 which could fulfill various applications
with high computing requirement.
1.1

Features

Intel Core i7/i5/i3 and Xeon processors
®
⚫
Three SO-DIMMs supporting up to 96GB memory capacity
⚫
Support max. up to 24 lanes of PCI-Express
⚫
4 SATA-600 with RAID 0/1/5/10
⚫
4 USB 3.2 Gen2 and 8 USB 2.0 ports
⚫

Introduction

CEM530 COM Express
TM Type 6 Basic Module supporting Intel
® CM246/QM370/HM370. It delivers outstanding
TM Type 6 Basic Module
Section 1
Introduction
® Xeon 8 th / 9 th
1
