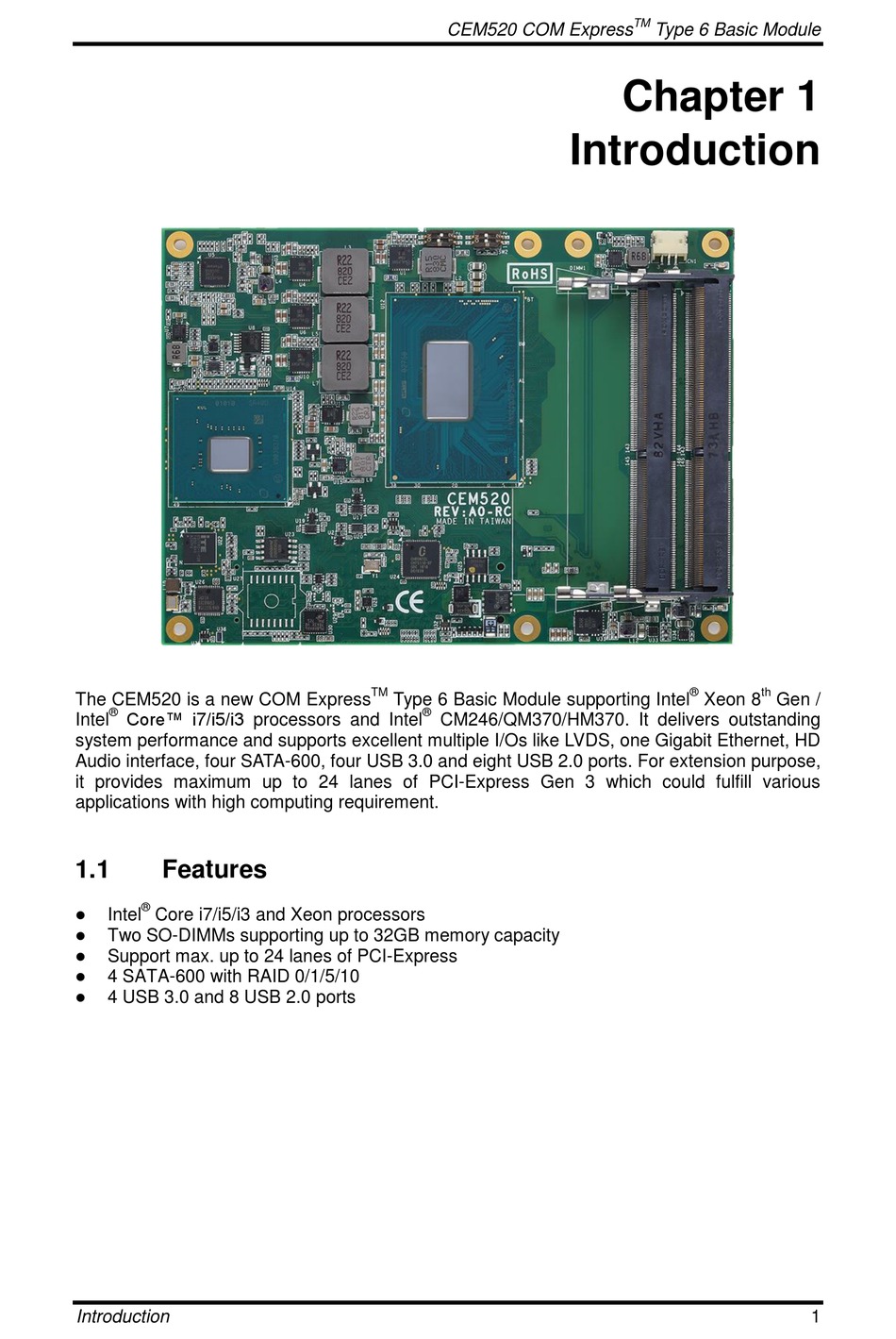

The CEM520 is a new COM Express
®
Core™ i7/i5/i3 processors and Intel
Intel
system performance and supports excellent multiple I/Os like LVDS, one Gigabit Ethernet, HD
Audio interface, four SATA-600, four USB 3.0 and eight USB 2.0 ports. For extension purpose,
it provides maximum up to 24 lanes of PCI-Express Gen 3 which could fulfill various
applications with high computing requirement.
1.1

Features

®
 Intel Core i7/i5/i3 and Xeon processors
 Two SO-DIMMs supporting up to 32GB memory capacity
 Support max. up to 24 lanes of PCI-Express
 4 SATA-600 with RAID 0/1/5/10
 4 USB 3.0 and 8 USB 2.0 ports
Introduction
CEM520 COM Express
TM
Type 6 Basic Module supporting Intel
®
CM246/QM370/HM370. It delivers outstanding
TM
Type 6 Basic Module
Chapter 1
Introduction
®
Xeon 8
th
Gen /
1
