Sam4s ER-180 Quick Setup Manual

ER-180
Electronic Cash Register
1
Get Ready
Unpack the Cash Register
Remove the cash register from the packaging.
Locate the following items:
• 1 DC power supply
• 1 roll of 57mm paper
(ReorderP5757)
• 1 set of keys (5 keys in total)
• 3 AA batteries
• 1 user manual
• 1 Take up spool set.
PLEASE FOLLOW THESE STEPS IN ORDER
Install Batteries
• Remove battery from the
packaging.
• Remove the battery cover
which is located where the
paper roll sits.
• Push the negative pole of
the battery against the
spring firmly.
• Push the battery into
position.
• Repeat for the second and
third batteries and then
replace the battery cover.
• Incorrect installation of
one or more batteries will
result in "E Lo 0.00"
showing on the display
when the register is
plugged into the power
point.

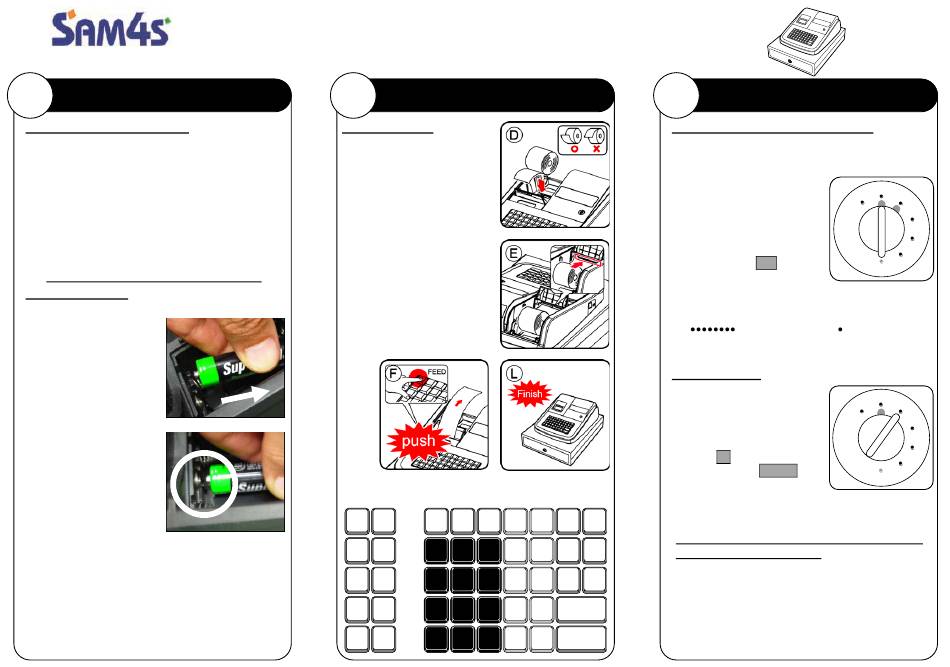

Quick Setup Guide
For 10 Departments Model
1
Get Ready (cont.)
Loading Paper
• Place paper roll in the paper
holder (D)
• Insert the paper end straight
into the paper inlet of printer
(E)
• Press "FEED" button until
the paper catches and
advances through the printer
(F)
• For use as a receipt pass the
paper through the receipt
window of the printer cover
(L)
• For use as a journal attach
paper roll to the Take up
Spool.
Keyboard Layout of ER-180
Dept 1
FEED RCPT CLEAR PLU X/TIME
ON / OFF ( X )
RETURN - 7 8 9 Dept 2
4 5 6 Dept 3
VOID - %
CLERK + % 1 2 3 Dept 4
0 00 • Dept 5
TAX C / CONV
2
RAM (Memory) All Clear - Reset
A "RAM All Clear" will reset the register back to the
factory default settings. It is strongly recommended
that a "RAM ALL CLEAR" is preformed on all new
registers before use.
• Switch the power to the
register off.
• Insert the C key and turn to
S-Mode (a hidden position
after PGM-Mode)
• Hold down the 00 button
and power up the register.
• Release the 00 button after hearing two beeps.
"02151409" will show on the display and the printer
will print EPROM information. For example,
"
The "RAM All Clear" procedure is now complete
turn the key to the REG position.
Log in ER-180
After the RAM All Clear, a log in
procedure is needed in order to
use ER-180.
• The display will show
CLOSEd
• Press 1 on the 0~9 key pad
followed by the CLERK
button which is to the left of
1, the display will show
"0.00
Dept 6
NO CALC
use.
SALE
DO NOT USE THE DECIMAL POINT ON THE REGISTER
Dept 7 RA PO
WHEN ENTERING AN AMOUNT.
( + ) ( - )
Dept 8
CHECK CHARGE
At this point, all 16 Departments and 100 PLUs are
preset to 10% on Tax1 (GST) and OPEN PRICE (a
Dept 9 SUBTOTAL
price must be entered for each item sale); all PLUs
link to Department 1.
Dept 10
CASH / TEND
( = )
RAM All Clear
OFF
VOID
S
, 02 15 14 09 then 1 0 PO".
OFF
VOID
S
" and is now ready for
REG
X
Z
PGM
REG
X
Z
PGM
