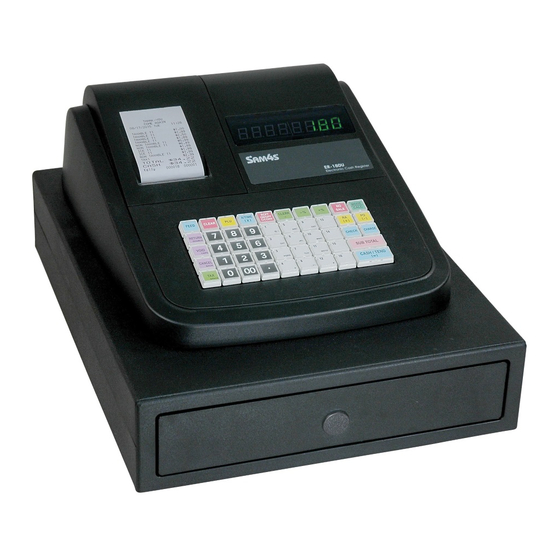

Sam4s ER-180U Quick Setup Manual

ER-180U /UDL
Electronic Cash Register
1
Get Ready
Unpack the Cash Register
Remove the cash register from the packaging.
Locate the following items:
• 1 power adaptor
• 1 roll of paper
• 1 set of keys (ER-180U - 5 keys in total; ER-180UDL
- 6 keys)
• 1 user manual
• (Optional) Take up spool set.
Loading Paper
The ER-180U has a built-in thermal printer and a
57mm thermal paper roll. The printer can be used as a
receipt printer or a journal printer.
• Remove the printer cover
• Open the housing clam cover
(Fig (c))
• Insert the paper roll as
shown on Fig (D)
• Pressing the housing clam
cover (Fig (E))
• Press FEED to advance
paper
• Replace the printer cover

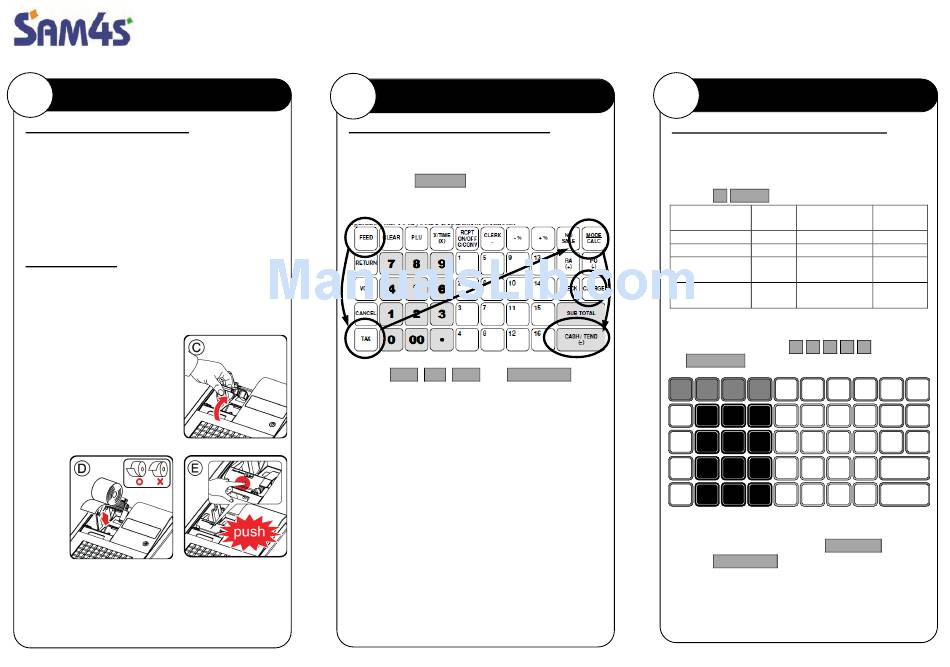

Quick Setup Guide
2
RAM All Clear
RAM (Memory) All Clear - Reset
RAM All Clear an ER-180U /UDL and the register will
reset to factory default program. This is recommended
for all new products. To do so:
• Hold down CHARGE button
• Plug in Power Lead then release CHARGE button
after the beep! Sound
• Press FEED, TAX, CALC then CASH/TEND
button in sequence. "RAM ALL CLEAR OK!" will
print on the receipt, the display will show "= = = = =
= = = = =". The EPROM info will print at the end of
this procedure.
• Turn key to REG-Mode
• The display should show
"0.00" and be ready for use
At this point, all 16 Departments
and 100 PLUs are preset to 10%
on Tax1 (GST) and OPEN
PRICE (a price must be entered
for an item); at the start, all
PLUs link to Department 1.
3
Programming
Descriptor Programming Methods
The ER-180U has two different descriptor program
methods - The Alpha Overlay and the Three Digit
Code. To program a description with Alpha Overlay
Entry Method:
• Enter 6 MODE , to go to PGM-Mode
Descriptor of Address Number
Department (16) 1 0001 ~ 0016
PLU (500) 2 0001 ~ 0500
Receipt Header
3 0001 ~ 0006
(6 Lines)
Receipt Footer
4 0001 ~ 0006
(6 Lines)
• Enter Address + Number for the logo descriptor line
you want to program (for example, the 2
Receipt Header, enter 3 0 0 0 2 ) then press
SUBTOTAL button.
A F K
7 8 9 B G L
DOUBLE
4 5 6 C H M
CAPS
1 2 3 D I N
BACK
0 00 • E J O
SPACE
• Enter up to 24 characters; for more detail, please
see Overlay Descriptor Programming Methods
on User Manual. Then press SUBTOTAL button.
• Press CASH/TEND to finalise programming.
Character
Length
12
12
24
24
nd
line of
P U X
Q V Y
R W Z
S
SUB TOTAL
T
CASH
