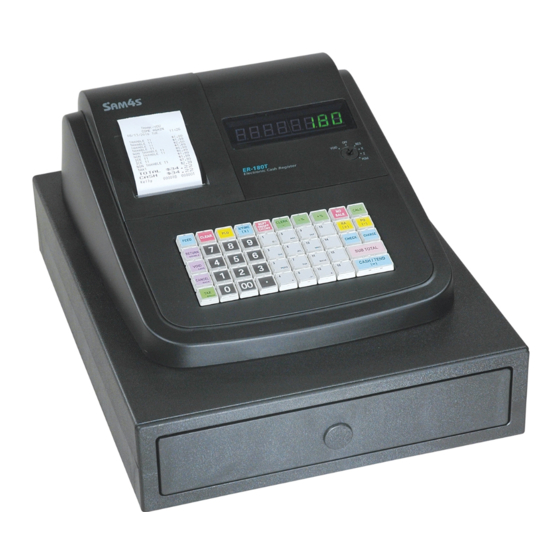

Sam4s ER-180T Quick Setup Manual

ER-180T
Electronic Cash Register
1
Get Ready
Unpack the Cash Register
Remove the cash register from the packaging.
Located the following items:
• 1 power adaptor
• 1 roll of paper
• 1 set of keys (ER-180T - 5 keys in total; ER-180TDL
- 6 keys)
• 1 user manual
Optional
• ( ) Take up spool set.
Loading Paper
ER-180T
has a built-in thermal printer and a 57mm
thermal paper roll. The printer can be used as a receipt
printer or a journal printer.
• Remove the printer cover
• Open the housing clam cover
(Fig (c))
• Insert the paper roll as shown
on Fig (D)
• Pressing the housing clam
cover (Fig (E))
• Press FEED to advance paper
• Replace the printer cover
Quick Setup Guide
EPROM v01.002 and earlier
2
RAM All Clear
RAM (Memory) All Clear - Reset
ER-180T
RAM All Clear an and the register will reset
to factory default program. This is recommended for all
new products. To do so..
• Use a C key and turn to S-
Mode (a hidden position after
PGM-Mode)
• Hold down CHARGE button
• Turn power switch ON then
release CHARGE button after
the beep! sound
FEED CLEAR PLU X/TIME RCPT CLERK - %
( X ) ON / OFF -
C / CONV
RETURN 7 8 9 Dept 1 Dept 5 Dept 9
VOID 4 5 6 Dept 2 Dept 6 Dept 10
CANCEL 1 2 3 Dept 3 Dept 7 Dept 11
0 00 • Dept 4 Dept 8 Dept 12
TAX
• Press FEED , TAX , CALC then
button in sequence. "RAM ALL CLEAR OK!" will
print on the receipt, the display will show "= = = = =
= = = = =". The EPROM info will print at the end of
this procedure.
ER-180T
Login
After RAM All Clear, a login
procedure is needed in order to
use ER-180T . To do so..
• Use a C key or REG key, turn
to REG-Mode
• The display should show
"CLOSEd", then press 1 then CLERK button,
the display should show "0.00" and be ready for
use
At this point, all 16 Departments and 100 PLUs are
preset to 10% on Tax1 (GST) and OPEN PRICE (a
price must be entered for an item); at the start, all
PLUs link to Department 1.
3
Programming
Descriptor Programming Methods
The ER-180T has two different descriptor program
methods - The Alpha Overlay and the Three Digit
Code. To program a description with Alpha Overlay
OFF
VOID REG
Entry Method, enter the ADDRESS plus NUMBER from
the table below.
X
Descriptor of
Z
Department (16)
PLU (500)
PGM
S
Receipt Head
(6 Lines)
+ % NO CALC
SALE
Receipt Foot
(6 Lines)
Dept 13 RA PO
( + ) ( - )
Dept 14 CHECK CHARGE
7
Dept 15 SUBTOTAL
DOUBLE
4
Dept 16
CASH / TEND
CAPS
( = )
1
CASH/TEND-
BACK
0
SPACE
Logo Descriptor Programming
OFF
VOID REG
• use a C key, turn to PGM-
Mode
X
• Enter Address + Number for
the logo descriptor line you
Z
want to program (for example,
the 2
enter 3 0 0 0 2 ) then
S
press SUBTOTAL button.
• Enter up to 24 characters; for more detail, please
see Overlay Descriptor Programming Methods
on User Manual. Then press SUBTOTAL button.
• Press CASH/TEND to finalise the programming.
Character
Address Number
Length
1 0001 ~ 0016
2 0001 ~ 0500
3 0001 ~ 0006
4 0001 ~ 0006
8 9
@ : / ABC DEF
5 6
GHI JKL MNO
2 3
PQRS TUV WXYZ
00 •
. , ? ! #
OFF
VOID
nd
line of Receipt Head,
S
12
12
24
24
REG
X
Z
PGM
