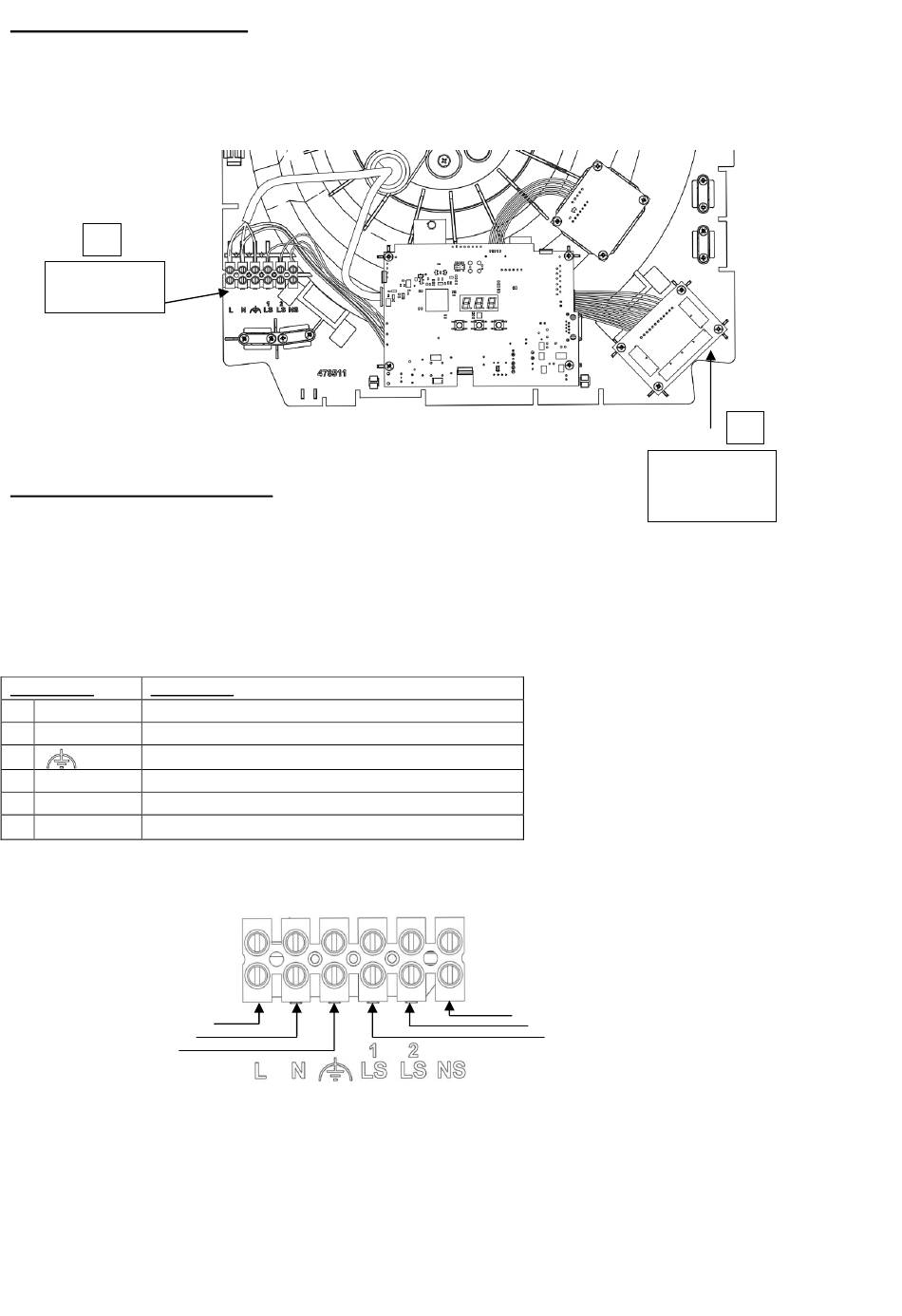

CONNECTION DIAGRAM
Figure 10
A
Main power
connections
A: Main power connections
The LS1, LS2 and NS terminals are electrically isolated.
If the LS connections are used, a connection must be made with the NS terminal.
This can be via a jumper or dedicated neutral connection.
This appliance incorporates an earth connection for functional purposes only.
Connection Description
1 L Live (220-240Vac)
2 N Neutral
3 Functional Earth
4 LS1 Live Switched 1, (220-240Vac), isolated
5 LS2 Live Switched 2 (220-240Vac), isolated
6 NS Neutral Switched, isolated
3
Figure 11
1
2
6
5
4
9
B
Low voltage
connections,
if fitted
