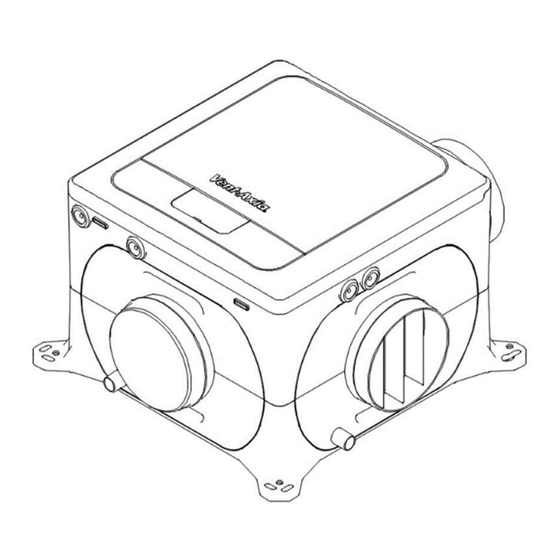

Quick Start Guide
220-240V~50Hz
Full instructions and feature explanations are available online
by scanning the QR code or by visiting:
https://www.vent-axia.com/range/centralised-mechanical-extract-ventilation-mev
ORIGINAL ENGLISH QUICK START GUIDE
Stock Ref. N°
MVDC-MS
MVDC-MSH
SMV-H
SMV-HX
SMV-HX
CO²
SMV PLUS-H
SMV PLUS-HX
SMV PLUS-HX
CO²
SMV PLUS-H
(Ventair)
X-Units have wireless controls and
Bluetooth capability.
IPX2
DOWNLOAD THE APP HERE:
437634C
443298B
445655B
495360
495361
407849A
495362
495363
496186
Advertisement
Related Manuals for Vent-Axia Lo-Carbon MVDC MULTIVENT
Summary of Contents for Vent-Axia Lo-Carbon MVDC MULTIVENT
- Page 1 495363 SMV PLUS-H 496186 (Ventair) X-Units have wireless controls and Bluetooth capability. 220-240V~50Hz Full instructions and feature explanations are available online IPX2 by scanning the QR code or by visiting: https://www.vent-axia.com/range/centralised-mechanical-extract-ventilation-mev ORIGINAL ENGLISH QUICK START GUIDE DOWNLOAD THE APP HERE:...
- Page 2 Zirconia Wireless: -14dBm EIRP nominal 868MHz. The manufacturer hereby assure that this type of Bluetooth radio and 868MHz radio equipment complies with RED Directive 2014/53 / EU The full text of the EU Declaration of Conformity can be found at the following URL: https://www.vent-axia.com/range/centralised-mechanical-extract-ventilation-mev...
-
Page 3: Installation
INSTALLATION Position the unit, taking into consideration the position of the rooms to be ventilated, the exhaust position and the electrical services. Ensure there is adequate access for installation and maintenance. If the unit is sited in the heated void of the dwelling a condensate drain should not be necessary. When sited in a cold loft, consideration should be given to fitment of a condensate drain. -
Page 4: Protective Earth
PIR detector) can be connected to the LS terminal instead of connecting to a lighting circuit. Important: Use 4-core, low voltage, twisted pair, telecoms type cable for accessories (Vent-Axia part number 459931). Accessories are connected via the IO (Input Output) PCB; see the Low Voltage Connections diagram in the Main fitting and wiring guide, downloadable on the website. -
Page 5: Control Via Bluetooth
COMMISSIONING 1. Commissioning and configuration on all products is supported by the 3-digit user interface and associated push buttons: 2. When powered on, the unit will display the firmware revision number, after a few seconds the unit will display the first option in the User Parameters (see table on next page). 3. -
Page 6: User Configurable Parameters
User Configurable Parameters: Function Display Selections Default text Low speed 1 to 97% motor speed Normal speed 2 to 98% motor speed Boost speed 3 to 99% motor speed Purge Speed 4 to 100% motor speed Live switch 1 Low, Boost or Purge speed Live switch 2 Low, Boost or Purge speed Boost... -
Page 7: Product Fiche
Product Fiche Name: Vent-Axia 407849A 443298B 445655B 495360 495361 495362 495363 Model ID (Stock Ref.) : 437634C 496186 SEC Class SEC Value ('Average') -27.2 -26.9 SEC Value ('Warm') -11.7 -11.5 -11.4 SEC Value ('Cold') -54.3 -54.1 -54.0 Label Required? (Yes/No=Out... - Page 8 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...
