i.

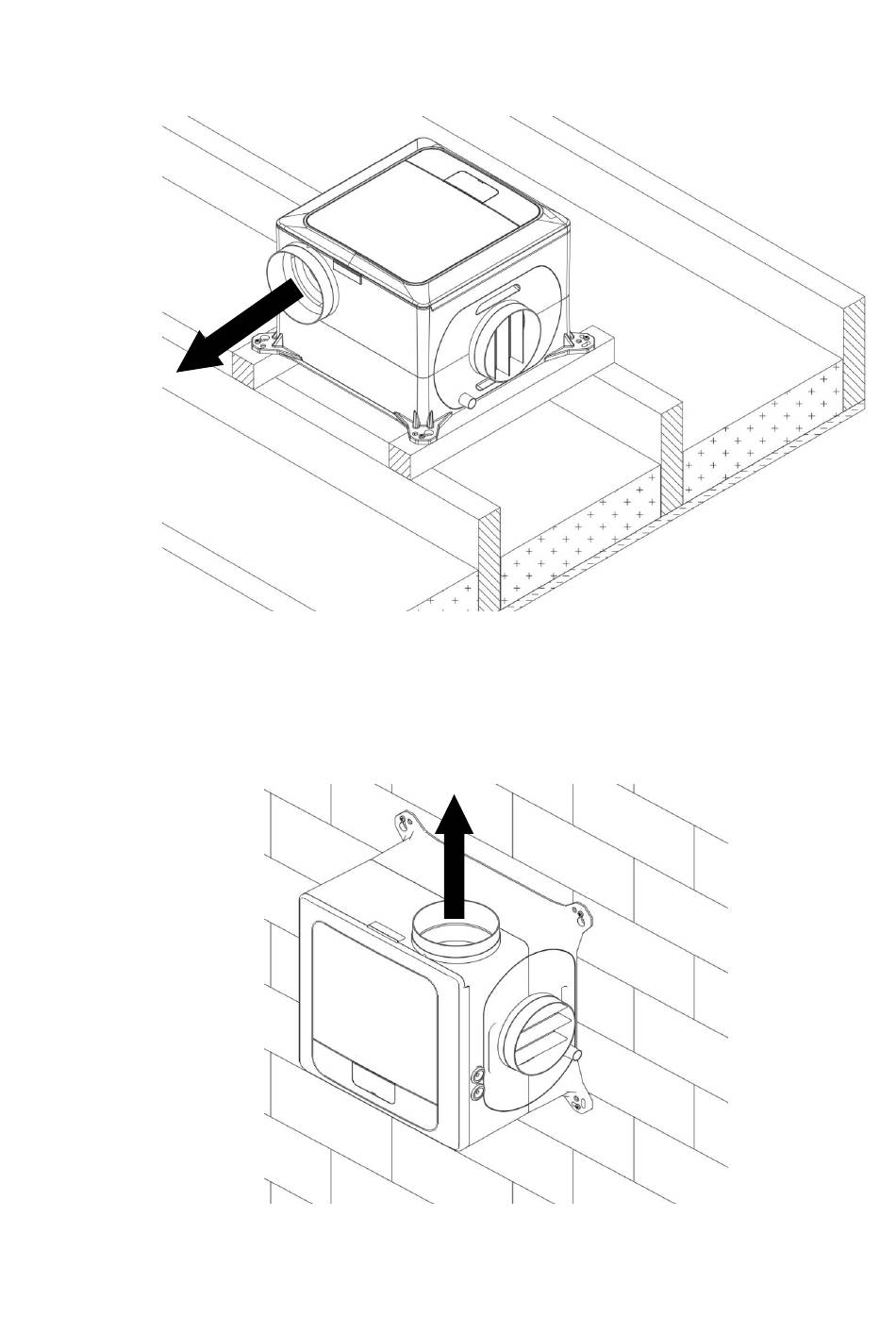

Base mounted Installation with ducting radiating out horizontally.
Figure 7
ii.
Vertically mounted Installation with the exhaust spigot at top. The electrical connections must
come out of the bottom of the unit in order to maintain the water ingress protection.
Figure 8
7
