2-9.10 USB Ports and USB Pin Headers

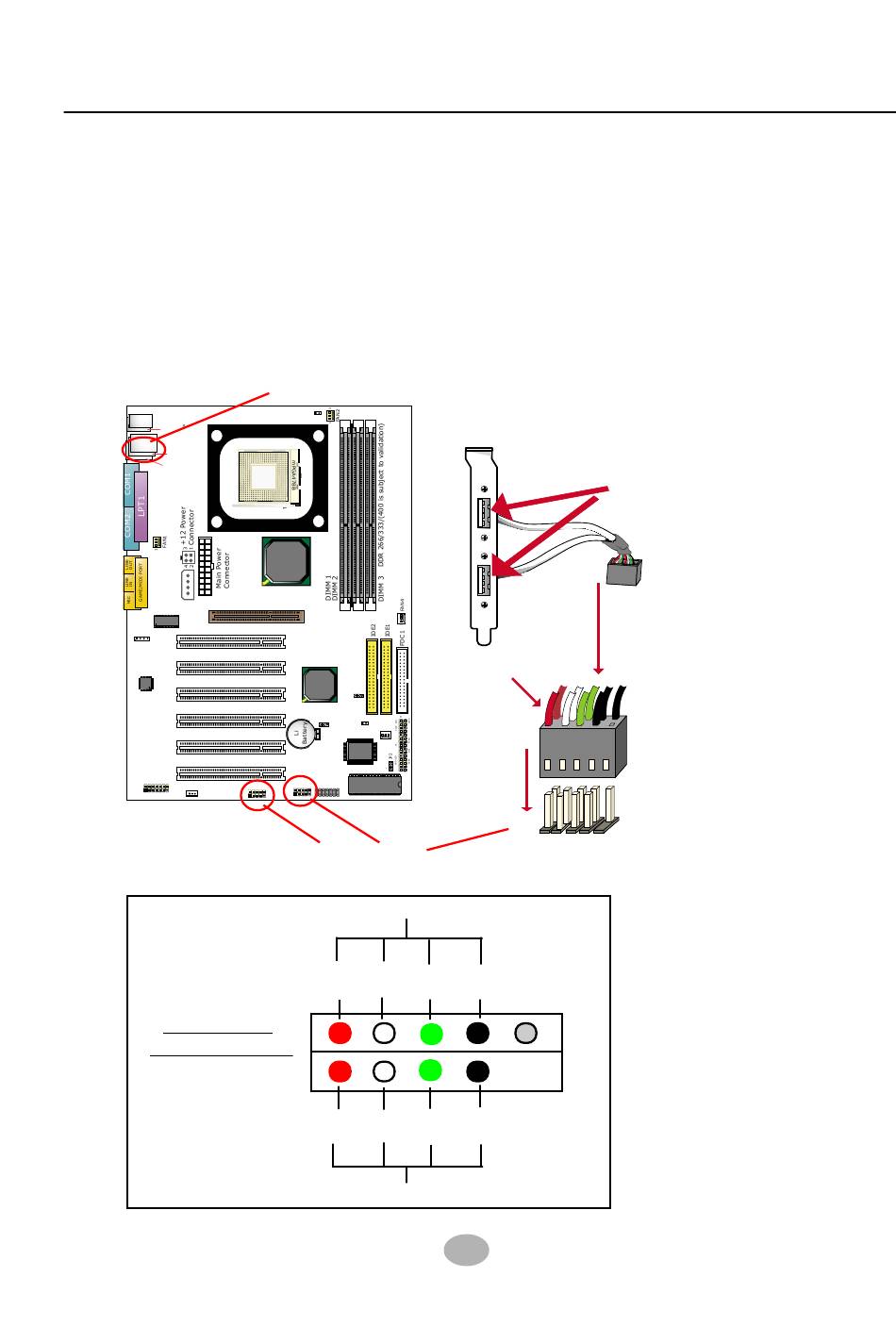

This series provides two USB ports USB0 and USB1 on board sup-
porting various USB devices. In addition, pin headers JUSB1 and JUSB2
are added on board to provide expansion of 4 more optional USB ports
by using two additional USB Cables. User can order the optional USB
cables from your mainboard dealer or vender.
When plugging the USB cable to USB Header , user should make
sure the red wire is connected to Pin 1.
USB Ports USB 0 & 1(underside)
PS/2 Mouse
(on top)
PS/2 K/B
(underside)
Rj 45
(on top)
USB0 (middle)
USB1 (underside)
Peripheral Power
AGP 4X/8X
Connector
VIA VT6103
PCI 1
PHY (LAN Controller)
1
CD1
PCI 2
AC'97
PCI 3
Codec
Audio Codec
PCI 4
PCI 5
PCI 6
Audio 1
14
10
WOL1
JUSB2
1
1
1
Pin Header JUSB2 / JUSB1
First USB Port Wiring for Front USB
USB Header
Pin Assignment
Second USB Port Wiring for Front USB
RT1
VIA
P4x400A
VIA
VT8235
1
JP1
1
JBAT1
RT2
1
FAN3
IT8705F
LPC I/O
SCR1
FLASH BIOS
10
14
JUSB1
1
1
Red White
Green
D1-
D1+
+5V
1
D2+
D2-
+5V
White
Red
Green
USB Cable (Optional)
USB Port
Red wire
1
10
1
black
GND
10
GND
black
36
10
