2-9.6 RJ45: LAN Connector ( 85ERV2-L only)

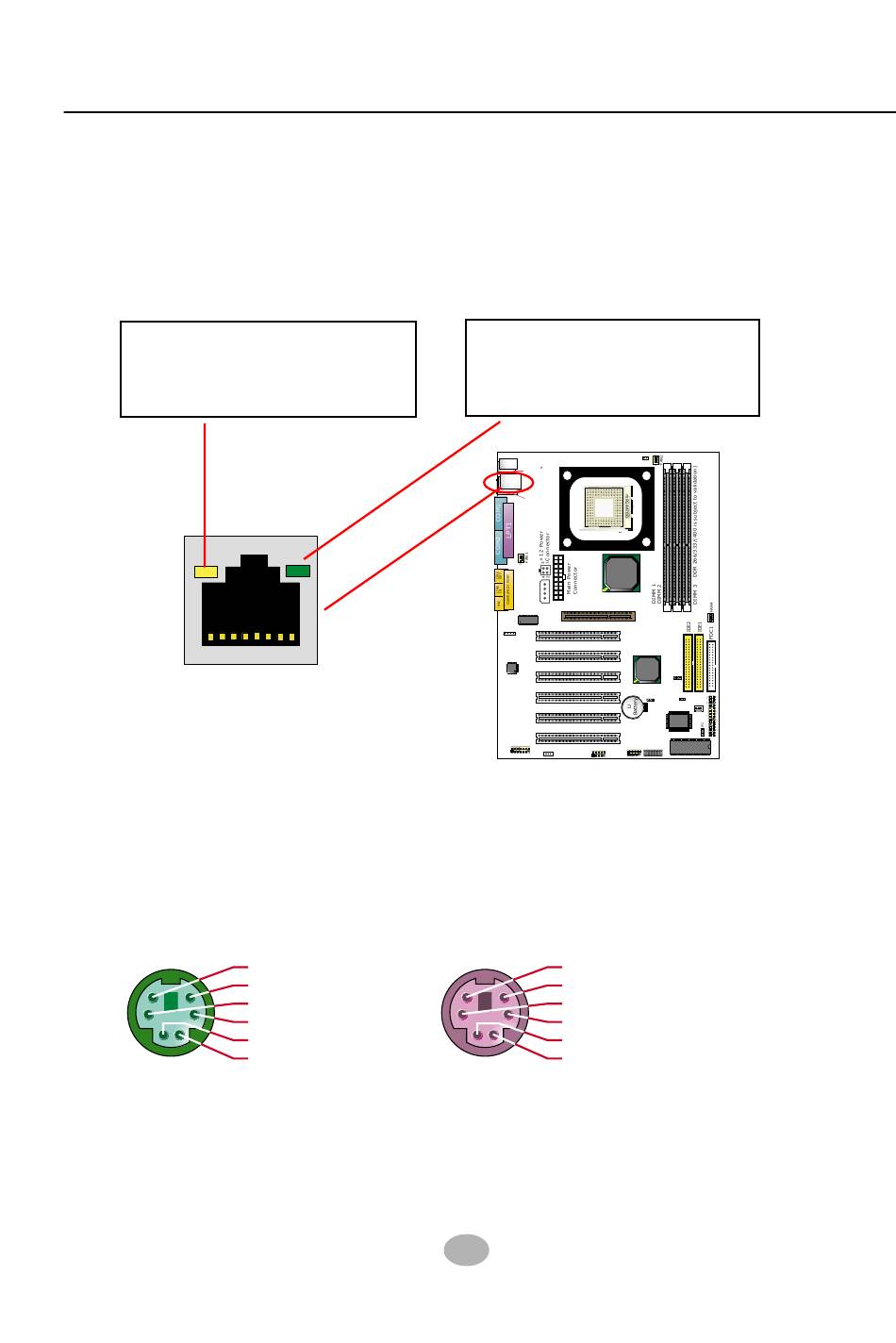

One RJ45 connector is on board for network connection.
Yellow LED "On" to indicate
Network hub is in connection
with the system.
RJ45 Connector

2-9.7 PS/2 Mouse And PS/2 Keyboard

PIN 6 : Void
PIN 5 : Mouse Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : Void
PIN 1 : Mouse Data
PS/2 MOUSE
Green LED blinks to indicate
that data transmission is
undergoing in 10/100 Base T
mode.
PS/2 Mouse
(on top)
PS/2 K/B
(underside)
Rj 45
(on top)
USB0 (middle)
USB1 (underside)
