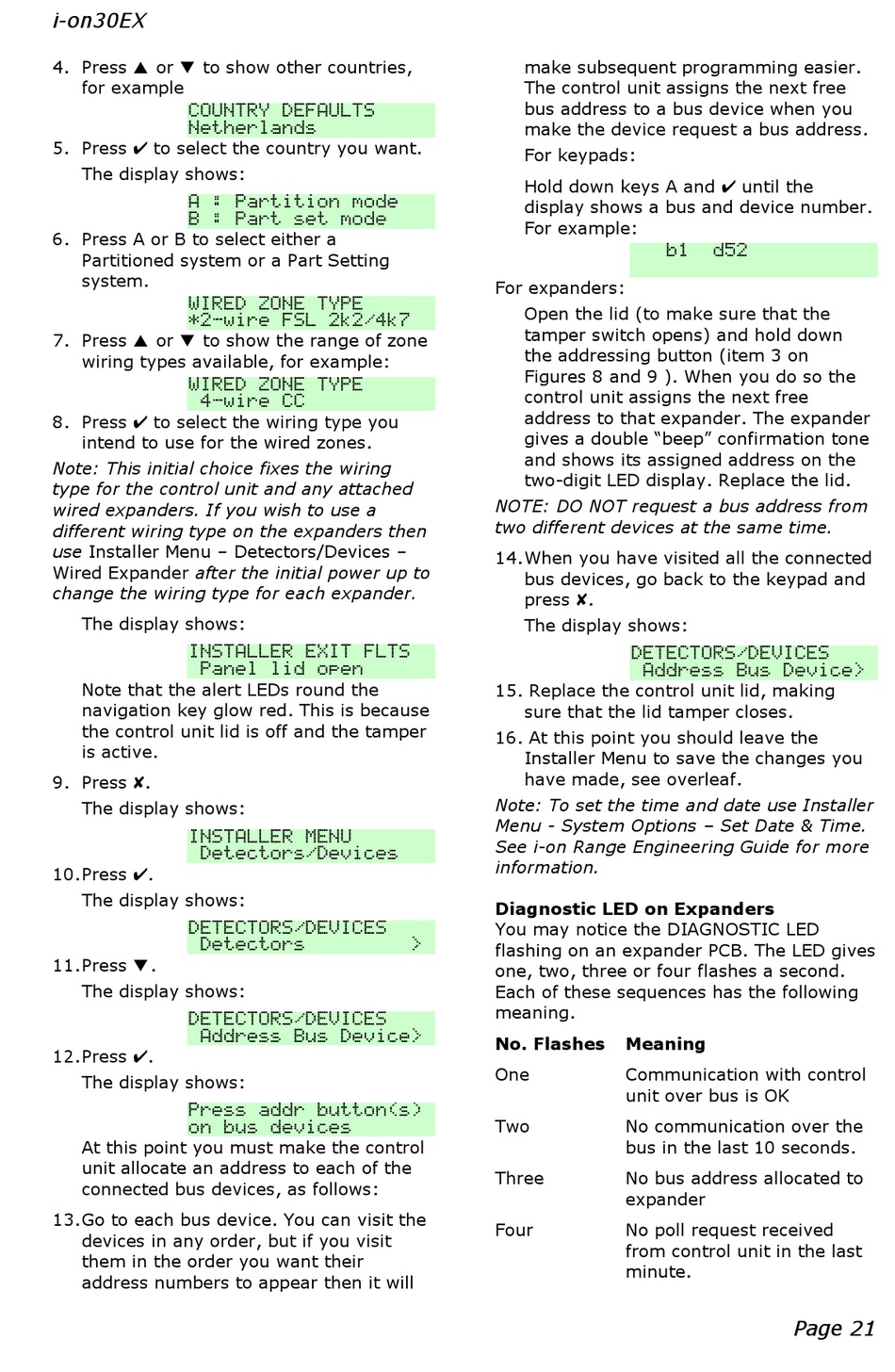

4. Press  or  to show other countries,
for example


5. Press  to select the country you want.
The display shows:


6. Press A or B to select either a
Partitioned system or a Part Setting
system.


7. Press  or  to show the range of zone
wiring types available, for example:


8. Press  to select the wiring type you
intend to use for the wired zones.
Note: This initial choice fixes the wiring
type for the control unit and any attached
wired expanders. If you wish to use a
different wiring type on the expanders then
use Installer Menu – Detectors/Devices –
Wired Expander after the initial power up to
change the wiring type for each expander.
The display shows:


Note that the alert LEDs round the
navigation key glow red. This is because
the control unit lid is off and the tamper
is active.
9. Press .
The display shows:


10. Press .
The display shows:


11. Press .
The display shows:


12. Press .
The display shows:


At this point you must make the control
unit allocate an address to each of the
connected bus devices, as follows:
13. Go to each bus device. You can visit the
devices in any order, but if you visit
them in the order you want their
address numbers to appear then it will
make subsequent programming easier.
The control unit assigns the next free
bus address to a bus device when you
make the device request a bus address.
For keypads:
Hold down keys A and  until the
display shows a bus and device number.
For example:


For expanders:
Open the lid (to make sure that the
tamper switch opens) and hold down
the addressing button (item 3 on
Figures 8 and 9 ). When you do so the
control unit assigns the next free
address to that expander. The expander
gives a double "beep" confirmation tone
and shows its assigned address on the
two-digit LED display. Replace the lid.
NOTE: DO NOT request a bus address from
two different devices at the same time.
14. When you have visited all the connected
bus devices, go back to the keypad and
press .
The display shows:


15. Replace the control unit lid, making
sure that the lid tamper closes.
16. At this point you should leave the
Installer Menu to save the changes you
have made, see overleaf.
Note: To set the time and date use Installer
Menu - System Options – Set Date & Time.
See i-on Range Engineering Guide for more
information.
Diagnostic LED on Expanders
You may notice the DIAGNOSTIC LED
flashing on an expander PCB. The LED gives
one, two, three or four flashes a second.
Each of these sequences has the following
meaning.
No. Flashes Meaning
One Communication with control
unit over bus is OK
Two No communication over the
bus in the last 10 seconds.
Three No bus address allocated to
expander
Four No poll request received
from control unit in the last
minute.
