Cooper Security i-on30EX Installation Manual page 11

i-on30EX
1
13
7
8
1
10
12
2
3
1
5
1
1. Cable entry.
2. Fixing holes.
6
3. Addressing button.
4. Bus cable connector.
7
5. Central keyhole.
6. Outputs.
1
7. Aux power.
9
8. Lid tamper.
9. Bus address display.
10. Zone connectors.
10
11. Sounder.
12. Bus termination jumper.
13. Engineering keypad connector
11
2
4

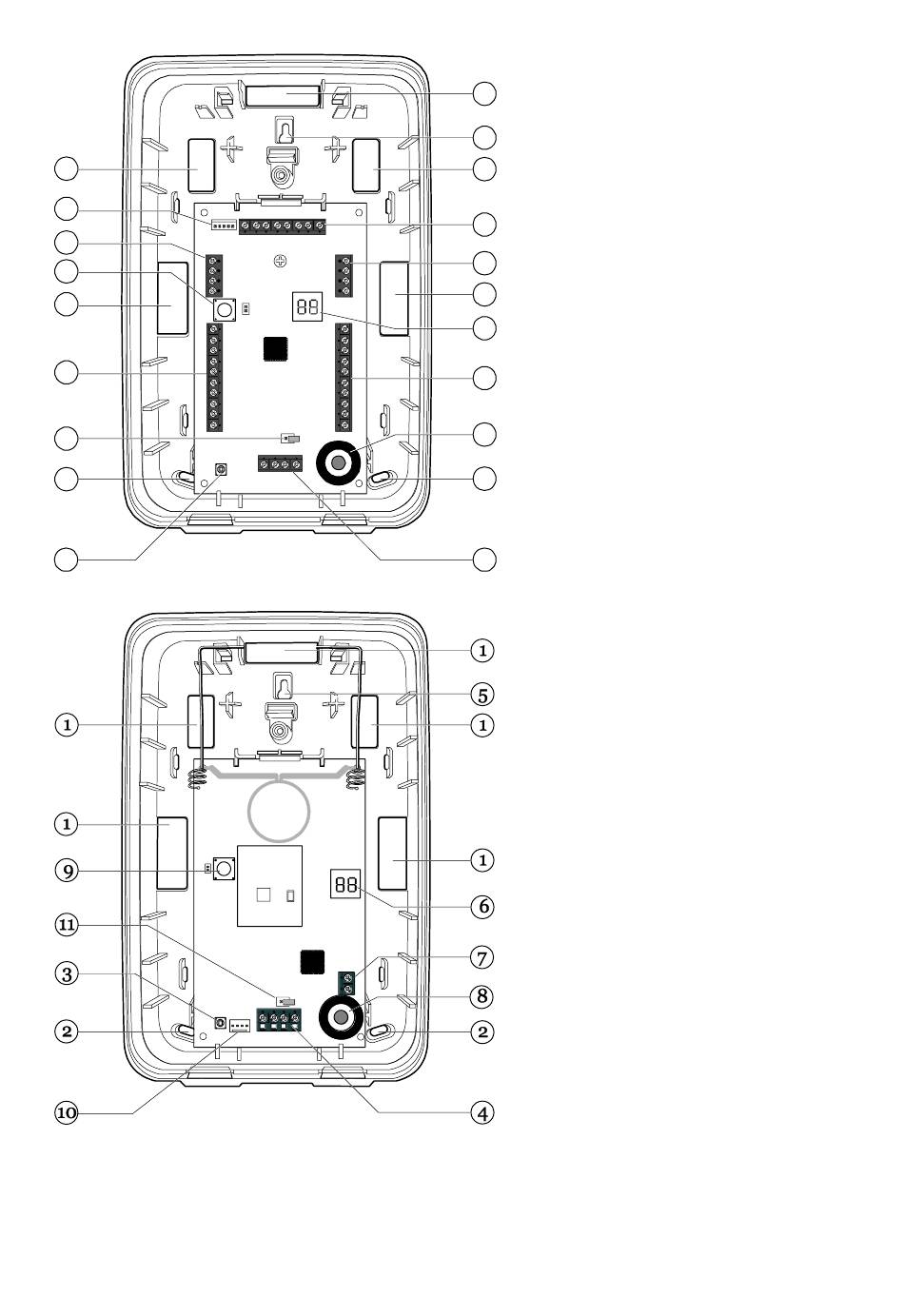

Figure 8 Wired Expander
1. Cable entry.
2. Fixing holes.
3. Addressing button.
4. Bus cable connector.
5. Central keyhole.
6. Bus address display.
7. Loudspeaker terminals.
8. Sounder.
9. Lid tamper.
10. Engineering keypad connector
11. Bus termination jumper.
Figure 9 Radio Expander
Page 7
