Manufacturing Test

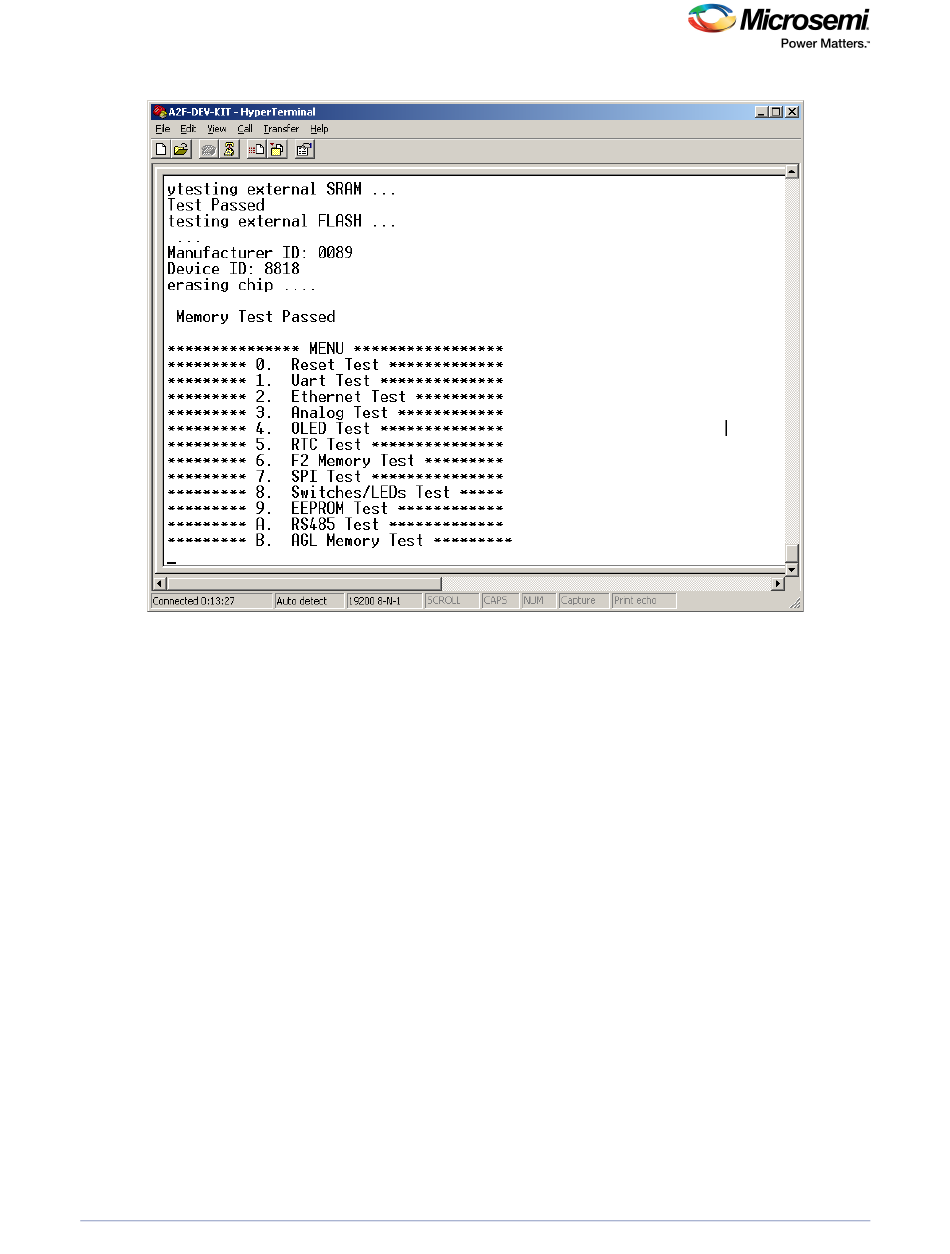

Figure 70 • AGL Test Passed
9.3

A2F-EVAL-KIT-2 Board Failures

All Tests outlined in
PASSED being printed on the terminal. If this does not happen, or the words TEST FAILED are printed,
the test has failed.
If the A2F-EVAL-KIT-2 board fails any of the tests outlined in
page 54, the board being tested is not functional.
Running the A2F-EVAL-KIT-2 Board Test,
UG0209 User Guide Revision 7.1
page 54 should result in the words TEST
Running the A2F-EVAL-KIT-2 Board Test,
76
