2-5 Main Memory Configuration

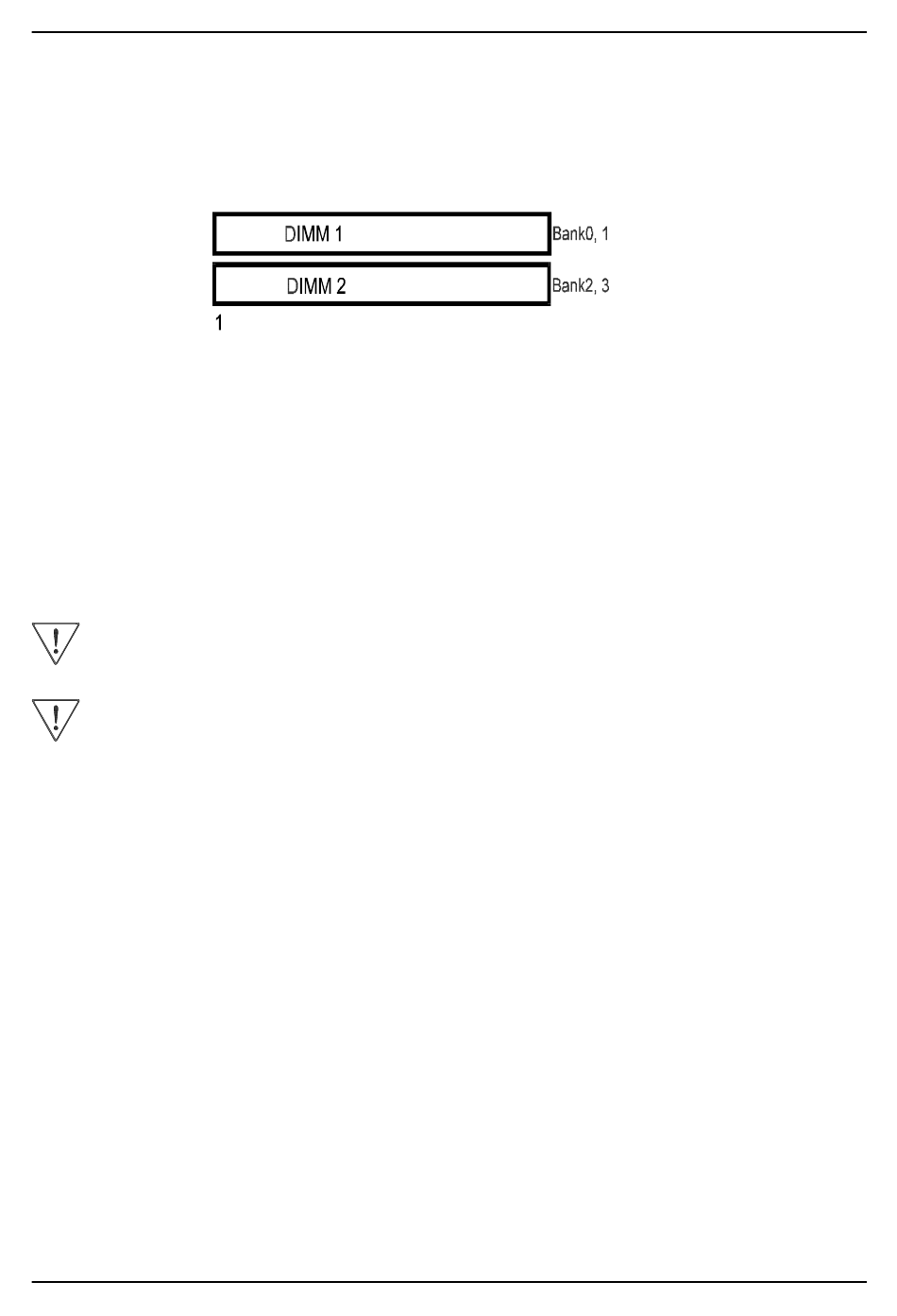

The DRAM memory system consists of two banks and the memory size ranges from
16~1GBytes. It does not matter which bank you want to install first.
DRAM Specifications
DIMM type:
Module size:
Parity:
This mainboard supports 3.3v, unbuffered, 4-clock, SDRAM DIMM only.
Buffered, 5V, or 2-clock SDRAM DIMMs should not be used.
Due to loading anomalies, using DIMM with an 'n x 4' DRAM base on this
mainboard is not recommended. For example, a DIMM that uses sixteen
16Mb x 4 devices should not be used.
18
3.3V, unbuffered, registered, 64/72-bit SDRAM with SPD*
Single/double-side 16/32/64/128/256/512MBytes
Either parity or non-parity
