Over-Ride Power Button; Blinking Led In Suspend Mode - CHAINTECH 7AIV2 Manual

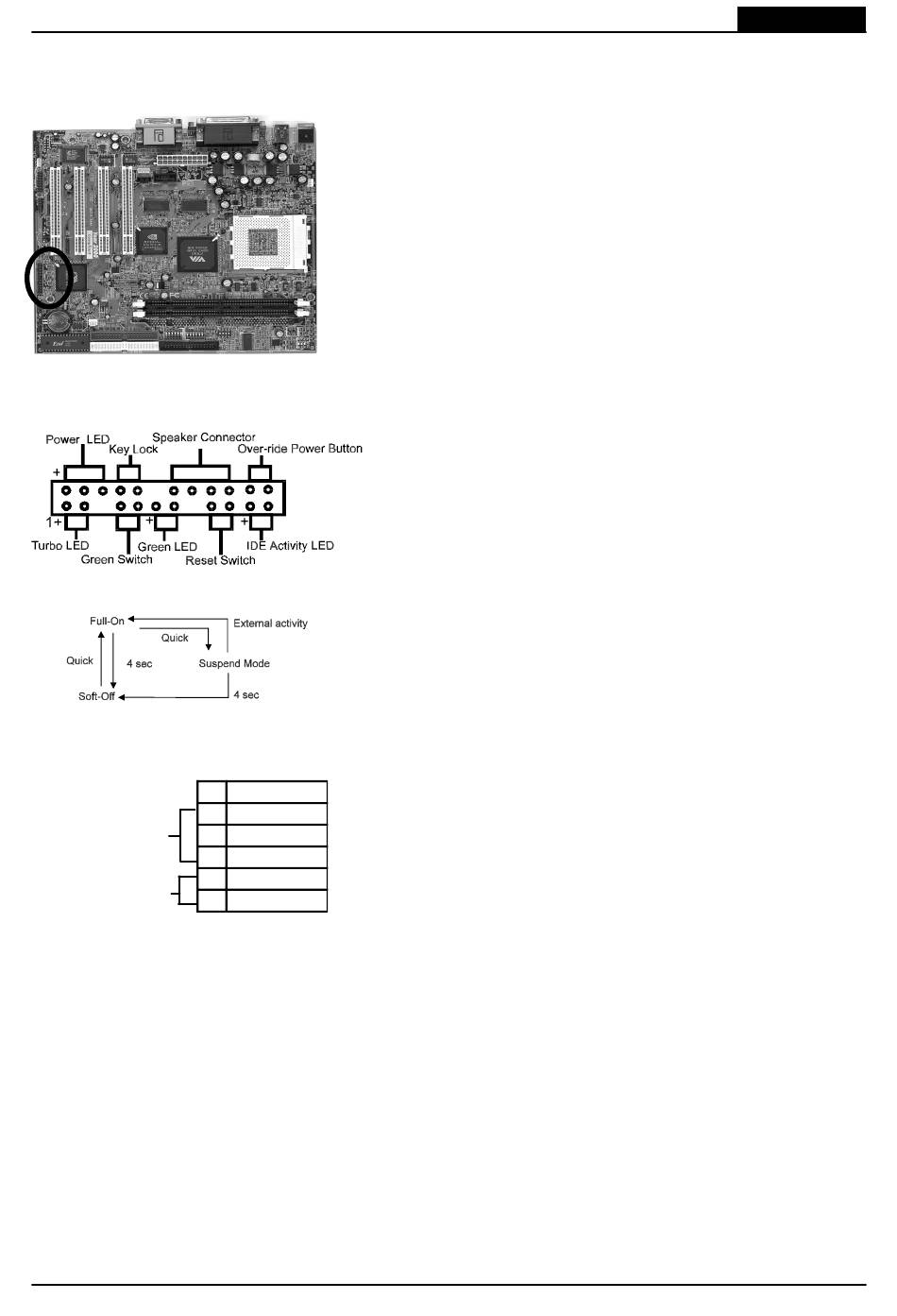

Front Panel Connector Set (CN10) A through G

Over-ride Power Button

Operation
Pin
Power Indicator LED
Keyboard Lock

Blinking LED in Suspend Mode

While in Suspend mode, the LED light on the front panel of your computer will
flash. Suspend mode is entered by pressing the Override Power Button, pushing
the Green button on your ATX case, or enabling the Power Management and Suspend
Mode options in BIOS's Power Management menu. (See section 3-4)
Definition
1 +5V DC
2 No Connection
3 Ground
4 Key Lock
5 Ground
A. Over-ride Power Button Connector
The power button on the ATX chassis can be used
as a normal power switch as well as a device to
activate Advanced Power Management Suspend
mode. This mode is used for saving electricity
when the computer is not in use for long periods of
time. The Soft-OFF by PWR-BTTN function in
BIOS's Power Management Setup menu must be set
to "Delay 4 Sec." to activate this function. (See
section 3-5)
When the Soft-OFF by PWR-BTTN function is
enabled, pushing the power button rapidly will
switch the system to Suspend mode. Any occurrence
of external activities such as pressing a key on the
keyboard or moving the mouse will bring the
system back to Full-On. Pushing the button while
in Full-On mode for more than 4 seconds will
switch the system completely off. See Over-ride
Power Button Operation diagram.
B. Power Indicator LED Connector
The power indicator LED shows the system's
power status. It is important to pay attention to
the correct cables and pin orientation (i.e., not to
reverse the order of these two connectors.)
Hardware Setup
11
