INSTRUCTIONS FOR USE
Shower and commode transport chair 3in1
Product code: MASTER-TIM
1. Characteristics
Shower and commode transport chair is made of powder coated
aluminum frame. It features flip-up armrests for easy entry and exit for
people with reduced mobility. It is equipped with a seat with wedge
made of PU, four swivel 5" wheels with brakes, tiltable footrests and a
sanitary container. The construction of the chair makes it possible to
slide over the toilet seat.
The set includes: frame, seat, four swivel 5" wheels with brakes, four
C-type mounting buckles, backrest with armrests, two backrest locking
pins, right and left footrest with footplate, sanitary container with lid.

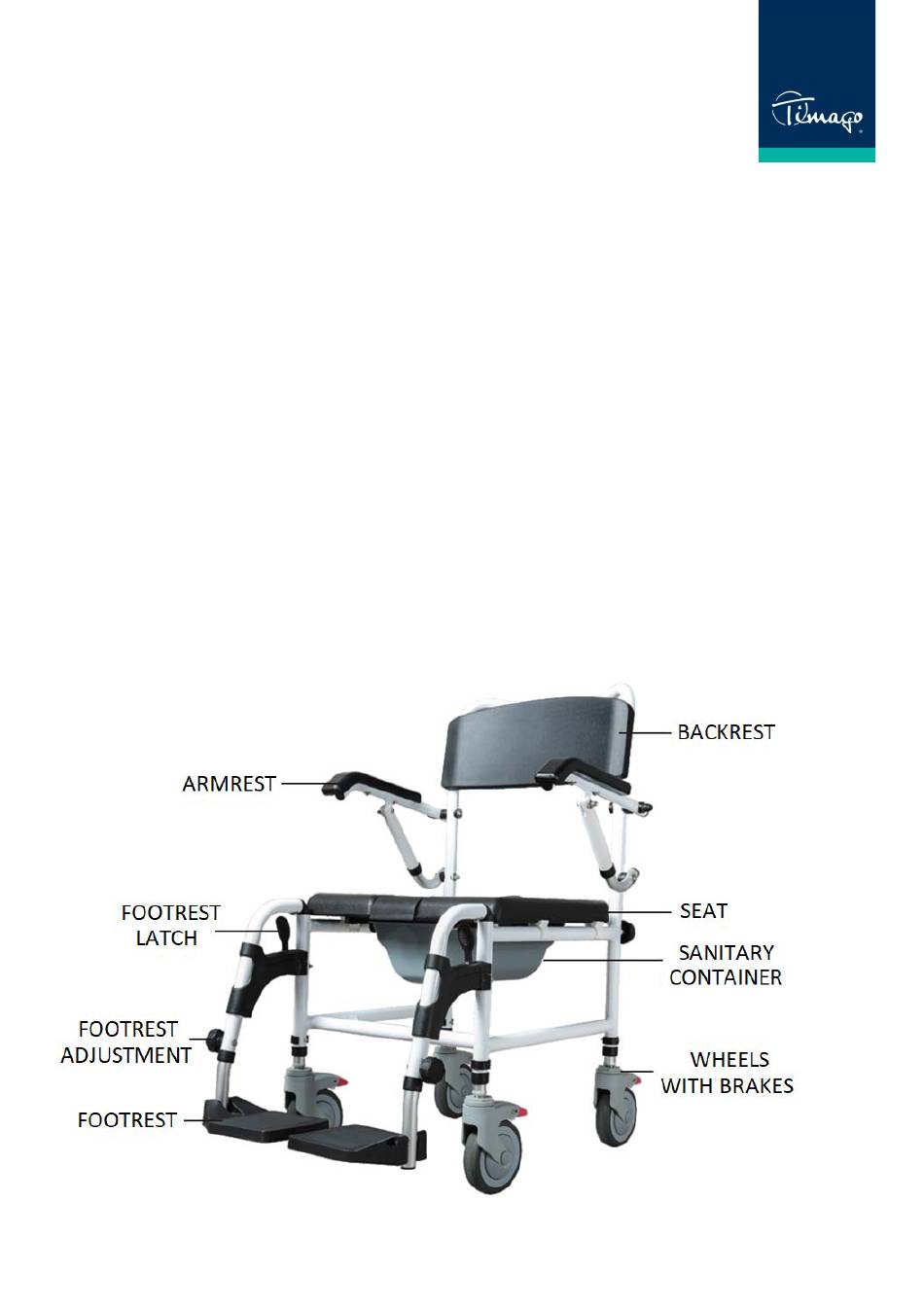

Elements of the chair:
Strona 1 z 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Timago MASTER-TIM
Summary of Contents for Timago MASTER-TIM
- Page 1 INSTRUCTIONS FOR USE Shower and commode transport chair 3in1 Product code: MASTER-TIM 1. Characteristics Shower and commode transport chair is made of powder coated aluminum frame. It features flip-up armrests for easy entry and exit for people with reduced mobility. It is equipped with a seat with wedge made of PU, four swivel 5"...
- Page 2 2. Application Shower and commode transport chair is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility. The chair is suitable for indoor use only. The chair may only be used with the assistance of an accompanying person. The chair functions as a shower and commode transport chair owing to the sanitary container located under the seat and four swivel castors.
- Page 3 Figure 6 Figure 7 Figure 5 Figure 1. Install the four wheels into the main frame. Align the holes at the desired height and lock each wheel with a C-type buckle. Note! All wheels must be set at the same height. Figure 2.
- Page 4 CHAIR HANDLING • Check the condition of the brakes, construction and castors. Check the proper assembly of the components and their adjustment. • Before using, make sure that the chair width matches the user, as the chair is not equipped with width adjustment. •...
- Page 5 150 kg Frame color white 5. Notes Timago International Group does not bear responsibility of improper use of the chair and failure to comply safety regulations. 6. Cleaning and maintenance Carry out the maintenance of the chair components regularly: • The seat can be cleaned with a damp cloth and cold or warm water, without the use of detergents.
- Page 6 Medical device Please read the Note instruction The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Strona 6 z 8...
- Page 7 Strona 7 z 8...
- Page 8 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com Rev. II, date 30.06.2022 Strona 8 z 8...
