INSTRUCTIONS FOR USE
Tilt-in-space shower and commode transport chair 3in1
Product code: MASTER-TIM PLUS
1. Characteristics
Shower and commode transport chair is made of powder coated aluminum
frame. It features flip-up armrests for easy entry and exit for people with
reduced mobility and seat & backrest angle adjustment. It is equipped with
a seat with wedge made of PU, headrest, four swivel 5" wheels with brakes,
tiltable footrests and a sanitary container. The construction of the chair
makes it possible to slide over the toilet seat.
The set includes: frame, seat, headrest, headrest tube, two headrest
locking knobs, four swivel 5" wheels with brakes, four C-type wheel
mounting buckles, backrest with armrests, two armrest extensions, two
backrest locking knobs, right and left footrest with footplate, sanitary
container with lid.

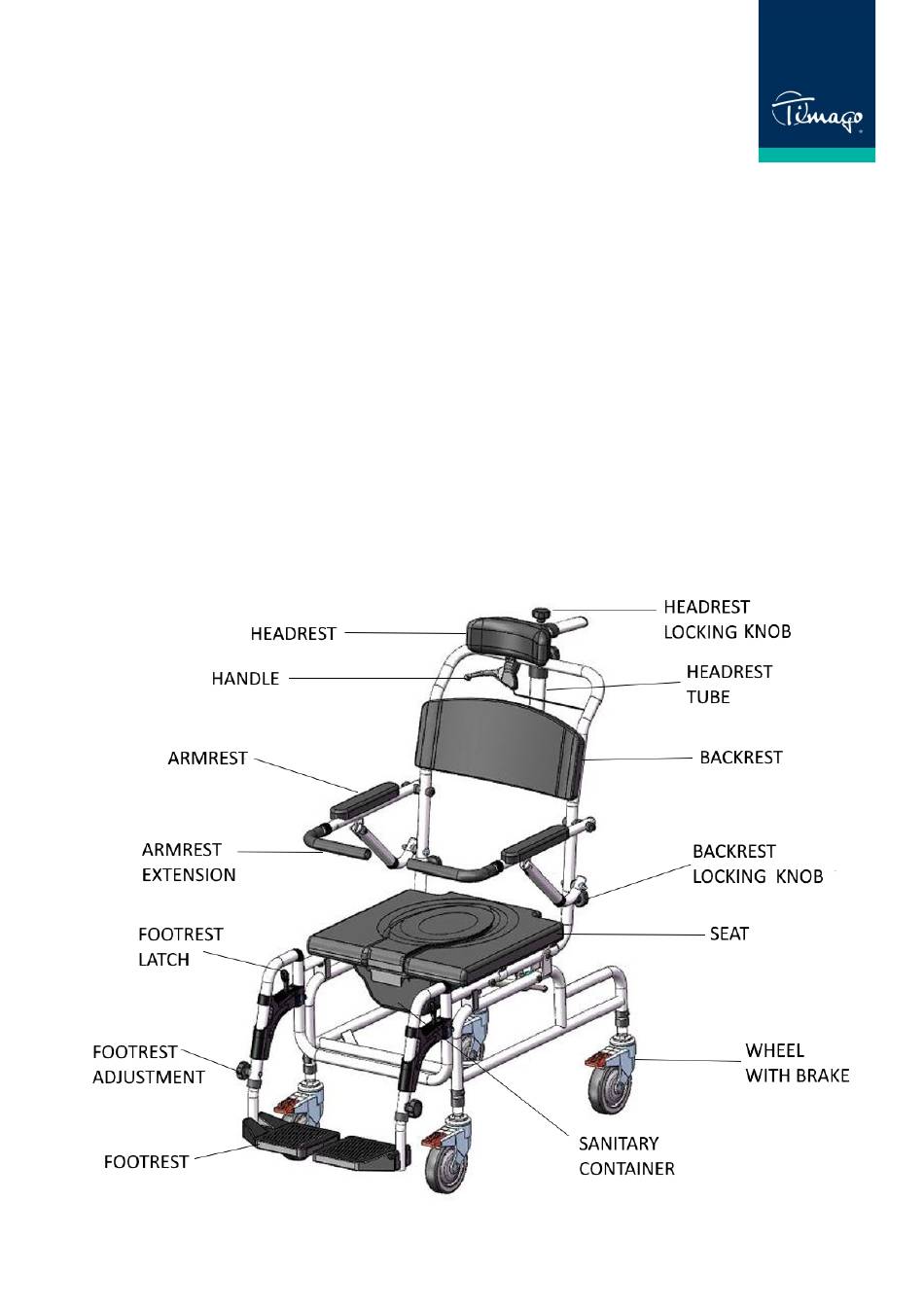

Elements of the chair:
1 of 8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Timago MASTER-TIM PLUS
Summary of Contents for Timago MASTER-TIM PLUS
- Page 1 INSTRUCTIONS FOR USE Tilt-in-space shower and commode transport chair 3in1 Product code: MASTER-TIM PLUS 1. Characteristics Shower and commode transport chair is made of powder coated aluminum frame. It features flip-up armrests for easy entry and exit for people with reduced mobility and seat &...
- Page 2 2. Application Shower and commode transport chairs are designed for people who have problems with unassisted movement and for patients with dysfunctions and reduced mobility. The chair is suitable for indoor use only. The chair may only be used with the assistance of an accompanying person. The chair functions as a shower and commode transport chair owing to the sanitary container located under the seat and four swivel castors.
- Page 3 Figure 2. Install the four wheels into the main frame. Align the holes at the desired height and lock each wheel with a C-type buckle. The chair has a 4-step height adjustment Note! All wheels must be set at the same height. Figure 3.
- Page 4 CHAIR HANDLING • Check the condition of the brakes, construction and castors. Check the proper assembly of the components and their adjustment. • Before using, make sure that the chair's width matches the user, as the chair is not equipped with width adjustment. •...
- Page 5 • Armrest extensions can be fixed/removed at any time to make it easier to get on or off the chair. ANGLE ADJUSTMENT OF SEAT & BACKREST • Before adjusting the angle, it is essential to lock the brakes. • Press and hold the adjustment handle, then set the desired angle of the seat &...
- Page 6 5. Notes Timago International Group does not bear responsibility for improper use of the chair and failure to comply with safety regulations. 6. Cleaning and maintenance Carry out the maintenance of the chair components regularly: • The seat can be cleaned with a damp cloth and cold or warm water, without the use of detergents.
- Page 7 Note Please read the instruction The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! 7 of 8...
- Page 8 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com 09/2023(I) 8 of 8...
