INSTRUCTIONS FOR USE
Aluminium wheelchair
Product code: FS 908LQ / FS 908LJQ
1. Characteristics
The wheelchair is made of light aluminium frame reinforced with
double cross bar. It possesses nylon-cotton seat with additional
cushion and belt for the user. Flip-up armrests are made in profiled
version. The wheelchair is equipped with quick release function and
anti-tip wheels. Footrests are available in a swing away version. The
wheelchair is supplied with pneumatic rear wheels (22'') with
aluminium handrim and solid rubber front wheels 8'' in diameter. For
patients after amputations, there is a possibility to adjust the centre of
gravity on the front wheels. The model FS 908LJQ is additionally
equipped with attendant brakes.
The set includes:
• Frame with seat
• Right footrest with footplate
• Left footrest with footplate
• Protective strap
• Pump
• Set of keys for wheelchair
• assembly/dismantling

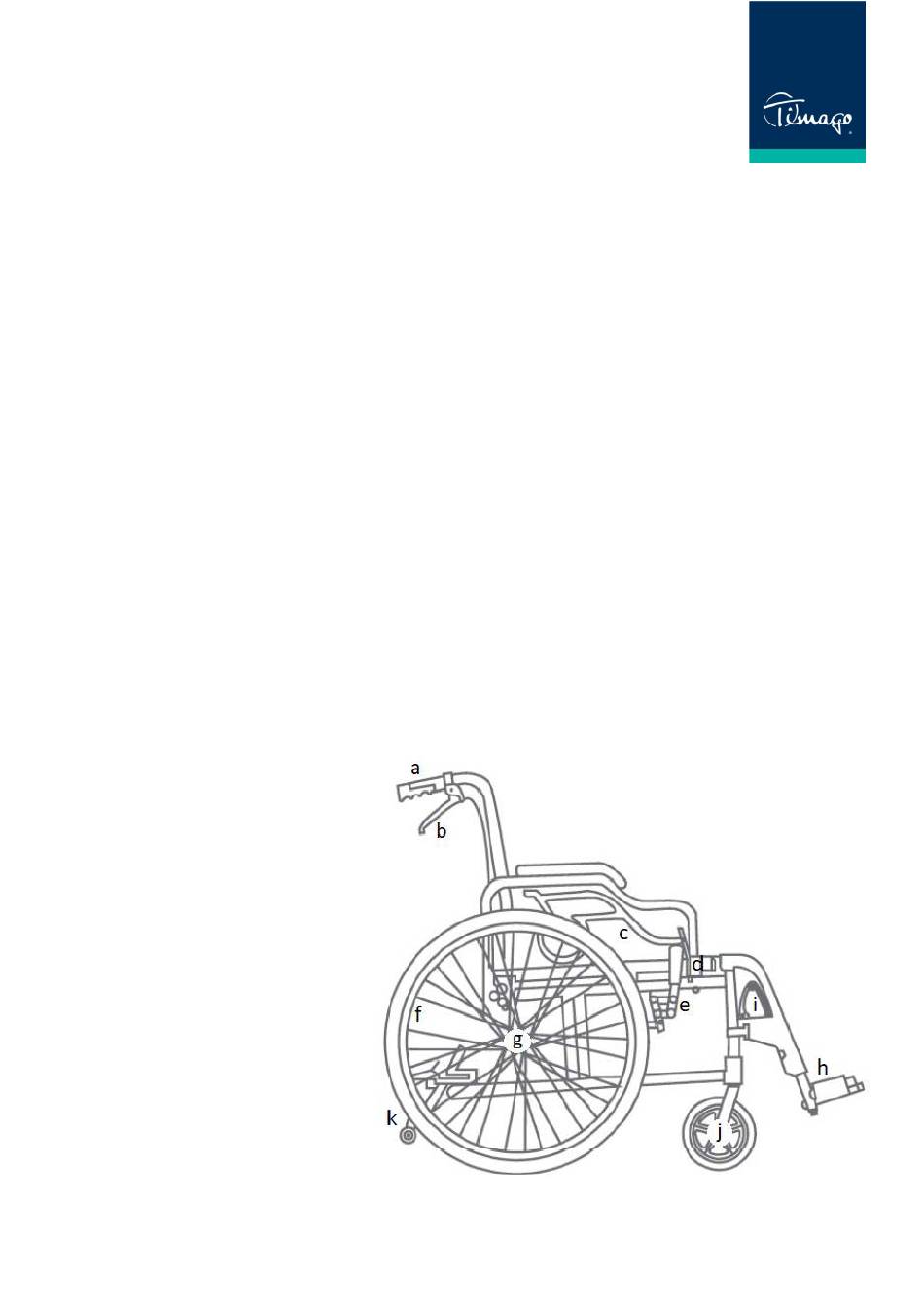

Elements of the wheelchair:
a. Hand grip
b. Attendant brake
c. Armrest
d. Locking pin of the
armrest
e. Wheel lock
f. Handrim
1
Advertisement
Related Manuals for Timago FS 908LQ
Summary of Contents for Timago FS 908LQ
- Page 1 INSTRUCTIONS FOR USE Aluminium wheelchair Product code: FS 908LQ / FS 908LJQ 1. Characteristics The wheelchair is made of light aluminium frame reinforced with double cross bar. It possesses nylon-cotton seat with additional cushion and belt for the user. Flip-up armrests are made in profiled version.
- Page 2 g. Quick release h. Footrest i. Footrest lever j. Adjustment of the centre of gravity k. Anti-tip wheels 2. Application The wheelchair is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility. This self propelled wheelchair can also be pushed by the accompanying person.
-
Page 3: Wheel Locks
Note! Do not use the wheelchair without protective strap. Step 5. Checking the assembly of wheels Lift the wheelchair slightly and spin the right wheel and then the left one by pulling the handrims and check if the wheels spin properly. On completion of the above activities, the wheelchair is ready to use. - Page 4 • In order to apply breaking, grab and squeeze the lever of the brake and in order to release the brake, drop the levers. Perform this activity smoothly and with appropriate force. • The brakes are equipped with parking lock. To engage them, grab the brake lever, squeeze it and pull the locking element (located at the brake handle).
- Page 5 30 cm Frame colour silver 5. Notes Timago International Group does not bear responsibility of improper moving in the wheelchair, failure to comply safety regulations and misuse. 6. Cleaning and maintenance Carry out the maintenance of the wheelchair components regularly:...
- Page 6 • The upholstery and the cushion can be cleaned with damp (not wet) cloth and cold or warm water, without the use of detergents. Difficult stains can be cleaned with a sponge. Dry away from heat sources. • Plastic elements should be cleaned with damp cloth possibly with the use of appropriate detergents for plastic elements.
- Page 7 Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11...
