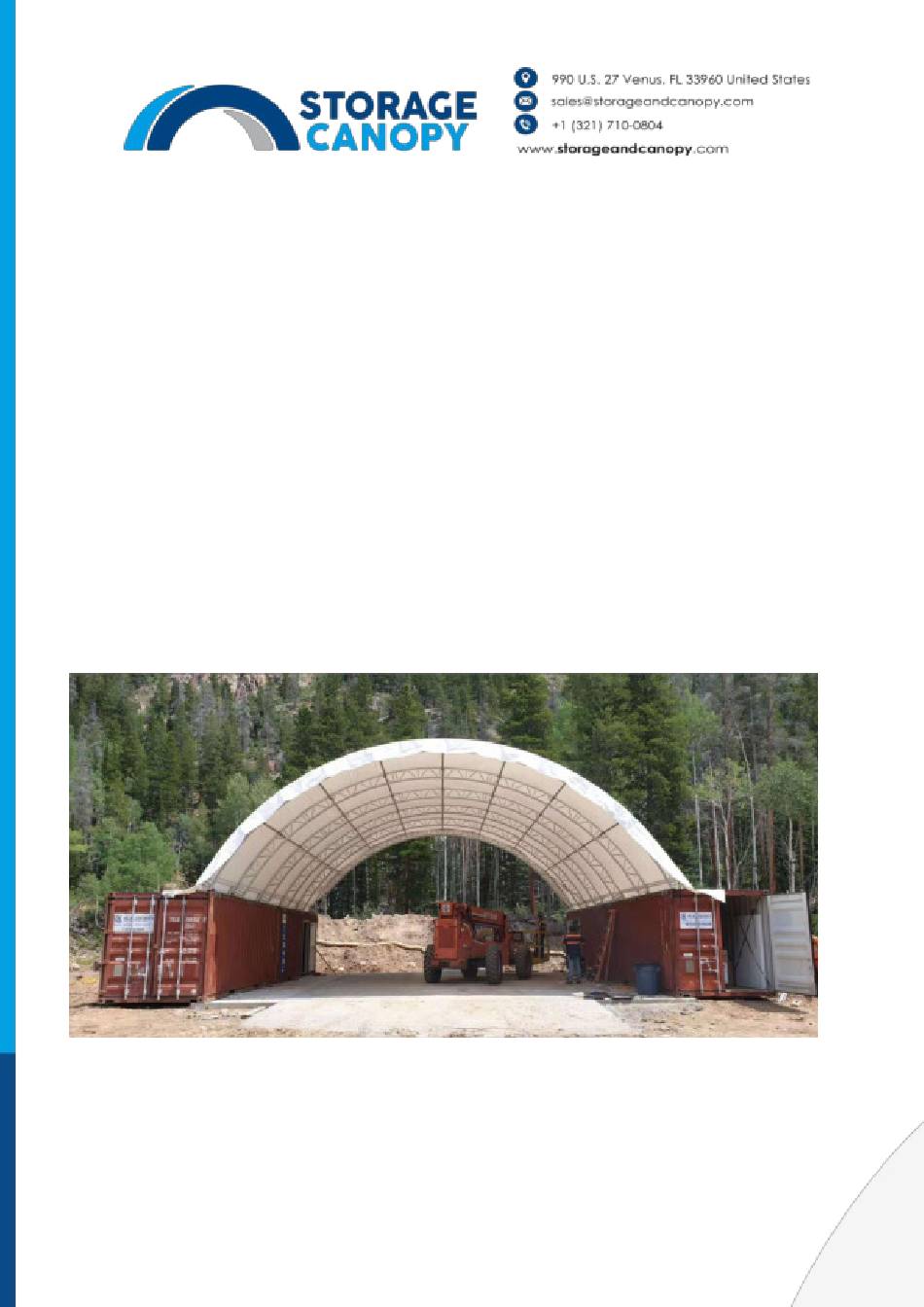

- Page 1 Shipping Container Roof Double Truss Round Style Model# C3340DTR 33’x40’x12’ (8’ arch space) Assembly Instructions...
-
Page 2: Equipment List
Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment... - Page 3 YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter.
- Page 4 ANCHORING THE CONTAINER Make sure you have: Welder. Cement. Four 3” x 3” x 6 feet ¼” Square steel angle As shown in the diagram 1, make a 3 ft deep hole right beside one of the front and opposite rear corners of the container, in which the 6ft square steel will be installed.
- Page 5 Highly Recommended 1. All container canopy covers need to be removed during windstorm of 60 mph, leaving frame assembled. Customer responsibility. 2. All container canopy covers need to be removed before a snowstorm of 1-2 inches (for single truss Shipping container roofs) and 3-4 inches (for double truss Shipping container roofs), leaving the frame assembled.
-
Page 6: Parts List
Parts List Part Qty/ Description Code Roof Top Truss Arch Upper Truss Arch Lower Truss Arch Purlin Support Tube Base Plate (four corners with winch) Base Plate (inner with winch) Lower Tensioning Tube for Roof Cover, (4+1) 2 sets pcs/set Tube Clip with bolt M10x50 for support tube No.5 Bolt M8x70 for swaged tube... - Page 7 Roof Cover Duct Tape Expansion Bolt...
-
Page 8: Installation Process
INSTALLATION PROCESS Note: Make sure to fix the container firmly before installing the shelter. A—BASE PLATES INSTALLATION Please refer to the diagram (Figure 1) to mark the position of base plates Figure 1 1. The measurement is done as the above figure 1 showing. Referring to the above diagram and confirm the place of base plates. - Page 9 B—FRAME INSTALLATION 1. Arch Installation: Find Truss Arches (No.1, 2, 3) and Base Plate (No.6 &7) and connect them by Bolt M8x70 (No.10).
- Page 10 Purlins and Support Tubes 2. When finish installing all arches, lift the arch to top of containers, and then adjust the distance between arches. Weld the base plate to container firmly. 3. Install Purlin (No.4) by Carriage Bolt M10x80 (No.11) and then the third arch and Purlins. In this turn, one arch and then purlin tubes.
- Page 11 C—COVER INSTALLATION NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air. 1.
- Page 12 Roof Cover Installation Now your assembly is completed.
